Stock Code: RJX8M
| General Characteristics | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|

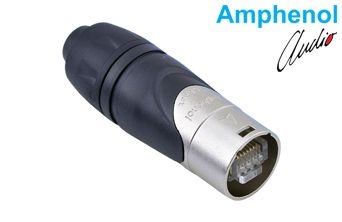

| Product Type | XLRnet XLR–RJ45 cable plug housing (male) | ||||||||||
| Series | XLRnet | ||||||||||
| Contact Layout | 8 – RJ45 cable housing | ||||||||||
| Gender | M – Male cable plug | ||||||||||
| Termination | Preassembled RJ45 cable (not supplied) | ||||||||||
| Packaging | Individual bag (bulk pack option: RJX8M BULK) | ||||||||||
| Key Features | Designed for preassembled RJ45 cables; no special tools required for installation; cost effective method for harsh environments; nickel or black housings and coloured boots | ||||||||||
| Climatic Characteristics | |||||||||||
| Protection Class | IP40 | ||||||||||
| Operating Temperature | -25°C ~ +75°C (-13°F ~ +167°F) | ||||||||||
| Environmental | Complies with EU RoHS 2 Directive 2011/65/EU | ||||||||||
| Mechanical Characteristics | |||||||||||
| Insertion and Withdrawal Force | 10 N – 20 N | ||||||||||
| Mechanical Operations | 1000 mating cycles | ||||||||||
| Cable O.D. Range | 5 or 8 mm (0.20" or 0.31") | ||||||||||
| Weight | 26 g (0.057 lb) | ||||||||||
| Dimensions | |||||||||||
| Overall Length (with small cable clamp) | 82.8 mm | ||||||||||
| Overall Length (with large cable clamp) | 62.9 mm | ||||||||||
| Max. Outer Diameter | Ø21.2 mm | ||||||||||
| Shell Diameter | Ø19.0 mm / Ø18.4 mm | ||||||||||
| Materials | |||||||||||
| Connector Shell (Metal) | Diecast zinc alloy | ||||||||||
| Shell Finish | Satin nickel | ||||||||||
| Boot / Backshell | UL94V-0 Noryl N190 / Valox | ||||||||||
| Boot Finish | Black | ||||||||||
| Cable Clamp | PA6 | ||||||||||
| Sleeve | Valox | ||||||||||
| Package Contents | |||||||||||

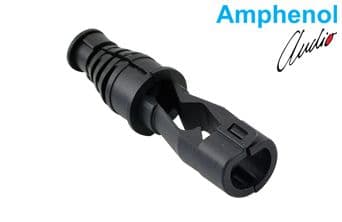

| Kit Components |
| ||||||||||
| Note | Both large and small cable clamps are packed in the same bag of the connector kit. The preassembled RJ45 cable is not included and is sold separately. | ||||||||||
