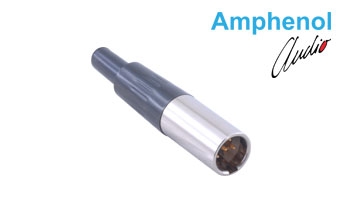

Creates a 6-pole mini XLR male link at the cable end.
This mini XLR line male plug carries a six pole connection over thin cables. A nickel plated brass shell and gold plated machined contacts take the load of broadcast and stage work.
6Pin Count
MalePlug Type
1.2 ACurrent carrying capacity
GoldContact plating
IP00Protection Grade
-30°C ~ +80°COperating Temperature
Key features
Compact cable plugThe nickel plated brass shell fits tight cable paths at 52.5 mm length and Ø10.5 mm diameter.
Gold plated machined contactsThe machined contacts hold the connection through 2000 mating cycles.
Thin wire terminationIt accepts wire up to AWG 28 – 0.38 mm² and takes printed circuit board or solder bucket connections.
Threaded couplingThe 32-3/8" UNF coupling thread locks the plug onto the mating connector.
5 mm cable entryA PVC grommet closes the 5 mm diameter cable entry.
The protection grade is IP00, so the plug has no protection against dust or water ingress.
