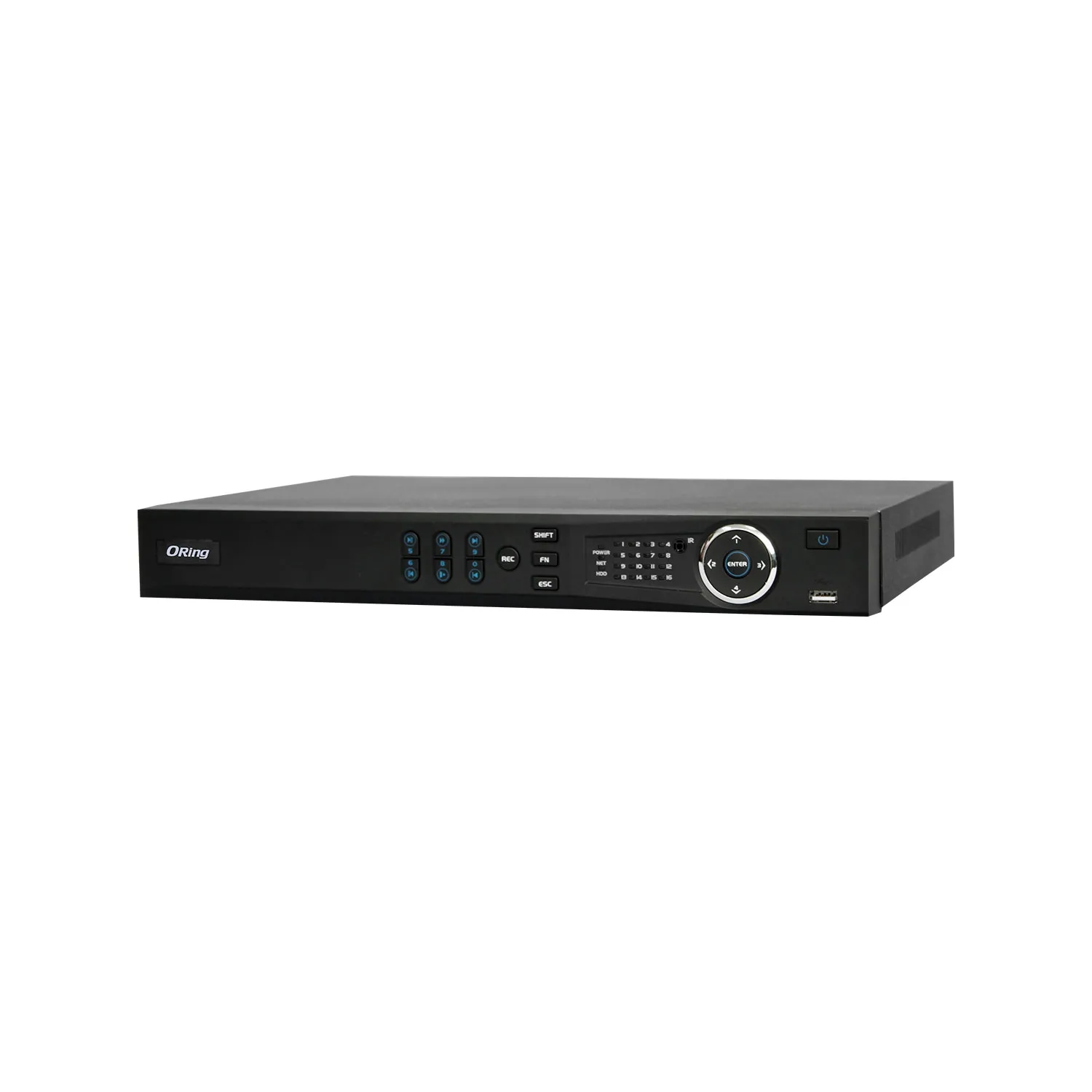

It manages 32 IP camera channels and powers 16 of them from its PoE ports. The ARM quad-core processor decodes H.265 and H.264 streams and handles 200 Mbps of incoming bandwidth.
PoE powerThe 16 PoE ports deliver a total of 130 W under the IEEE802.3at and IEEE802.3af standards.
Storage capacityThe 2 drive bays take 6 TB per disk, and ANR technology fills in camera-side footage after a network drop.
Decoding capacityIt decodes 2 channels at 4K and 8 channels at 1080P resolution at the same time.
ViewingPreview and playback reach up to 8 MP, and the HDMI and VGA outputs run simultaneously.
Alarm interface4 alarm inputs and 2 relay outputs connect external detectors to the system.
Smart videoIt separates tripwire, intrusion, scene change, face detection, people counting and heat map events.
The power figure applies with no drive installed: 13.2 W on an AC100V-240V supply.
