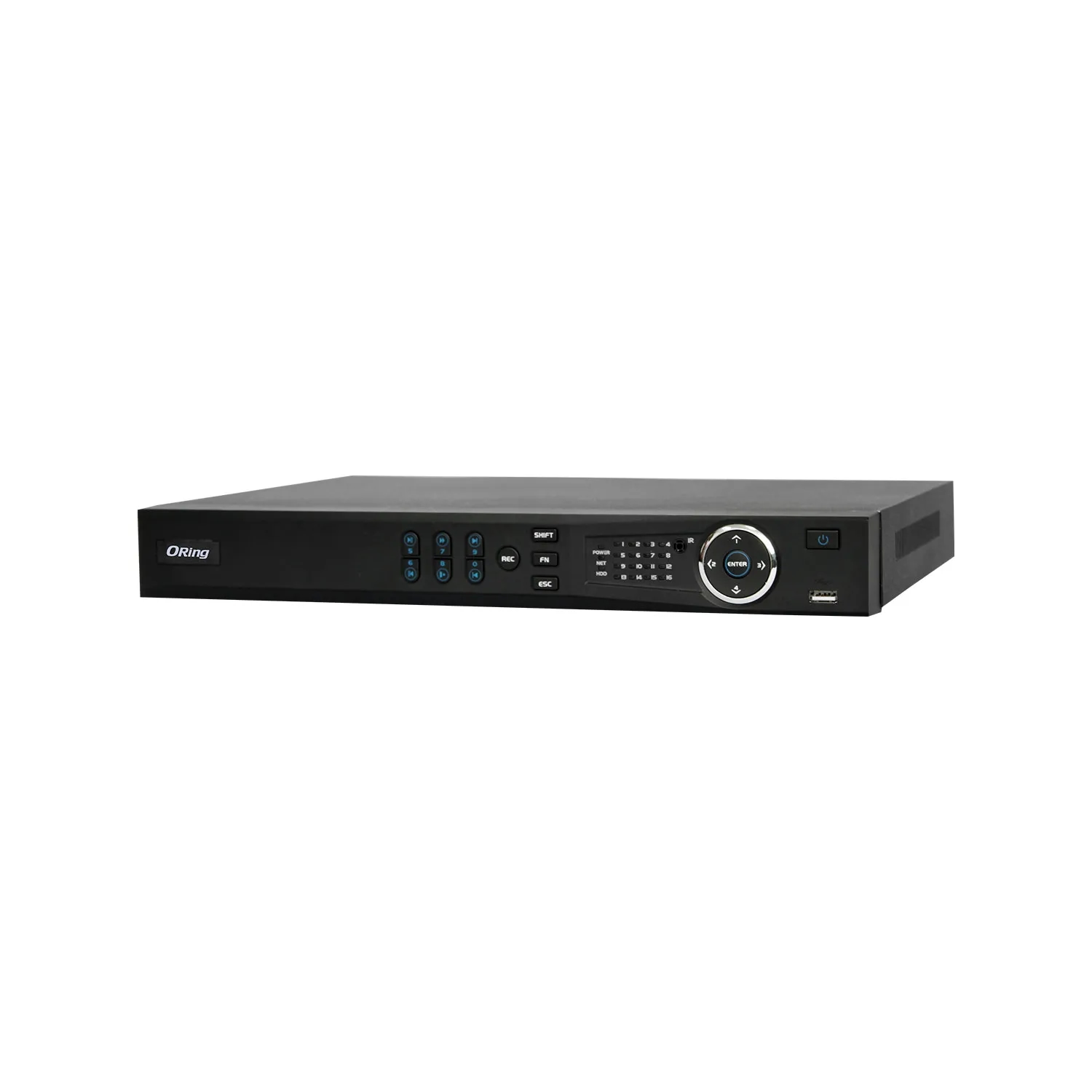

Name: 32 Kanal 1U 16 PoE 4K H.265 Pro Network Kayıt Cihazı
Brand: ORing
SKU: OR-NVR7732A-I2/16P-4K

Records IP cameras at 4K and analyzes the scene

Its quad-core embedded processor records 32 IP camera channels at up to 3840×2160 resolution. The ONVIF 2.4 compliant open architecture also accepts third-party cameras, which suits public safety and transportation installations where detail decides the outcome.

32Number of channels

2×8 TBMax. HDD capacity

H.265/H.264/MJPEG/MPEG4Video compression

3840×2160HDMI display output

1000 MbpsEthernet port

16 portsPoE

Key features

320Mbps

High recording bandwidth

Writes the streams from every channel to disk at the same time.

12MP

Detailed preview

Zooms into the image during preview and playback without losing sharpness.

16ports

PoE power

Feeds cameras over the same cable, with no separate adapter.

128users

Wide remote access

Accepts simultaneous connections from the web client and the mobile app.

2SATA III

Internal storage

Each bay takes a drive of up to 8 TB.

396zones

Motion detection grid

Sets which area triggers an alarm on a 22 × 18 zone grid.

DAY-TO-DAY USE

Setup and commissioningDefines channels from the mouse shortcut menu, while IP search lists the cameras on the network.

Recording searchScans by time, date, alarm and motion detection down to the second, then backs the selected section up to a USB device or over the network.

Safe data during outagesWhen the network drops, cameras record to their own SD cards, and the recorder pulls that footage back once the link returns.

ApplicationsPublic safety·Transportation·City centers·Educational institutions·Financial institutions·Water protection facilities

ANPR and POS integration are optional. The power figure applies with no drive installed: 15.2 W on an AC 100-240V supply.

System
Main Processor	Quad-core Embedded Processor
Operating System	Embedded Linux
Display
Interface	1 HDMI (up to 3840×2160), 1 VGA
Resolution	3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen	16CH: 1/4/8/9/16 32CH: 1/4/8/9/16/25/36
OSD	Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording
Video Detection and Alarm
Trigger Events	Recording, PTZ, Tour, Alarm Output, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection	Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm Input	4 Channel, Low Level Effective, Green Terminal Interface
Relay Output	2 Channel, NO/NC Programmable, Green Terminal Interface
Trigger Event Monitoring	N/A
Playback and Backup
Sync Playback	1/4/9/16
Search Mode	Time / Date, Alarm, MD and Exact Search (accurate to second)
Playback Function	Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode	USB Device / Network
Storage
Internal HDD	2 SATA III Ports, up to 8 TB capacity for each HDD
HDD Mode	Single
eSATA	N/A
SAS	N/A
Auxiliary Interface
Front Cover	N/A
USB	2 Ports (1 Rear USB3.0, 1 Front USB2.0)
RS232	1 Port, for PC Communication and Keyboard
RS485	1 Port, for PTZ Control
Third-party Support
Third-party Support	Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more
Audio and Video
IP Camera Input	16/32 Channel
Two-way Talk	1 Channel Input, 1 Channel Output, RCA
Recording
Compression	H.265/H.264/MJPEG/MPEG4
Resolution	12Mp/8Mp/6Mp/5Mp/4Mp/3Mp/1080P/720P/D1 etc.
Record Rate	320Mbps
Bit Rate	16kbps~20Mbps per Channel
Record Mode	Manual, Schedule (Regular (Continuous), MD, Alarm), Stop
Record Interval	1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Network
Interface	1 RJ-45 port (10/100/1000Mbps)
Ethernet Port	1 Independent 1000Mbps Ethernet Port
PoE	16 Ports (IEEE802.3af/at)
Network Function	HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search (support Dahua IP camera, DVR, NVS and etc.), P2P
Optical Fiber Interface	N/A
Max. User Access	128 users
Smart Phone	iPhone, iPad, Android
Interoperability	ONVIF 2.4, CGI Conformant
Power
Power Supply	Single, AC 100~240V, 50/60 Hz
Power Consumption	<15.2W (without HDD)
Environmental
Operating Conditions	-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions	-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction
Dimensions (W×D×H)	1U, 375mm×327.5mm×53mm (14.8" x 12.9" x 2.1")
Net Weight	2.7kg (6.0 lb) (without HDD)
Gross Weight	4kg (8.8 lb) (without HDD)
Certifications
CE	EN55022, EN55024, EN50130-4, EN60950-1
FCC	Part15 subpartB, ANSI C63.4-2014
UL	UL60950-1+CAN/CSA C22.2 No.60950-1

System

Main Processor

Quad-core Embedded Processor

Operating System

Embedded Linux

Display

Interface

1 HDMI (up to 3840×2160), 1 VGA

Resolution

3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768

Multi-screen

16CH: 1/4/8/9/16
32CH: 1/4/8/9/16/25/36

OSD

Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Alarm Output, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering

Alarm Input

4 Channel, Low Level Effective, Green Terminal Interface

Relay Output

2 Channel, NO/NC Programmable, Green Terminal Interface

Trigger Event Monitoring

N/A

Playback and Backup

Sync Playback

1/4/9/16

Search Mode

Time / Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device / Network

Storage

Internal HDD

2 SATA III Ports, up to 8 TB capacity for each HDD

HDD Mode

Single

eSATA

N/A

SAS

N/A

Auxiliary Interface

Front Cover

N/A

USB

2 Ports (1 Rear USB3.0, 1 Front USB2.0)

RS232

1 Port, for PC Communication and Keyboard

RS485

1 Port, for PTZ Control

Third-party Support

Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more

Audio and Video

IP Camera Input

16/32 Channel

Two-way Talk

1 Channel Input, 1 Channel Output, RCA

Recording

Compression

H.265/H.264/MJPEG/MPEG4

Resolution

12Mp/8Mp/6Mp/5Mp/4Mp/3Mp/1080P/720P/D1 etc.

Record Rate

320Mbps

Bit Rate

16kbps~20Mbps per Channel

Record Mode

Manual, Schedule (Regular (Continuous), MD, Alarm), Stop

Record Interval

1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Network

Interface

1 RJ-45 port (10/100/1000Mbps)

Ethernet Port

1 Independent 1000Mbps Ethernet Port

PoE

16 Ports (IEEE802.3af/at)

Network Function

HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search (support Dahua IP camera, DVR, NVS and etc.), P2P

Optical Fiber Interface

N/A

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 2.4, CGI Conformant

Power

Power Supply

Single, AC 100~240V, 50/60 Hz

Power Consumption

<15.2W (without HDD)

Environmental

Operating Conditions

-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction

Dimensions (W×D×H)

1U, 375mm×327.5mm×53mm (14.8" x 12.9" x 2.1")

Net Weight

2.7kg (6.0 lb) (without HDD)

Gross Weight

4kg (8.8 lb) (without HDD)

Certifications

EN55022, EN55024, EN50130-4, EN60950-1

FCC

Part15 subpartB, ANSI C63.4-2014

UL60950-1+CAN/CSA C22.2 No.60950-1
