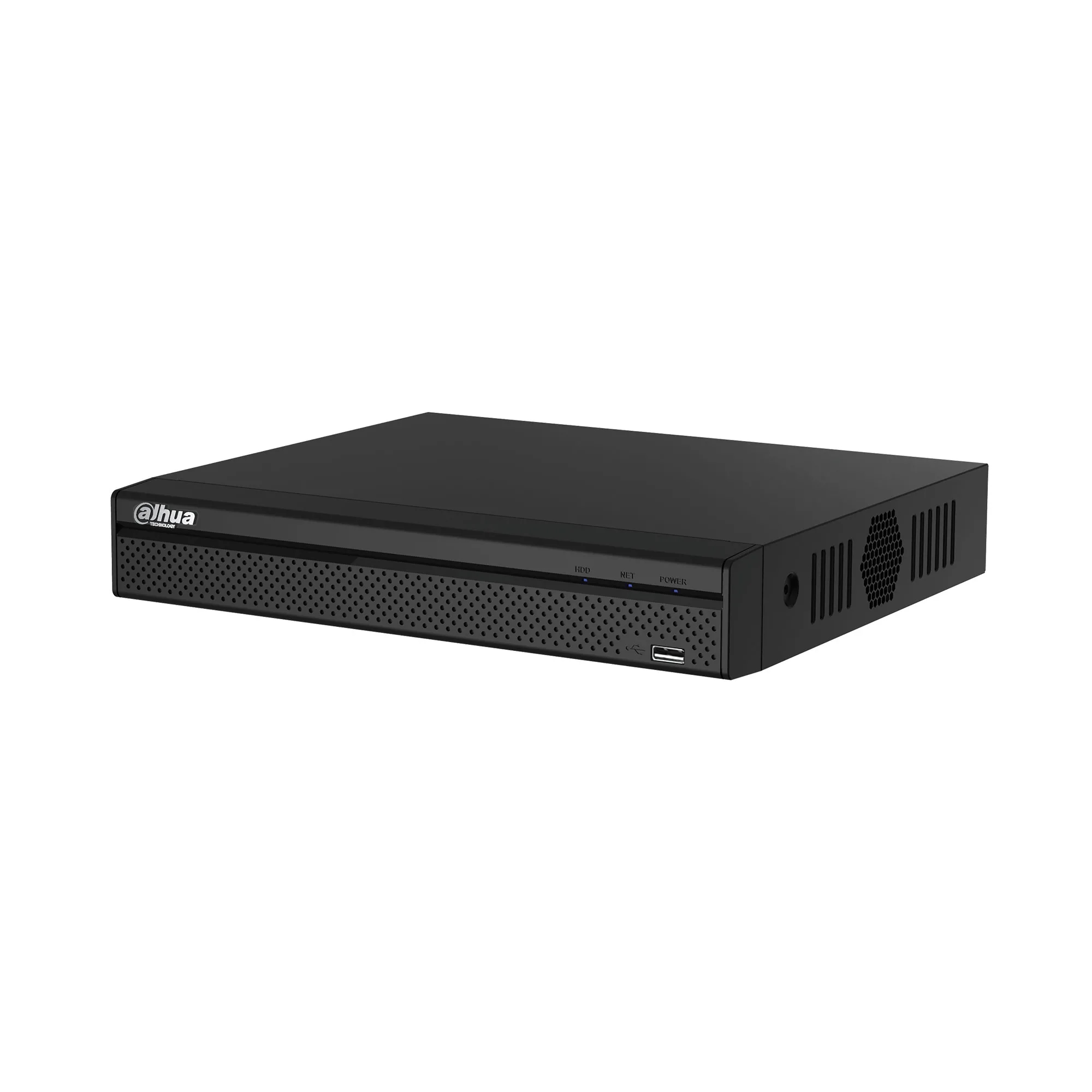

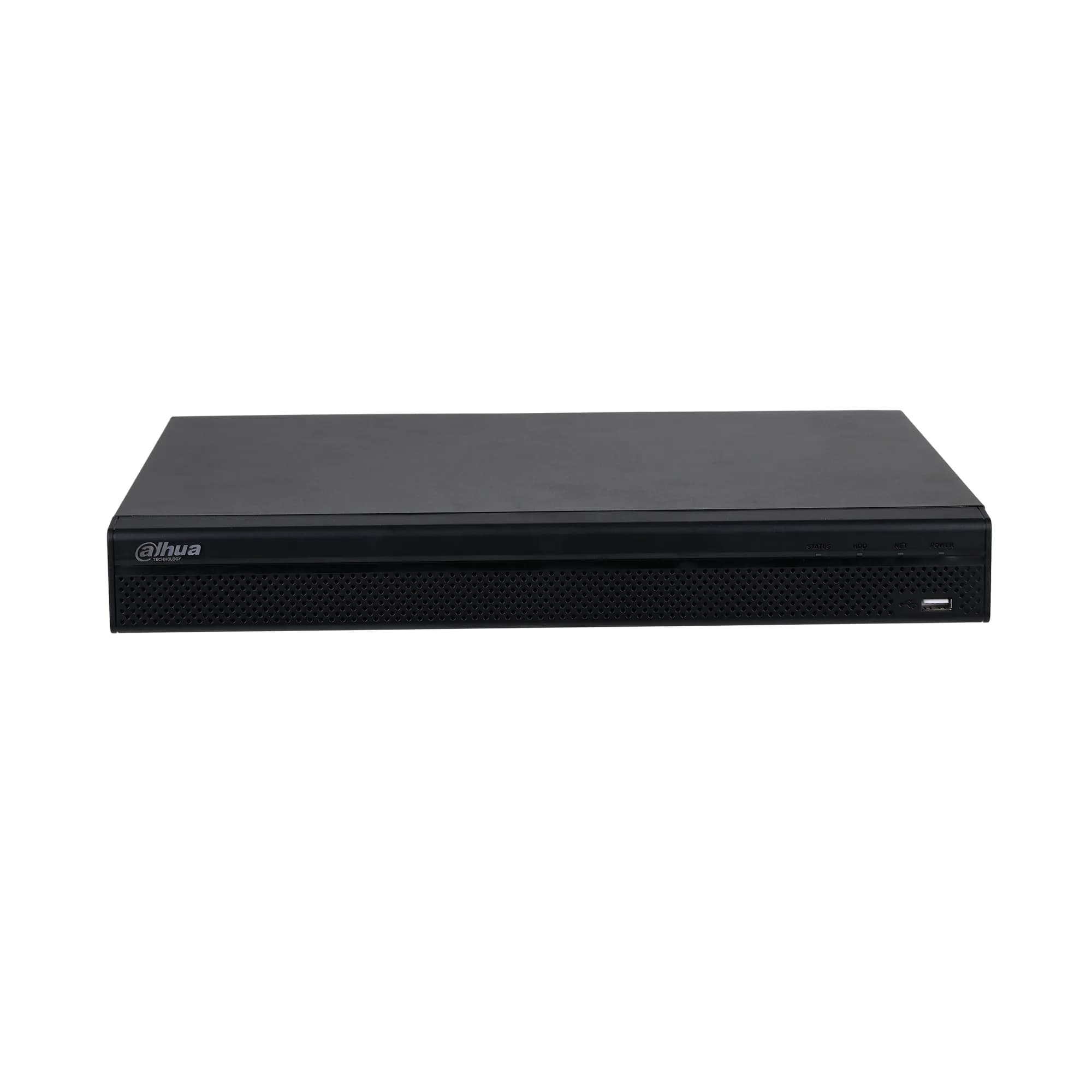

Stock Code: NVR4232-4KS2/L
| System | |
|---|---|
| Main Processor | Industrial-grade embedded processor |
| OS | Embedded Linux |
| Operation Interface | Web/operating in local GUI |
| Perimeter Protection by Camera | |
| Performance | 8 channels |
| AI Search | Search for pictures by channel, time and event type |
| Face Detection by Camera | |
| Performance | 4 channels |
| Face Attributes | 6 attributes: Gender, age, glasses, expression, mouth mask, and beard |
| AI Search | Search for pictures by channel, time and face attributes |
| SMD Plus by Camera | |
| Performance | 12 channels |
| AI Search | Search by target classification (human, vehicle) |
| Video | |
| Access Channel | 32 |
| Network Bandwidth | Access: 160 Mbps; Storage: 128 Mbps; Forward: 48 Mbps |
| Resolution | 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1 |
| Decoding Capability | 8 × 1080p@30 fps |
| Video Output | 1 × VGA output, 1 × HDMI output; supports simultaneous video sources output for VGA and HDMI |
| Multi-screen Display | 1, 4, 8, 9, 16, 25, 32 views |
| Third-party Camera Access | ONVIF; RTSP |
| Compression | |
| Video | Smart H.265 / H.265 / Smart H.264 / H.264 / MJPEG |
| Audio | PCM / G711A / G711U / G726 / AAC |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera, DVR, NVS, etc.); P2P; auto register |
| Mobile Phone Access | Android; iOS |
| Interoperability | ONVIF (profile T/S/G); CGI; SDK |
| Browser | Chrome; IE9 or later; Firefox |
| Record Playback | |
| Multi-channel Playback | Up to 16 channels for playback |
| Record Mode | Manual record; alarm recording; SMD recording; smart recording |
| Storage | Local HDD; network |
| Backup | USB storage device |
| Playback Function | 1. Play/pause/stop/slow/quick/backward/by frame 2. Full screen, backup (video clip/file), partial zoom in, and audio on/off |
| Storage | |
| Disk Group | Yes |
| Alarm | |
| General Alarm | Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm |
| Anomaly Alarm | Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception |
| Intelligent Alarm | Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms |
| Alarm Linkage | Recording, snapshot, local external alarm output, audio, buzzer, log, preset, and email |

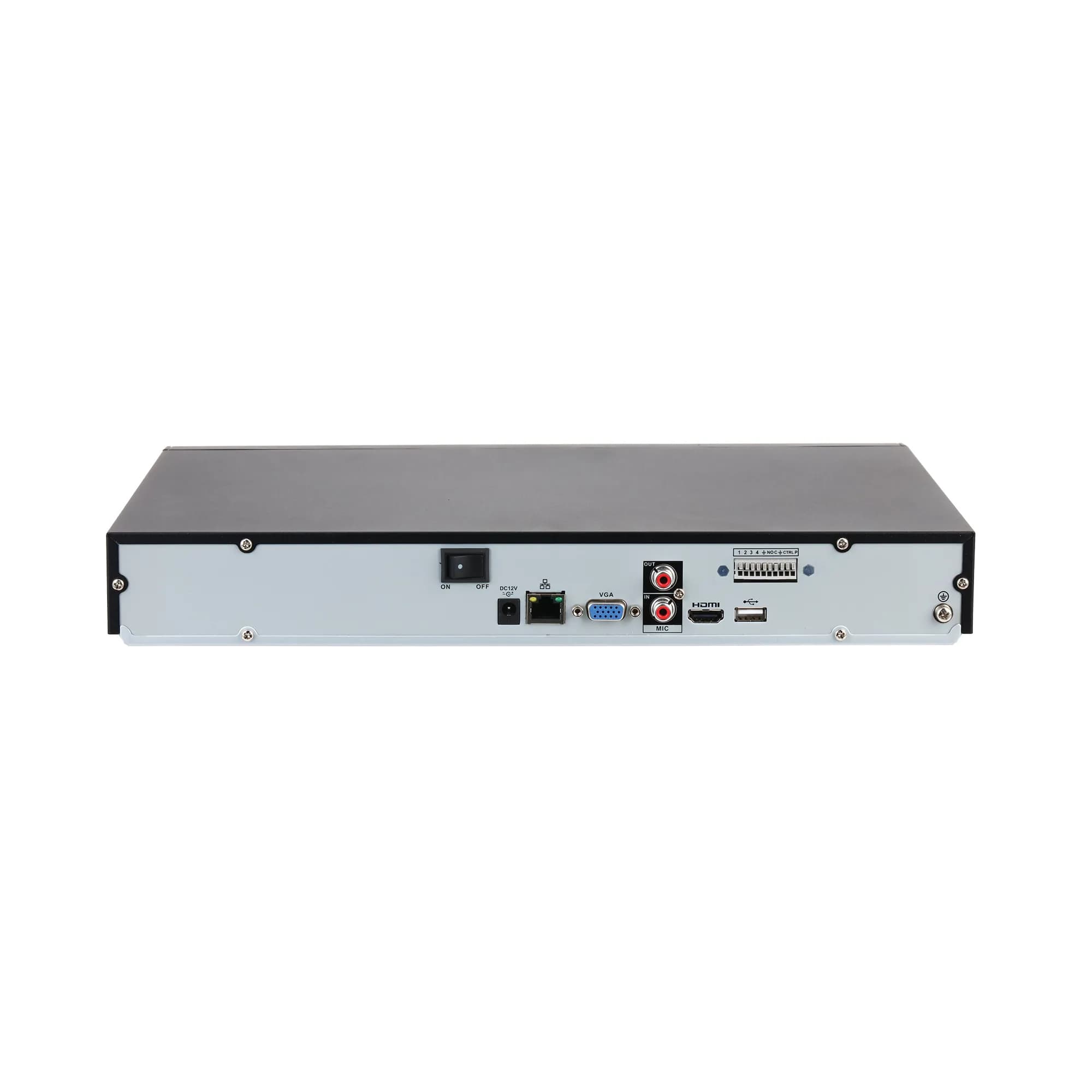

| External Port | |
| Audio Input | 1 × RCA input |
| Audio Output | 1 × RCA output |
| HDD | 2 SATA III ports, up to 10 TB for a single HDD; the maximum HDD capacity varies with environment temperature |
| Alarm Input | 4 |
| Alarm Output | 2 |
| USB | 2 (1 × front USB2.0; 1 × back USB2.0) |
| HDMI | 1 (supports up to 4K resolution output) |
| VGA | 1 |
| Network | 1 × RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port |
| General Parameter | |
| Power Supply | 12 V DC, 4 A |
| Power Consumption | < 5.6 W (HDD not included, idling) |
| Net Weight | 1.5 kg (3.31 lb) |
| Gross Weight | 2.6 kg (5.73 lb) |
| Product Dimensions | 375.0 mm × 282.9 mm × 53.0 mm (14.76" × 11.14" × 2.09") (W × L × H) |
| Package Dimensions | 433 mm × 140 mm × 363 mm (17.05" × 5.51" × 14.29") (W × L × H) |
| Operating Conditions | –10 °C to +55 °C (+10 °F to +131 °F) |
| Storage Conditions | 0 °C to +40 °C (32 °F to 104 °F) |
| Operating Humidity | 10% ~ 93% |
| Storage Humidity | 30% ~ 85% |
| Operating Altitude | 3000 m (9842.52 ft) |
| Installation | Desktop/Rack mount |
| Certifications | CE: EN62368-1; EN55032, EN55024, EN55035, EN61000-3-2, EN61000-3-3, EN50130-4; FCC: Part 15 Subpart B |
