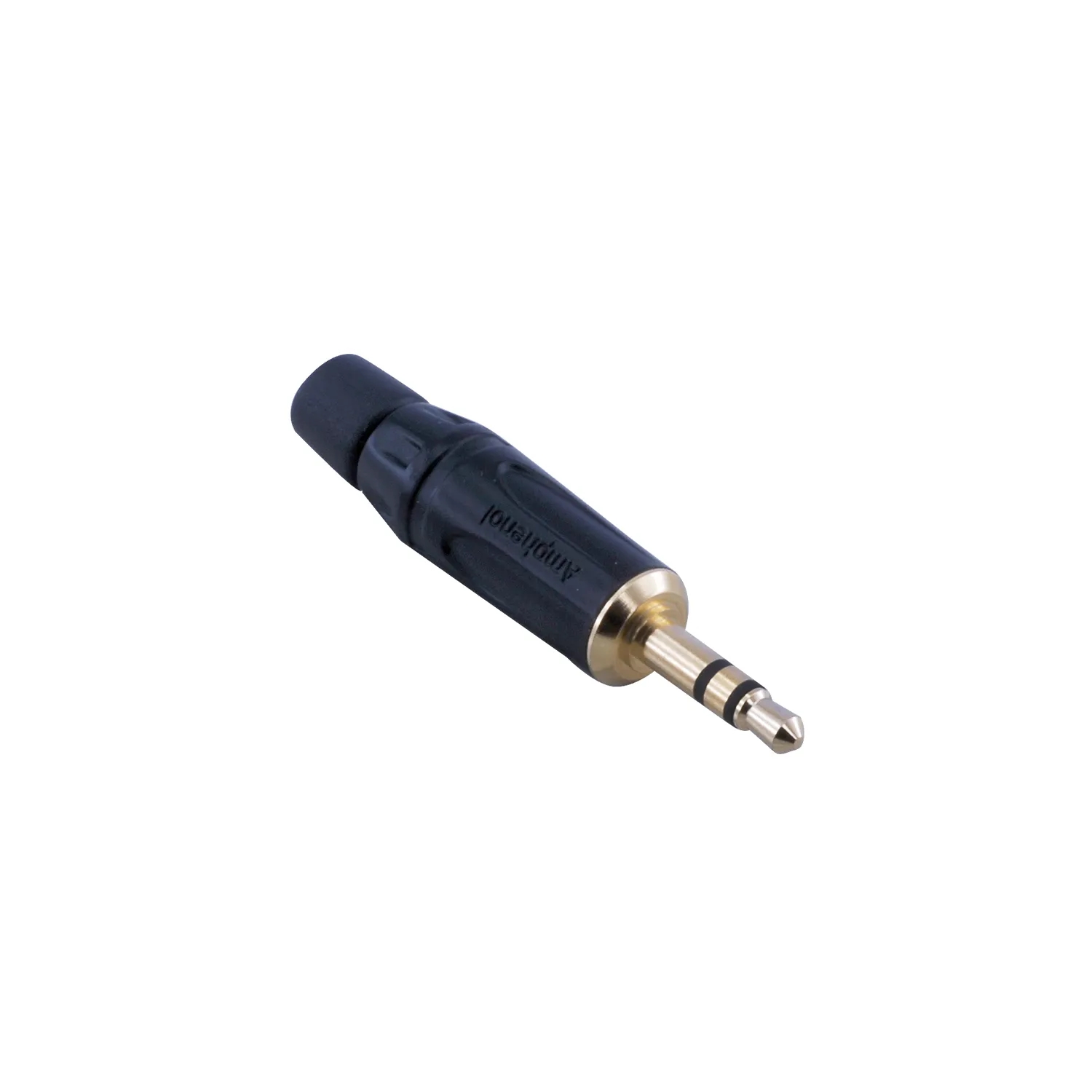

Stock Code: KS3PB-AU
| General Specifications | |
|---|---|
| Number of Contacts | 2 Pole (Mono) 3 Pole Tip-Ring-Sleeve (Stereo) |
| Termination | Solder |
| Wire Gauge - Standard Wire | 2 Pole (Mono): AWG 16 - 1,5 mm² 3 Pole (Stereo): AWG 18 - 1 mm² |
| Flammability Rating of Insulating Plastics | UL94V-0 or UL94-HB |
| Solderability | IEC 68-2-20 |
| Environmental | Complies with EU RoHS 2 Directive 2011/65/EU |
| Electrical Specifications | |
| Nominal Working Current | >0,5 mA (Depends on Mating Connector and Cable) |
| Typical Contact Resistance | ≤20 mΩ (Varies by Mating Connector and Cable) |
| Insulation Resistance (initial) After Damp Heat Test |
>200 MΩ >100 MΩ |
| Test Voltage AC RMS: Dielectric Withstanding |
250 VAC |
| Climatic Specifications | |
| Ingress Protection | IP40 |
| Operating Temperature | -20°C ~ +65°C (-4°F ~ +149°F) |
| Mechanical Specifications | |
| Insertion and Withdrawal Force | <20N / >3N (depends on mating connector) |
| Cable Diameter | 3 mm to 5 mm (0,118" to 0,196") |
| Mating Cycles | 1000 mating cycles |
| Weight | 8 g (0,017 lb) |
| Materials | |
| Connector Shell Material (Plugs) | Diecast Zinc Alloy EZDA No.3 |
| Connector Shell Plating | Satin Nickel or Black Polyester |
| Insulators | PA66 |
| Cable Bushing | Santoprene |
| Contacts | Brass |
| Plating | Nickel or Gold Flash |
