Adds a stereo 3.5 mm jack input to the device panel

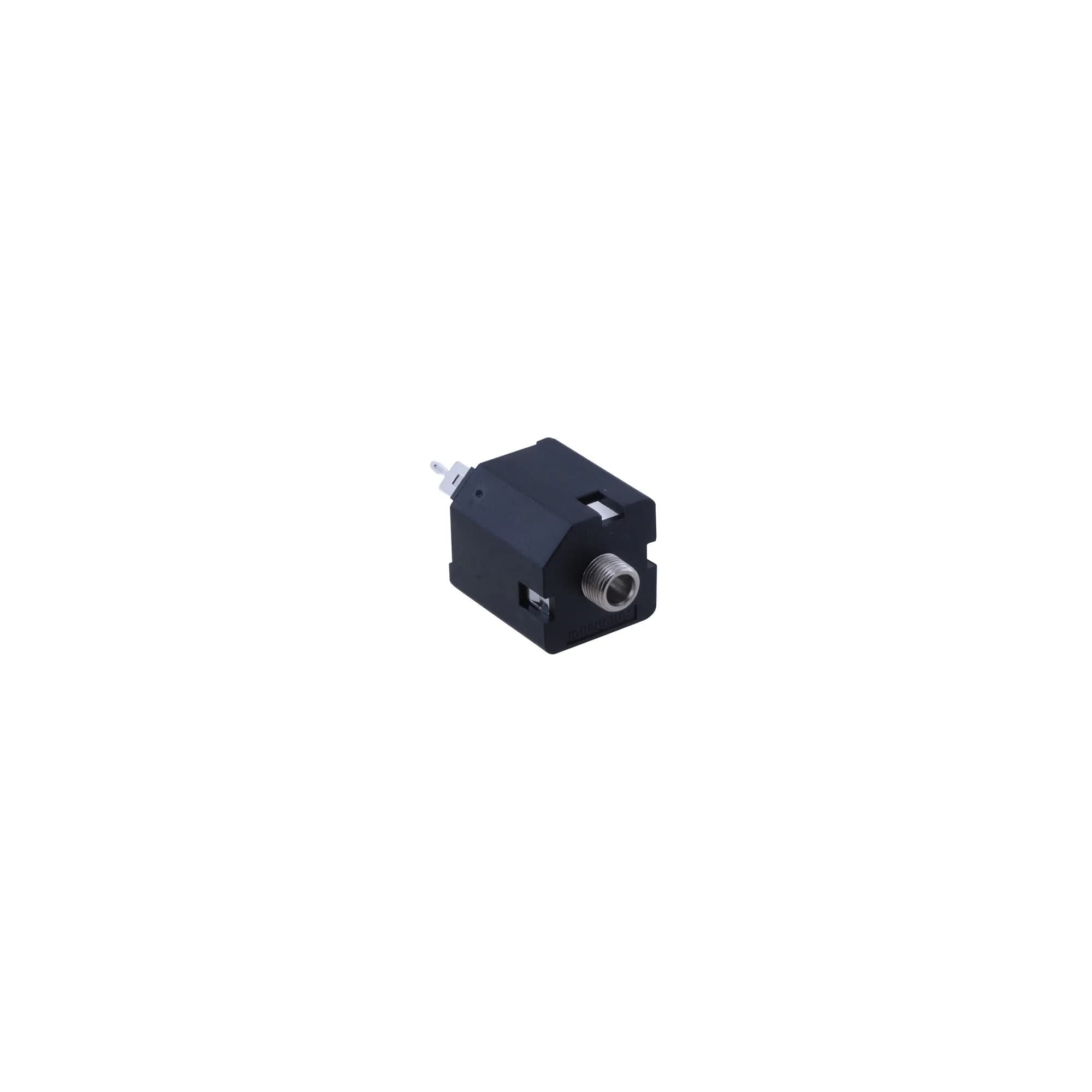

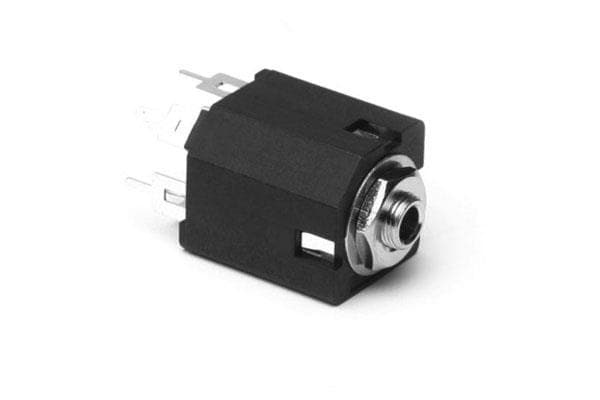

A stereo jack socket soldered vertically onto the circuit board. It is clamped to the panel with a metal nut and washer and is used on the front and rear panels of professional audio equipment.
3.5 mmjack size
Stereoaudio channel
Femaleplug type
Vertical PCBmounting type
Key features
Panel mountingIt fits a Ø6.0 mm panel cutout and clamps to panels up to 1.15 mm thick with the metal washer and nut.
Nut and washerThe M6 × 0.5 metal nut is 2.0 mm thick and the metal washer is Ø13.0 mm in diameter and 0.40 mm thick.
Mounting orientationThe vertical body places the jack input perpendicular to the panel surface.
ComplianceThe product complies with RoHS 2002/95/EC.
Application areasRadio and TV broadcasting·Professional studios·Sound reinforcement and PA·Musicians and DJs
