Connects a stereo audio cable to a 3.5 mm jack input

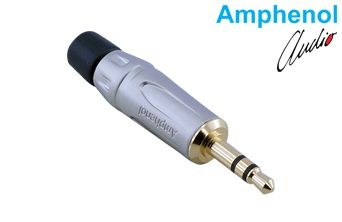

A straight-body stereo jack plug mounted by soldering to the cable end. With gold-plated contacts and a diecast zinc housing, it is used to build custom cable assemblies for studio, stage, and broadcast setups.
3.5 mmjack size
Stereoaudio channel
Maleplug type
3number of contacts
Goldcontact plating
IP40protection grade
Key features
Housing and finishThe diecast zinc alloy (EZDA No.3) housing is completed with a satin surface treatment.
Contact platingThe contacts are gold-plated and rated for 1000 mating cycles.
TerminationSolder termination is used and accepts wire up to 18 AWG - 1 mm².
Cable protectionA flexible grommet keeps the cable from bending sharply where it leaves the plug.
Operating conditionsIP40 protection grade and a -20°C to +65°C operating temperature range; the insulating plastics are rated UL94V-0 or UL94-HB.
Application areasRadio and TV broadcasting·Professional studios·Sound reinforcement and PA·Musicians and DJs
Current carrying capacity is >0.5 mA and varies with the mating connector and cable. The product complies with EU RoHS 2 Directive 2011/65/EU.
