Adds a mono 3.5 mm jack input to the device panel

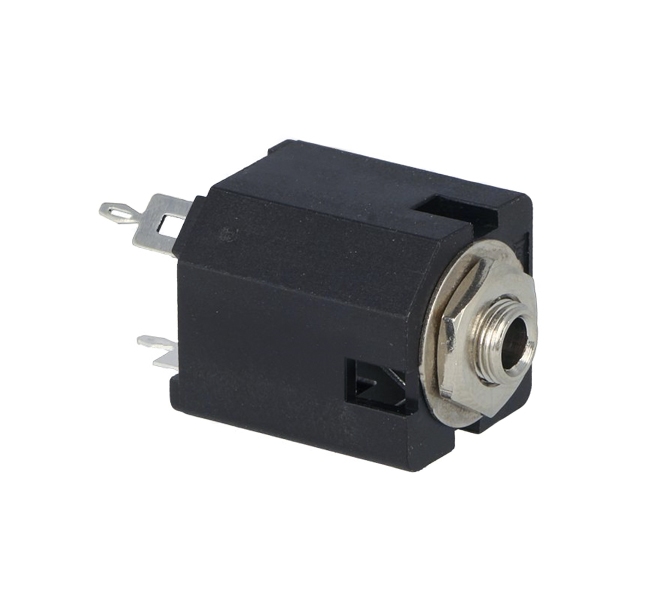

A mono jack socket soldered vertically onto the circuit board and clamped to the panel with a metal nut and washer. It serves as an input or an output on the front or rear panels of audio and lighting equipment.
3.5 mmjack size
Monoaudio channel
Femaleplug type
IP40protection grade
Vertical PCBmounting type
Key features
Panel mountingIt fits a Ø6.0 mm panel cutout and clamps to panels up to 1.15 mm thick with the metal washer and nut.
Nut and washerThe M6×0.5 metal nut is 2.0 mm thick and the metal washer is 13 mm in diameter and 0.40 mm thick.
Board hole patternThe circuit board requires a hole pattern of 3 × Ø2.0 mm and 2 × Ø1.4 mm.
Housing materialThe housing is made of 30% glass-filled PA66 nylon, with a UL94V-0 or UL94-HB flammability rating.
Electrical ratingsIt offers a 10 A current carrying capacity, 34 V, and a -25°C to +70°C operating temperature range.
Mechanical lifeIt is designed for a minimum of 10,000 mating cycles.
Application areasAudio systems·Lighting equipment
Current carrying capacity varies with the mating connector. The product complies with EU RoHS 2 Directive 2011/65/EU and RoHS 2002/95/EC.
