Meets 37 lines on the panel with female socket contacts.

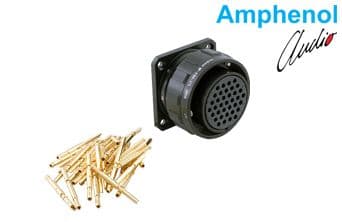

A female chassis connector that seats into cabinet and rack panels. Gold plated socket contacts come with the product, the mated pair reaches IP67 protection, and it receives the cable-side plug in fixed installations that need a high contact count.
37Number of contacts
13 ACurrent carrying capacity
IP67Protection Grade
200 V ACService voltage
1000 VTest voltage
-55 / +125 °COperating Temperature
Key features
Chassis mountingIt seats on the panel surface and gathers 37 lines at a single point.
Gold plated socket contactsSocket contacts come with the product and cover solder and crimp termination alike.
Shell and finishThe die cast aluminum alloy shell finishes in black.
Wire gaugeIt terminates conductors in the 16 AWG – 20 AWG range.
DimensionsPer the technical drawing, A is 50.8 mm, B is 39.7 mm, diameter C is 3.7 mm, D is 54.3 mm and E is 42.0 mm.
Service voltage is 200 V AC and 250 V DC; the manufacturer does not recommend this connector for domestic applications above 50 V. The coupling nut carries no roller pin, as the manufacturer supplies roller pins only on shell sizes 32 and 40.
