Name: 37 Multipin Male Cable Type Connector
Brand: Amphenol
SKU: MP-4101-37P

Combines a 37 contact multi core line into one connector

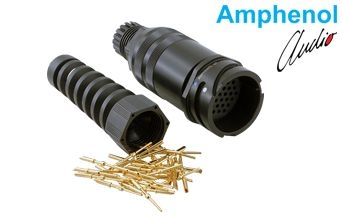

A 37 contact male multipin connector that seats on the cable end. Gold plated pin contacts end in solder termination, and the threaded mating style locks the plug onto its mating shell.

37Number of contacts

13 ACurrent carrying capacity

2000Mating cycles

PG21Cable gland thread

50.9 mmShell diameter

210 mmOverall length

Key features

Contact design37 gold plated pin contacts take solder termination that joins the cable to the contacts.

HousingThe aluminum alloy shell and adaptor carry a black finish, and the cable gland is black polyamide.

Cable entryThe PG21 threaded gland takes up pulling force, and a PG adaptor ships in the package.

MatingThe threaded mating style holds the plug in place and withstands up to 2000 mating cycles.

DimensionsThe shell measures 50.9 mm in diameter and 210 mm in length.

ComplianceThe connector is RoHS compliant.

General

Brand

Amphenol

Part No.

MP-4101-37P

Type

Cable connecting connector, pin (male) contact

Number of Contacts

Mechanical Specifications

Cable Gland Thread Size

PG21

Diameter (A)

50.9 mm

Length (B)

210 mm

Cable Gland

PG thread, with strain relief

PG Adaptor

Included

Material and Finish

Connector Shell and Adaptor

Aluminium alloy, black finish

PG Cable Gland

Polyamide, black

Contacts

Gold plated

Applications

Fields of Use

Radio and TV broadcasting; professional studios; sound reinforcement & PA; musicians and DJs; special applications
