Name: 37 Multipin Male Chasis Type Connector
Brand: Amphenol
SKU: MP-4102-37P

Brings 37 lines together in a single panel connector.

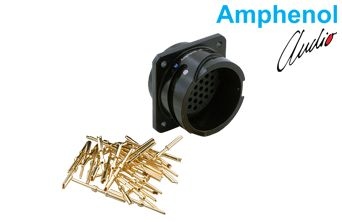

A circular connector with male pin contacts for panel mounting. The threaded coupling nut holds the mated plug in place, gold plated contacts cover solder termination, and the mated pair reaches IP67 protection.

37Number of contacts

13 ACurrent carrying capacity

IP67Protection Grade

2000Mating cycles

GoldContact plating

Key features

Panel mountingIt seats on the panel surface and meets 37 lines with male pin contacts.

Threaded matingThe threaded coupling nut holds the mated plug in place.

Gold plated contactsGold plated crimp pin contacts cover solder termination.

Shell and finishThe die cast aluminum alloy shell carries a black coating and works with stainless steel wear pins.

DimensionsPer the technical drawing, dimension A is 50.8 mm, B is 39.7 mm, diameter D is 46.7 mm and diameter F is 41.4 mm.

General

Part Number

MP-4102-37P

Brand

Amphenol

Type

Panel receptacle plug with pin contacts

Number of Contacts

Material and Finish

Housing Material

Die cast aluminium alloy

Finish

Black coating

Contacts

Gold plated crimp pin contacts (supplied)

Wear Pins

Stainless steel

Dimensions (mm)

50.8

39.7

Ø C

3.73

Ø D

46.7

35.7

Ø F

41.4

Applications

Radio and TV broadcasting; professional studios; sound reinforcement and PA; musicians and DJs; special applications

Document

Drawing No.

55010250-000-2

Manufacturer

Amphenol Australia Pty. Ltd.
