Carries enterprise backbone and data center links over 48 Gigabit ports.

A Layer 2+ managed Gigabit switch for enterprise backbones and data center networks. It combines 48 10/100/1000BASE-T ports and 4 1000BASE-X SFP slots with 104 Gbps non-blocking switching capacity, and manages static routing, VLAN and ACL rules from the web interface.

48 portsCopper port count

4 SFPFiber uplink slots

104 GbpsSwitching Capacity

77.38 MppsForwarding rate

IP30Protection Grade

0 ~ 50 °COperating Temperature

Key features

104Gbps

Non-blocking switching fabric

All ports run at full speed at the same time without packet loss.

48ports

High-density copper access

Aggregates 48 Gigabit end devices in a single 1U chassis.

4SFP

Fiber uplink slots

Connects to the backbone over 1000BASE-SX/LX modules.

256VLAN

802.1Q tag-based segmentation

Splits traffic into segments and narrows broadcast domains.

16KMAC

Address table

Learns addresses automatically and tracks them across large networks.

128static routes

Layer 3 static routing

Routes traffic between VLANs on the switch itself.

DAILY USE

Web and command line managementManaged through console, Telnet, SSH and a web browser; connects to monitoring software over SNMP v1, v2c and v3.

IPv4 and IPv6 togetherAddressing, management and access control work on both protocols, so the move to IPv6 needs no new hardware.

Access controlACL rules filter traffic by source and destination address, and 802.1x port authentication keeps unauthorized devices out.

Usage AreasEnterprise backbone networks·Data center distribution layer·Server farm connectivity·VoIP and video streaming

Hardware Specifications

Copper Ports

48 10/100/1000BASE-T RJ-45 Auto-MDI/MDI-X ports

SFP / mini-GBIC Slots

4 1000BASE-X SFP interfaces

Console

1 x RJ-45-to-RS-232 serial port (9600, 8, N, 1)

Switch Architecture

Store-and-Forward

Switch Fabric

104Gbps / non-blocking

Switch Throughput

77.38Mpps

Address Table

16K MAC address table with auto learning function

Shared Data Buffer

1.5Mbytes

Flow Control

Back pressure for half-duplex
IEEE 802.3x pause frame for full-duplex

Jumbo Frame

9K bytes

LED Indicators

System: PWR, SYS
Ports: TP Port: 10/100/1000 Link/Act
SFP Slot: Link/Act

Dimensions (W x D x H)

442 x 280 x 44 mm, 1U height

Weight

3702g

Power Consumption

38 watts / 129 BTU (maximum)

Power Requirements

AC 100~240V, 50/60Hz

Management Function

System Configuration

Console, Telnet, SSH, Web Browser, SNMP v1, v2c and v3

Management

Supports both IPv4 and IPv6 addressing
Supports the user IP security inspection for IPv4 / IPv6 SNMP
Supports MIB and TRAP
Supports IPv4 / IPv6 FTP/TFTP
Supports IPv4 / IPv6 NTP
Supports RMON 1, 2, 3, 9 four group
Supports the RADIUS authentication for IPv4 / IPv6 telnet user name and password
Supports IPv4 / IPv6 SSH
The right configuration for users to adopt RADIUS server's shell management
Supports CLI, Console, Telnet
Supports SNMP v1 / v2c / v3
Supports Security IP safety net management function: avoid unlawful landing at nonrestrictive area
Supports Syslog server for IPv4 and IPv6
Supports TACACS+

Layer 3 Function

Static Route

Supports maximum 128 static routes

Layer 2 Function

Port Configuration

Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable / enable
Bandwidth control on each port
Port loopback detect

Port Status

Display each port's speed duplex mode, link status, flow control status, and auto negotiation status

VLAN

802.1Q tagged based VLAN, up to 256 VLAN groups
802.1ad Q-in-Q (VLAN stacking)
GVRP for VLAN management
Private VLAN Edge (PVE) supported
Protocol-based VLAN
MAC-based VLAN
IP subnet VLAN

Bandwidth Control

TX / RX / both

Link Aggregation

IEEE 802.3ad LACP / static trunk
Supports 128 groups of 8-port trunk

QoS

8 priority queues on all switch ports
Supports strict priority and Weighted Round Robin (WRR) CoS policies
Traffic classification:
IEEE 802.1p CoS / ToS
IPv4 / IPv6 DSCP
Port-based WRR

Multicast

IGMP v1 / v2 / v3 snooping
Querier mode support
MLD v1 / v2, MLD v1 / v2 snooping
Querier mode support
Multicast VLAN Register (MVR)

Access Control List

Supports Standard and Expanded ACL
IP-based ACL / MAC-based ACL
Time-based ACL
Up to 1K entries

Bandwidth Control

At least 64Kbps step

Security

Supports MAC + port binding
IPv4 / IPv6 + MAC + port binding
IPv4 / IPv6 + port binding
Supports MAC filter
ARP Scanning Prevention

Authentication

IEEE 802.1x port-based network access control
AAA Authentication: TACACS+ and IPv4/IPv6 over RADIUS

SNMP MIBs

RFC 1213 MIB-II
RFC 1215 Internet Engineering Task Force
RFC 1271 RMON
RFC 1354 IP-Forwarding MIB
RFC 1493 Bridge MIB
RFC 1643 Ether-like MIB
RFC 1907 SNMP v2
RFC 2011 IP/ICMP MIB
RFC 2012 TCP MIB
RFC 2013 UDP MIB
RFC 2096 IP forward MIB
RFC 2233 if MIB
RFC 2452 TCP6 MIB
RFC 2454 UDP6 MIB
RFC 2465 IPv6 MIB
RFC 2466 ICMP6 MIB
RFC 2573 SNMPv3 notify
RFC 2574 SNMPv3 vacm
RFC 2674 Bridge MIB Extensions (IEEE 802.1Q MIB)
RFC 2674 Bridge MIB Extensions (IEEE 802.1P MIB)

Standards Conformance

Regulation Compliance

FCC Part 15 Class A, CE

Standards Compliance

IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p class of service
IEEE 802.1Q VLAN tagging
IEEE 802.1x port authentication network control
IEEE 802.1ab LLDP

Environment

Operating

Temperature	Relative Humidity
0 ~ 50 degrees C	5 ~ 95% (non-condensing)

Storage

Temperature	Relative Humidity
-10 ~ 70 degrees C	5 ~ 95% (non-condensing)

Carries enterprise backbone and data center links over 48 Gigabit ports.

48 portsCopper port count

4 SFPFiber uplink slots

104 GbpsSwitching Capacity

77.38 MppsForwarding rate

IP30Protection Grade

0 ~ 50 °COperating Temperature

Key features

104Gbps

Non-blocking switching fabric

All ports run at full speed at the same time without packet loss.

48ports

High-density copper access

Aggregates 48 Gigabit end devices in a single 1U chassis.

4SFP

Fiber uplink slots

Connects to the backbone over 1000BASE-SX/LX modules.

256VLAN

802.1Q tag-based segmentation

Splits traffic into segments and narrows broadcast domains.

16KMAC

Address table

Learns addresses automatically and tracks them across large networks.

128static routes

Layer 3 static routing

Routes traffic between VLANs on the switch itself.

DAILY USE

Web and command line managementManaged through console, Telnet, SSH and a web browser; connects to monitoring software over SNMP v1, v2c and v3.

IPv4 and IPv6 togetherAddressing, management and access control work on both protocols, so the move to IPv6 needs no new hardware.

Access controlACL rules filter traffic by source and destination address, and 802.1x port authentication keeps unauthorized devices out.

Usage AreasEnterprise backbone networks·Data center distribution layer·Server farm connectivity·VoIP and video streaming

Hardware Specifications

Copper Ports

48 10/100/1000BASE-T RJ-45 Auto-MDI/MDI-X ports

SFP / mini-GBIC Slots

4 1000BASE-X SFP interfaces

Console

1 x RJ-45-to-RS-232 serial port (9600, 8, N, 1)

Switch Architecture

Store-and-Forward

Switch Fabric

104Gbps / non-blocking

Switch Throughput

77.38Mpps

Address Table

16K MAC address table with auto learning function

Shared Data Buffer

1.5Mbytes

Flow Control

Back pressure for half-duplex
IEEE 802.3x pause frame for full-duplex

Jumbo Frame

9K bytes

LED Indicators

System: PWR, SYS
Ports: TP Port: 10/100/1000 Link/Act
SFP Slot: Link/Act

Dimensions (W x D x H)

442 x 280 x 44 mm, 1U height

Weight

3702g

Power Consumption

38 watts / 129 BTU (maximum)

Power Requirements

AC 100~240V, 50/60Hz

Management Function

System Configuration

Console, Telnet, SSH, Web Browser, SNMP v1, v2c and v3

Management

Layer 3 Function

Static Route

Supports maximum 128 static routes

Layer 2 Function

Port Configuration

Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable / enable
Bandwidth control on each port
Port loopback detect

Port Status

Display each port's speed duplex mode, link status, flow control status, and auto negotiation status

VLAN

802.1Q tagged based VLAN, up to 256 VLAN groups
802.1ad Q-in-Q (VLAN stacking)
GVRP for VLAN management
Private VLAN Edge (PVE) supported
Protocol-based VLAN
MAC-based VLAN
IP subnet VLAN

Bandwidth Control

TX / RX / both

Link Aggregation

IEEE 802.3ad LACP / static trunk
Supports 128 groups of 8-port trunk

QoS

8 priority queues on all switch ports
Supports strict priority and Weighted Round Robin (WRR) CoS policies
Traffic classification:
IEEE 802.1p CoS / ToS
IPv4 / IPv6 DSCP
Port-based WRR

Multicast

IGMP v1 / v2 / v3 snooping
Querier mode support
MLD v1 / v2, MLD v1 / v2 snooping
Querier mode support
Multicast VLAN Register (MVR)

Access Control List

Supports Standard and Expanded ACL
IP-based ACL / MAC-based ACL
Time-based ACL
Up to 1K entries

Bandwidth Control

At least 64Kbps step

Security

Supports MAC + port binding
IPv4 / IPv6 + MAC + port binding
IPv4 / IPv6 + port binding
Supports MAC filter
ARP Scanning Prevention

Authentication

IEEE 802.1x port-based network access control
AAA Authentication: TACACS+ and IPv4/IPv6 over RADIUS

SNMP MIBs

Standards Conformance

Regulation Compliance

FCC Part 15 Class A, CE

Standards Compliance

Environment

Operating

Temperature	Relative Humidity
0 ~ 50 degrees C	5 ~ 95% (non-condensing)

Storage

Temperature	Relative Humidity
-10 ~ 70 degrees C	5 ~ 95% (non-condensing)

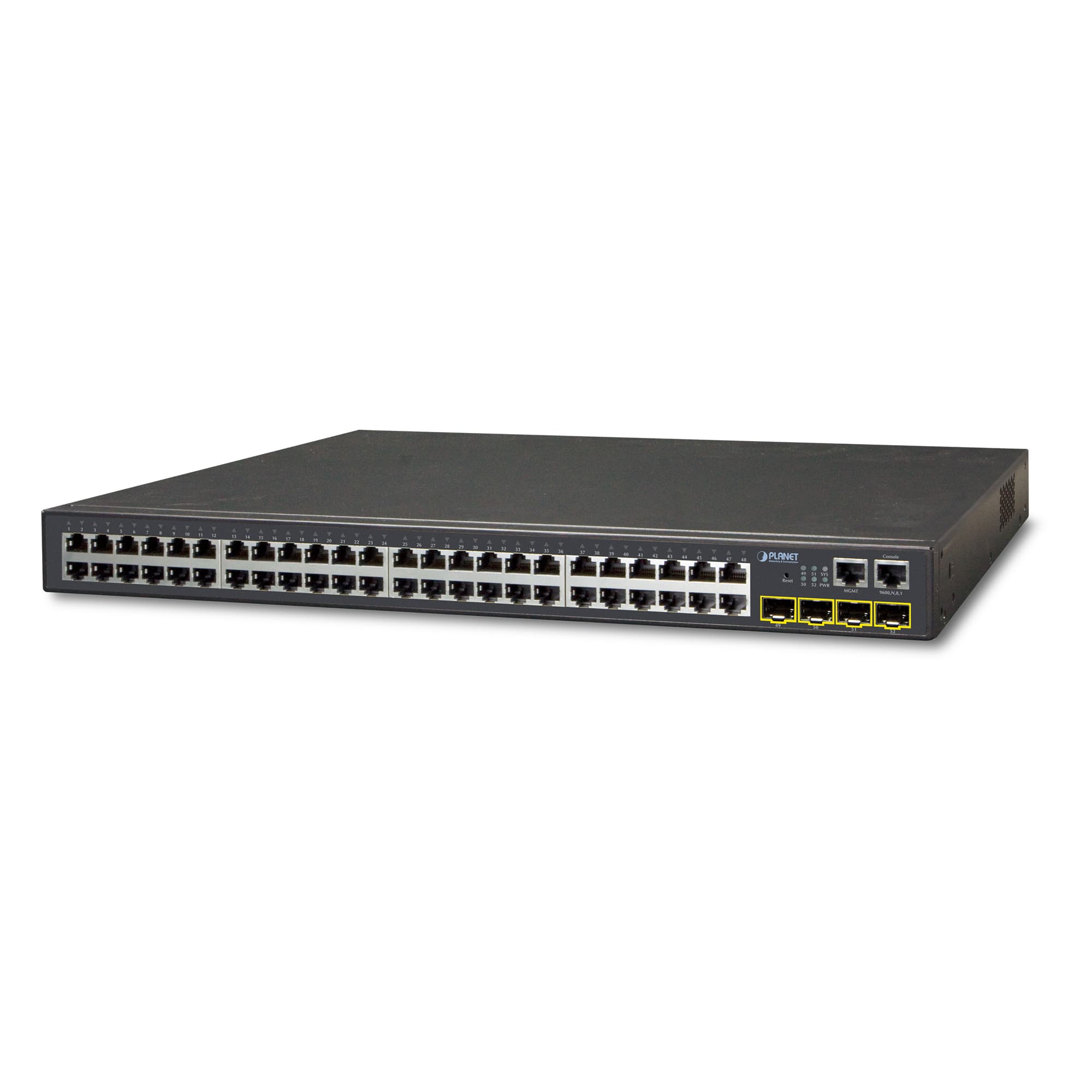

48-Port 10/100/1000Base-T + 4-Port 1000X SFP Managed Gigabit Switch
