Stock Code: GS-4210-48T4S
Cost-optimized High-density Managed Gigabit Switch for Small and Medium Businesses

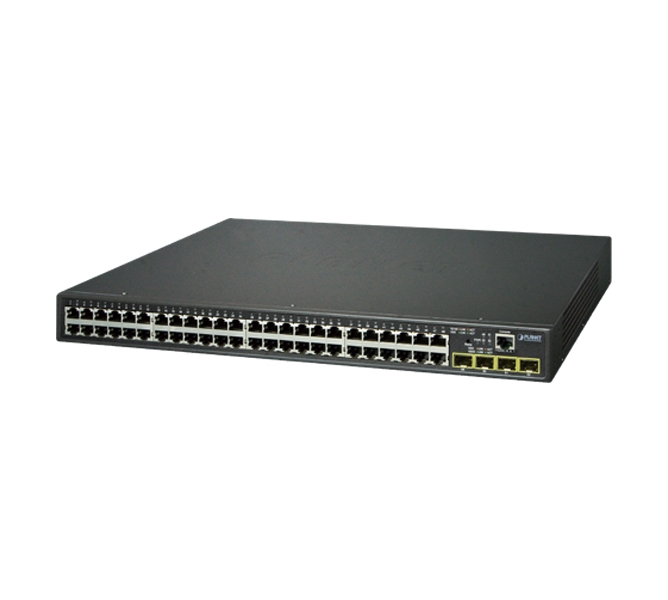

PLANET GS-4210-48T4S Gigabit Managed Switch is perfectly designed for SMB and enterprise network infrastructures. Besides the IPv6 / IPv4 management and abundant L2 / L4 switching functions, the GS-4210-48T4S comes with fanless feature and green technology to provide a quiet, energy-saving, high-speed and reliable office network environment. It benefits the SMB and enterprise users as it provides Gigabit network performance but it comes at the cost of a Fast Ethernet switch. The GS-4210-48T4S is quite suitable for the next-generation network deployment and offers the lowest total cost of ownership. It is the best investment for business expansion or upgrading its network infrastructure.
High Performance
The GS-4210-48T4S provides 48 10/100/1000BASE-T Gigabit Ethernet RJ45 ports and 4 additional 100/1000BASE-X SFP slots. It boasts a high-performance switch architecture that is capable of providing the non-blocking switch fabric and wire-speed throughput as high as 104Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.
Fanless Design
Adopting the latest chip process and green technology, the GS-4210-48T4S successfully reduces substantial power consumption with the fanless and noiseless design collocating with the effective cooler. Therefore, the GS-4210-48T4S is able to operate stably and quietly in any environment without affecting its performance.
IPv6 / IPv4 Dual Stack
By supporting both IPv6 and IPv4 protocols, the GS-4210-48T4S helps the SMBs to step in the IPv6 era with the lowest investment as network facilities do not need to be fully replaced. Thus, the IPv4 network can be easily upgraded by ISPs to the IPv6 FTTx edge network.
Robust Layer 2 Features
The GS-4210-48T4S can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree protocol (MSTP), Loop and BPDU Guard, and IGMP Snooping. Via the aggregation of supporting ports, the GS-4210-48T4S allows the operation of a high-speed trunk to combine with multiple ports such as a 16Gbps fat pipe and supports fail-over as well.
Efficient Traffic Control
The GS-4210-48T4S is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast / multicast storm control, per port bandwidth control, IP DSCP QoS priority and remarking. It guarantees the best performance of VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.
Enhanced and Secure Management
For efficient management, the GS-4210-48T4S is equipped with Web, Telnet and SNMP management interfaces. With the built-in Web-based management interface, the GS-4210-48T4S offers an easy-to-use, platform-independent management and configuration facility. By supporting standard Simple Network Management Protocol (SNMP), the switch can be managed via any standard management software. For text-based management, the switch can be accessed via Telnet port. Moreover, the GS-4210-48T4S offers secure remote management by supporting SSH and SSL connections which encrypt the packet content at each session.
Powerful Security
PLANET GS-4210-48T4S offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. With the Protected Port function, communication between edge ports can be prevented to guarantee user privacy. Port Security allows to limit the number of users on a given port. The network administrators can now construct highly-secured corporate networks with considerably less time and effort than before.
Flexible Extension Solution
The four mini-GBIC SFP slots built in the GS-4210-48T4S support dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator can flexibly choose the suitable SFP transceiver according to not only the transmission distance, but also the transmission speed required. The distance can be extended from 550 meters to 2km (multi-mode fiber) and up to above 10/20/30/40/50/70/120 kilometers (single-mode fiber or WDM fiber). It is well suited for applications within the enterprise data centers and distributions.
Green Networking
In line with the energy-saving trend worldwide, the GS-4210-48T4S adopts the new-generation green technology which brings both benefits of energy saving and Gigabit performance. The new engine provides up to 60% less energy consumption without reducing the performance, and particularly it offers flexible power-saving mode to meet various demands.
