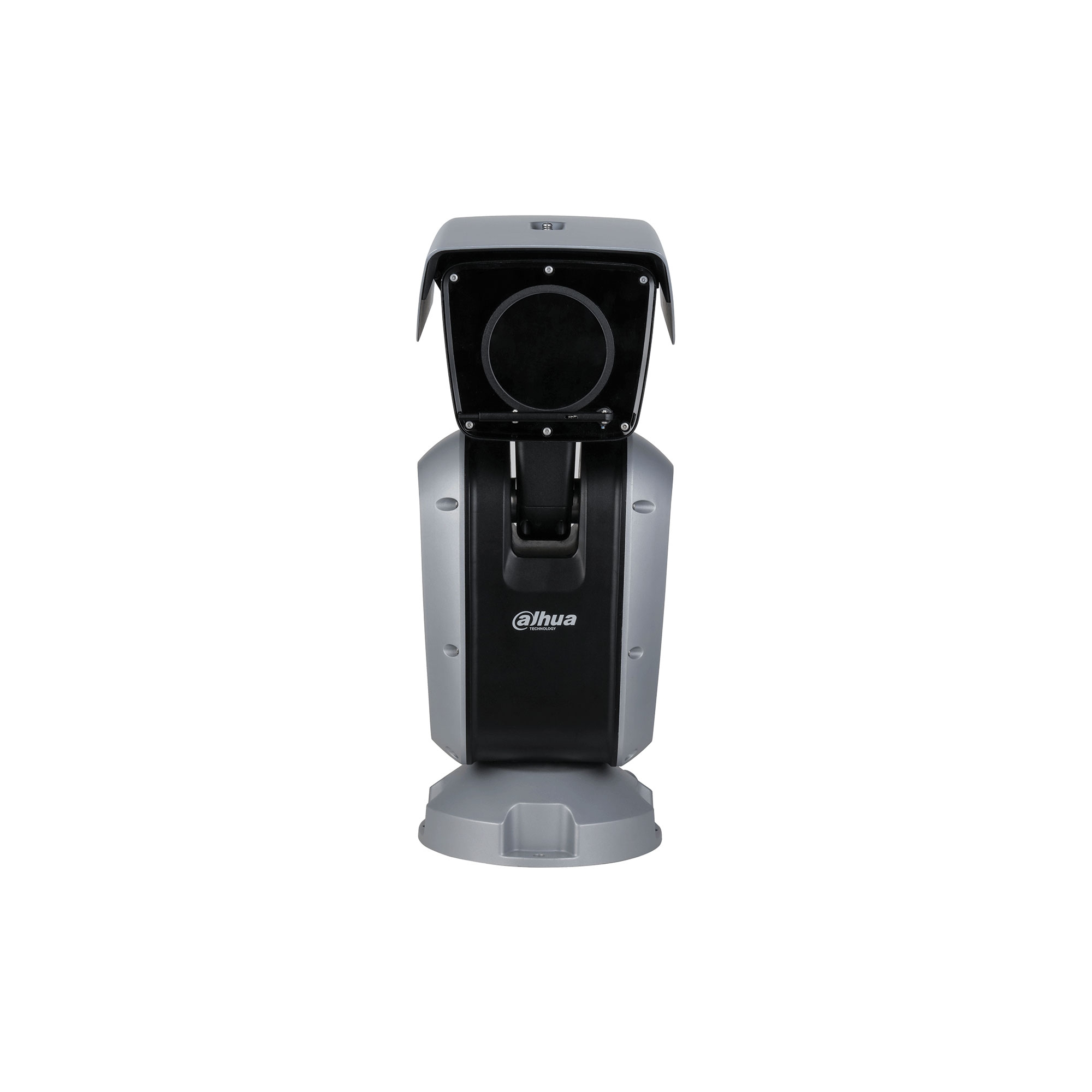

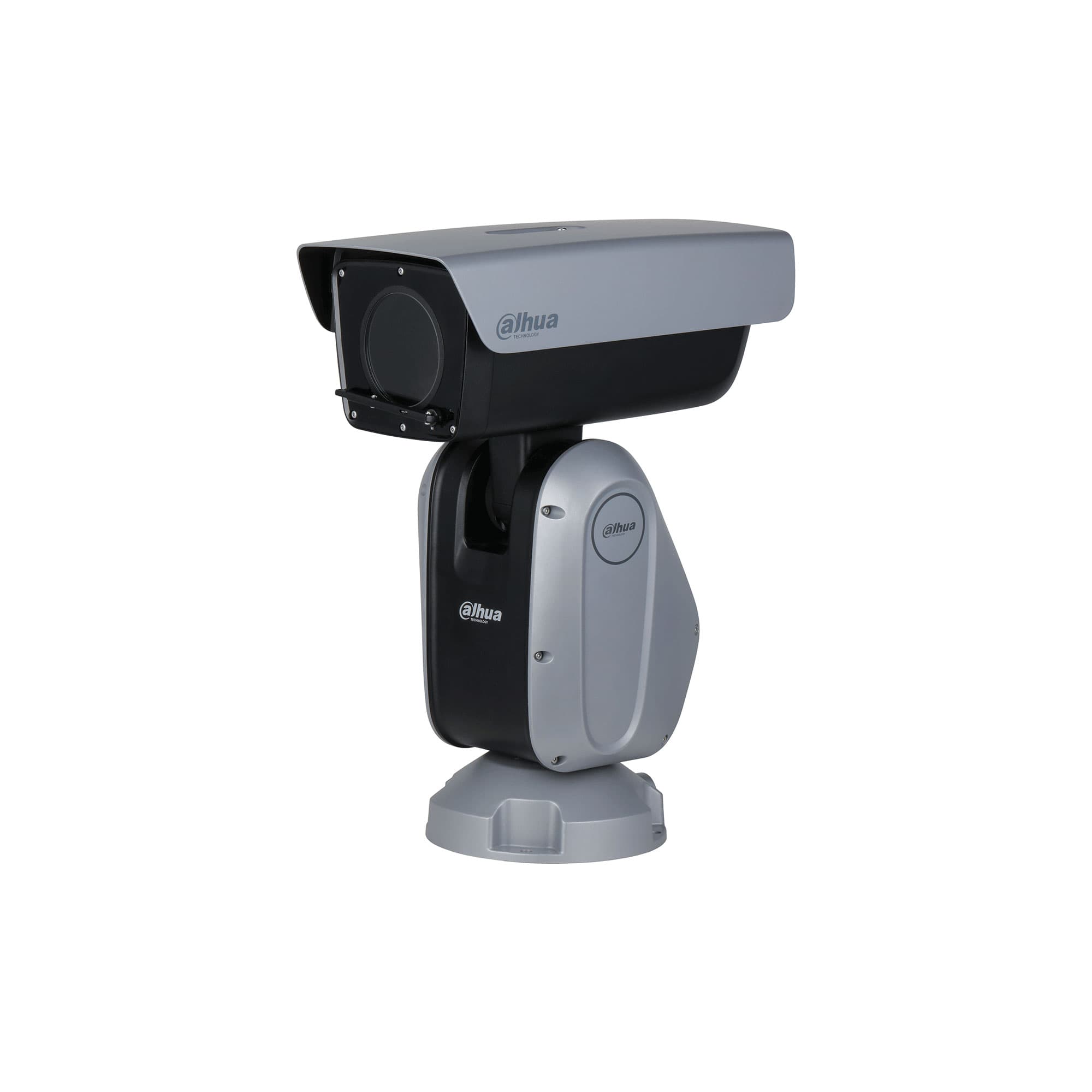

Stock Code: PTZ85448-HNF-PA
| Camera | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Image Sensor | 1/1.8" CMOS | ||||||||
| Pixel | 4 MP | ||||||||
| Max. Resolution | 2560 (H) × 1440 (V) | ||||||||
| ROM | 8 GB | ||||||||
| RAM | 2 GB | ||||||||
| Electronic Shutter Speed | 1/1 s – 1/30,000 s | ||||||||
| Scanning System | Progressive | ||||||||
| Min. Illumination | Color: 0.001 lux@F1.4 B/W: 0.0001 lux@F1.4 0 lux (IR light on) | ||||||||
| Illumination Distance | 400 m (1,312.34 ft) (IR) | ||||||||
| Illuminator On/Off Control | Zoom Prio; Manual; Off | ||||||||
| Illuminator Number | 8 (IR) | ||||||||
| Wiper | Yes | ||||||||
| Lens | |||||||||
| Focal Length | 6.25 mm – 300 mm | ||||||||
| Max. Aperture | F1.4 – F4.5 | ||||||||
| Field of View | H: 62.4° – 1.7°; V: 36.6° – 1.0°; D: 69.8° – 2.0° | ||||||||
| Optical Zoom | 48× | ||||||||
| Focus Control | Auto; semi-auto; manual | ||||||||
| Close Focus Distance | 0.5 m – 2 m (1.64 ft – 6.56 ft) | ||||||||
| Iris Control | Auto; manual | ||||||||
| DORI Distance |
| ||||||||
| PTZ | |||||||||
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –45° to +90° | ||||||||
| Manual Control Speed | Pan: 0.1°/s – 160°/s Tilt: 0.1°/s – 60°/s | ||||||||
| Preset Speed | Pan: 160°/s; Tilt: 60°/s | ||||||||
| Preset | 300 | ||||||||
| Tour | 8 (up to 32 presets per tour) | ||||||||
| Pattern | 5 | ||||||||
| Scan | 5 | ||||||||
| Power-off Memory | Yes | ||||||||
| Idle Motion | Preset; Pattern; Tour; Scan | ||||||||
| PTZ Protocol | DH-SD; Pelco-P/D (auto recognition) | ||||||||
| Intelligence | |||||||||
| Video Metadata | Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction. | ||||||||
| IVS (Perimeter Protection) | Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification. | ||||||||
| Face Recognition | Yes | ||||||||
| Video | |||||||||
| Video Compression | H.265; H.264M; H.264H; MJPEG; Smart H.265; Smart H.264 | ||||||||
| Streaming Capability | 3 streams | ||||||||
| Resolution | 4M (2560 × 1440); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||||||
| Video Frame Rate | Main stream: 4M/1080p/960p/720p (1–50/60 fps) Sub stream 1: D1/VGA/CIF (1–25/30 fps) Sub stream 2: 1080p/960p/720p (1–25/30 fps) | ||||||||
| Bit Rate Control | CBR; VBR | ||||||||
| Video Bit Rate | H.264: 512–13056 kbps H.265: 204–7936 kbps | ||||||||
| Day/Night | Auto (ICR); Color; B/W | ||||||||
| BLC | Yes | ||||||||
| WDR | Yes (140 dB) | ||||||||
| HLC | Yes | ||||||||
| White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp | ||||||||
| Gain Control | Auto; manual | ||||||||
| Noise Reduction | 2D NR; 3D NR | ||||||||
| Motion Detection | Yes | ||||||||
| Region of Interest (RoI) | Yes | ||||||||
| Defog | Optical | ||||||||
| Digital Zoom | 16× | ||||||||
| Image Rotation | 180° | ||||||||
| Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view | ||||||||
| S/N Ratio | ≥55 dB | ||||||||
| Audio | |||||||||
| Audio Compression | G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; PCM | ||||||||
| Network | |||||||||
| Network Port | RJ-45 (10/100 Base-T) | ||||||||
| Network Protocol | HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; IGMP; RTP; PPPoE; RTMP; TCP | ||||||||
| Interoperability | ONVIF (Profile S&G&T); GB/T28181; CGI | ||||||||
| Streaming Method | Unicast; Multicast | ||||||||
| User/Host | 20 (total bandwidth: 64 M) | ||||||||
| Storage | FTP; Micro SD card (512 GB); NAS | ||||||||
| Browser | IE 7 and later versions Chrome 45 and later versions Firefox 52ESR and earlier versions Safari | ||||||||
| Management Software | Smart PSS; DSS; IVSS | ||||||||
| Mobile Client | iOS; Android | ||||||||
| Port | |||||||||
| Analog Output | 1 channel (CVBS output, BNC) | ||||||||
| RS-485 | 1 (baud rate: 1200 bps – 115200 bps) | ||||||||
| Audio Input | 1 channel (LINE IN, bare wire) | ||||||||
| Audio Output | 1 channel (LINE OUT, bare wire) | ||||||||
| Two-way Audio | Yes | ||||||||
| Alarm Input | 7 (on-off value input: 0–5 VDC) | ||||||||
| Alarm Output | 2 | ||||||||
| Alarm Linkage | Capture; preset; tour; pattern; recordings on SD card; alarm digital input; client E-map; send email | ||||||||
| Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; decoder state detection; memory card state detection; memory space detection; power exception detection | ||||||||
| Power | |||||||||
| Power Supply | 36 VDC, 5 A (± 25%) | ||||||||
| Power Consumption | Basic: 22 W Max.: 63 W (illuminator + wiper + PTZ) | ||||||||
| Environment | |||||||||
| Operating Temperature | –40 °C to +70 °C (–40 °F to 158 °F) | ||||||||
| Operating Humidity | ≤95% | ||||||||
| Protection | IP67; TVS 6000 V lightning proof; surge protection; voltage transient protection | ||||||||
| Structure | |||||||||
| Casing | ADC12 | ||||||||
| Product Dimensions | 344.6 mm × 252.2 mm × 499.8 mm (13.57" × 9.93" × 19.68") (L × W × H) | ||||||||
| Net Weight | 15.4 kg (33.95 lb) | ||||||||
| Gross Weight | 23.7 kg (52.25 lb) | ||||||||
