Measures surface temperature and turns a heat rise into an alarm.

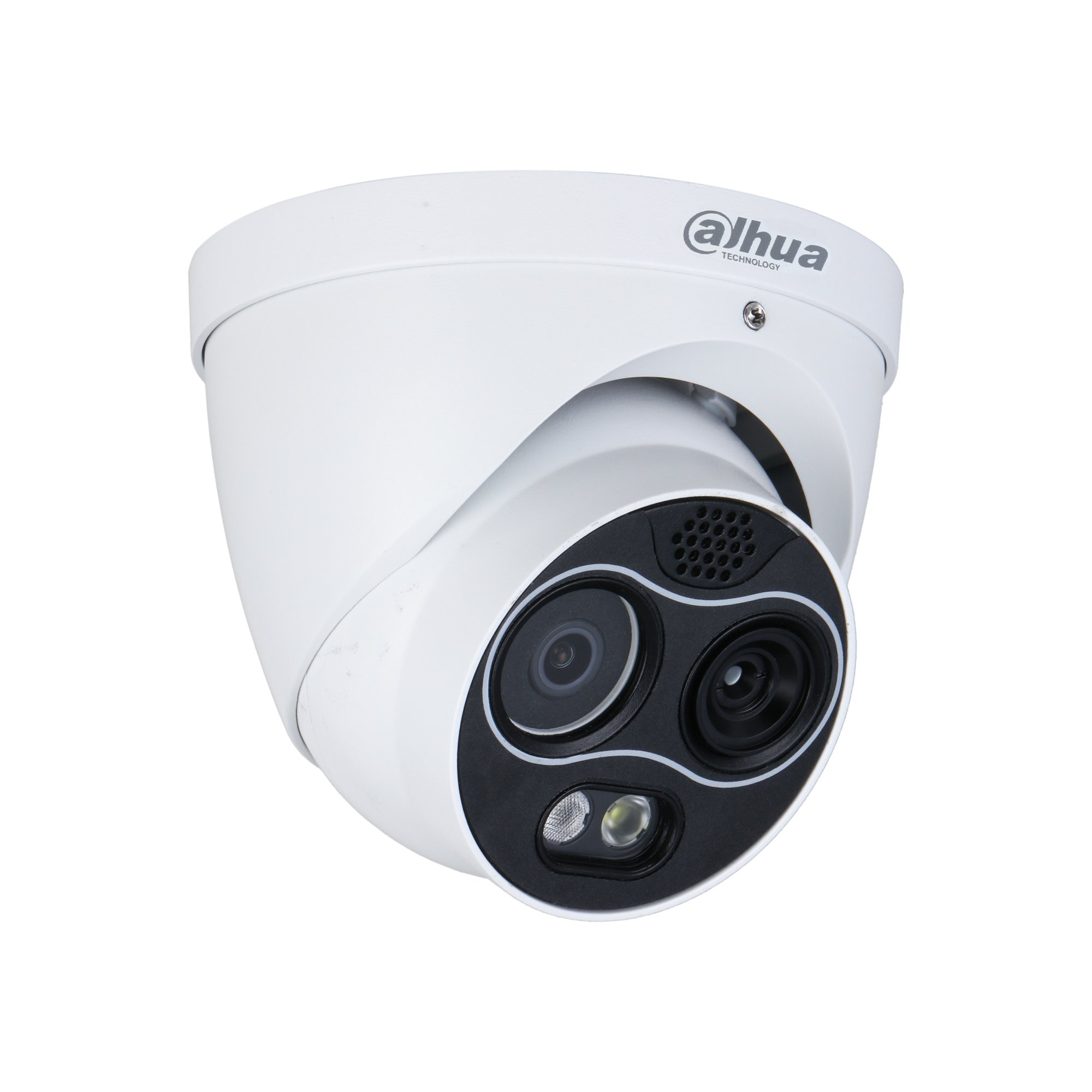

An eyeball camera that pairs an uncooled thermal detector with a 4 MP visible channel and measures temperature. It follows surface temperature through spot, line and area rules and sets off an alarm once the threshold is crossed.

4 MPResolution

256 × 192Thermal Resolution

40 mKThermal Sensitivity (NETD)

30 mIR LED Distance

IP67Protection Grade

12 VDC / PoEPower Supply

Key features

550°C

Wide measurement range

High temperature mode reads between 0 °C and 550 °C.

2°C

Measurement accuracy

Deviation stays within 2 °C.

12rules

Simultaneous measurement points

Spot, line and area rules run at the same time.

40mK

Fine heat difference

The low NETD tells small temperature differences apart.

4MP

Detail on the visible channel

The color sensor adds daytime detail to the thermal image.

18color palettes

Scene-matched rendering

It switches between palettes such as Whitehot, Blackhot and Ironrow.

IN DAILY USE

Turns a heat rise into an alarmWhen a hot spot appears it sets off an alarm and drives the strobe light and audio warning.

No focus setting neededThe athermalized thermal lens needs no focus adjustment once installed.

Tells unusual behavior apartIt recognizes smoking and phone-call behavior on site.

Thermal

Detector Type

Vanadium Oxide Uncooled FPA

Max. Resolution

256 × 192

Pixel Pitch

12 µm

Spectral Range

8 µm–14 µm

Thermal Sensitivity (NETD)

< 40 mK (@f/1.0, 25 Hz, 300 K)

Focal Length

Focal Length	2 mm	3.5 mm	7 mm
Field of View	H: 87.8°, V: 63.8°	H: 50.6°, V: 37.8°	H: 24°, V: 18°
Close Focus Distance	0.3 m (0.98 ft)	0.5 m (1.64 ft)	1.0 m (3.28 ft)
Effective Distance – Human (1.8 m × 0.5 m)	D: 83 m (272 ft) R: 21 m (69 ft) I: 11 m (36 ft)	D: 146 m (479 ft) R: 38 m (125 ft) I: 19 m (622 ft)	D: 292 m (958 ft) R: 75 m (246 ft) I: 38 m (125 ft)
Effective Distance – Vehicle (4.0 m × 1.4 m)	D: 222 m (728 ft) R: 55 m (80 ft) I: 27 m (89 ft)	D: 389 m (1,276 ft) R: 97 m (318 ft) I: 49 m (161 ft)	D: 778 m (2,552 ft) R: 194 m (636 ft) I: 97 m (318 ft)

Aperture

F1.0

Digital Detail Enhancement (DDE)

Yes

Digital Zoom

16×

AGC

Auto; Manual

Noise Reduction

2D NR; 3D NR

Image Flip

90°; 180°; 270°

Color Palettes

18 (Whitehot; Blackhot; Ironrow; Icefire; Fusion; Rainbow; Globow; Iconbow1; Iconbow2 etc.)

Fusion Mode

3 (Warm color; Cool color; Ironred)

Visible

Image Sensor

1/2.7" CMOS

Max. Resolution

2336 × 1752

Pixel

4 MP

Electronic Shutter Speed

1/30000 s–1 s

Min. Illumination

Color: 0.05 lux
Black & white: 0.005 lux
0 lux (IR on)

IR Illumination Distance

≥ 30 m (98.43 ft)

IR Illuminator On/Off Control

Auto; Manual

Focal Length

Focal Length	2 mm	4 mm	8 mm
Aperture	F2.2	F1.6	F2.0
Field of View	H: 94° V: 72° D: 116°	H: 71.2° V: 52° D: 92.6°	H: 33.4° V: 25° D: 41.9°
Close Focus Distance	0.3 m (0.98 ft)	1.0 m (3.28 ft)	2.5 m (8.2 ft)

Focus Control

Fixed

Day/Night

Auto (ICR); Color; B/W

BLC

Yes

WDR

DWDR

HLC

Yes

White Balance

Auto; Manual; Indoor; Outdoor; Tracking; Street lamp; Natural

AGC

Auto; Manual

Noise Reduction

2D NR; 3D NR

S/N Ratio

≥ 55 dB

Region of Interest (RoI)

Yes

Image Flip

90°; 180°; 270°

Exposure Compensation

Yes

Intelligence

General Intelligence

Tripwire; Intrusion

Advanced Intelligence

Heat Detection & Alarm
Cold & Hot Spot Trace
Human & Vehicle Classification
Smoking Detection
Call Detection

Temperature Range

Low Temperature Mode: –20°C to +150°C (–4°F to +302°F)
High Temperature Mode: 0°C to +550°C (+32°F to +1022°F)

Temperature Accuracy

Max (± 2°C, ± 2%); Operating Temperature: –20°C to +50°C (–4°F to +122°F)

Temperature Mode

Spot: 12; Line: 12; Area: 12; Supports 12 rules simultaneously

Video and Audio

Video Compression

H.265; H.264M; H.264H; H.264B; MJPEG

Resolution

Thermal:
Main Stream: 1280 × 960 (1.3M); XVGA (1024 × 768); VGA (640 × 480); 256 × 192; 1280 × 960 by default
Sub Stream: VGA (640 × 480); 256 × 192; 256 × 192 by default
Visual:
Main Stream: 2336 × 1752; 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576); 2336 × 1752 by default
Sub Stream: 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288); 352 × 288 by default

Frame Rate

Thermal:
50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default
60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default
Visual:
50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default
60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default

Audio Compression

G.711a; G.711mu; PCM

Network

Protocol

HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP

Edge Storage

Micro SD card (256 GB)

Interoperability

ONVIF; CGI

Browser

IE: IE8 and later
Google: 42 and earlier
Firefox: 42 and earlier

User/Host

Security

Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access

Certification

Certifications

CE: EN55032:2015; EN61000-3-2:2014
FCC: CFR 47 FCC Part15 Subpart B; ANSI C63.4-2014

Port

Network

1 × 10/100 M Ethernet port (RJ-45)

Audio Input

Audio Output

Alarm Input

Alarm Output

RS-485

1 pair

Power

Power Supply

12 VDC, 1.2 A (± 20%)
PoE

Power Consumption

Basic: < 6.5 W (LED off)
Max: < 13 W (LED on, heater on)

Environment

Operating Temperature

–30°C to +50°C (–22°F to +122°F)

Storage Temperature

–30°C to +70°C (–22°F to +158°F)

Operating Humidity

≤ 95%

Protection

IP67; anti-surge 6 kV; anti-electrostatic 6 kV (touched by objects); anti-electrostatic 8 kV (air)

Structure

Product Dimensions

122 mm × 122 mm × 112 mm (4.8" × 4.8" × 4.41")

Packaging Dimensions

155 mm × 155 mm × 135 mm (6.10" × 6.10" × 5.31")

Net Weight

≤ 0.85 kg (1.87 lb)

Gross Weight

≤ 1 kg (2.20 lb)

Temperature Measurement Range

Focal Length

Focal Length	2 mm	3.5 mm	7 mm
Min. Distance	0.5 m	1 m	3 m
Max. Distance	2.5 m	5 m	8 m
