Sees heat change and reports fire early.

An eyeball camera that pairs an uncooled vanadium oxide thermal detector with a 4 MP visible channel. It fuses the thermal and color images into one scene and tells hot spots, human and vehicle movement apart.

4 MPResolution

256 × 192Thermal Resolution

40 mKThermal Sensitivity (NETD)

30 mIR LED Distance

IP67Protection Grade

12 VDC / PoEPower Supply

Key features

256× 192

Thermal detector resolution

The uncooled VOx detector separates heat differences at every pixel.

40mK

Fine heat difference

The low NETD tells small temperature differences apart.

4MP

Detail on the visible channel

The color sensor adds daytime detail to the thermal image.

30m

Night illumination

The IR illuminator keeps the visible channel working in the dark.

18color palettes

Scene-matched rendering

It switches between palettes such as Whitehot, Blackhot and Ironrow.

6kV

A sealed housing

It blocks dust and water and withstands surges.

IN DAILY USE

Catches fire earlyWhen a hot spot appears it sets off an alarm and drives the strobe light and audio warning.

Tells unusual behavior apartIt recognizes smoking and phone-call behavior on site.

No adjustment after mountingThe fixed-focus lens needs no focus setting once installed.

Thermal

Detector Type

Vanadium Oxide Uncooled FPA

Max. Resolution

256 × 192

Pixel Pitch

12 µm

Spectral Range

8 µm–14 µm

Thermal Sensitivity (NETD)

< 40 mK (@f/1.0, 25 Hz, 300 K)

Focal Length

2 mm, 3.5 mm, 7 mm

Field of View

Focal Length	2 mm	3.5 mm	7 mm
Field of View	H: 87.8°, V: 63.8°	H: 50.6°, V: 37.8°	H: 24°, V: 18°

Close Focus Distance

Focal Length	2 mm	3.5 mm	7 mm
Close Focus Distance	0.3 m (0.98 ft)	0.5 m (1.64 ft)	1.0 m (3.28 ft)

Effective Distance – Human (1.8 m × 0.5 m)

Focal Length	Detect	Recognize	Identify
2 mm	83 m	21 m	10 m
3.5 mm	146 m	36 m	18 m
7 mm	292 m	73 m	36 m

Effective Distance – Vehicle (4.0 m × 1.4 m)

Focal Length	Detect	Recognize	Identify
2 mm	256 m	64 m	32 m
3.5 mm	447 m	112 m	56 m
7 mm	894 m	224 m	112 m

Aperture

F1.0

Digital Detail Enhancement (DDE)

Yes

Digital Zoom

16×

AGC

Auto; Manual

Noise Reduction

2D NR; 3D NR

Image Flip

90°; 180°; 270°

Color Palettes

18 (Whitehot; Blackhot; Ironrow; Icefire; Fusion; Rainbow; Globow; Iconbow1; Iconbow2, etc.)

Fusion Mode

3 (Warm color; Cool color; Ironred)

Visible

Image Sensor

1/2.7" CMOS

Max. Resolution

2336 × 1752

Pixel

4 MP

Electronic Shutter Speed

1/30000 s–1 s

Min. Illumination

Color: 0.05 lux
Black & white: 0.005 lux
0 lux (IR on)

IR Illumination Distance

≥30 m (98.43 ft)

IR Illuminator On/Off Control

Auto; Manual

Focal Length

2 mm, 4 mm, 8 mm

Aperture

Focal Length	2 mm	4 mm	8 mm
Aperture	F2.2	F1.6	F2.0

Field of View

Focal Length	2 mm	4 mm	8 mm
Field of View	H: 94°, V: 72°, D: 116°	H: 71.2°, V: 52°, D: 92.6°	H: 33.4°, V: 25°, D: 41.9°

Focus Control

Fixed

Close Focus Distance

Focal Length	2 mm	4 mm	8 mm
Close Focus Distance	0.3 m (0.98 ft)	1.0 m (3.28 ft)	2.5 m (8.2 ft)

Day/Night

Auto (ICR); Color and B/W

BLC

Yes

WDR

DWDR

HLC

Yes

White Balance

Auto; Manual; Indoor; Outdoor; Tracking; Street lamp; Natural

AGC

Auto; Manual

Noise Reduction

2D NR; 3D NR

S/N Ratio

≥ 55 dB

Region of Interest (RoI)

Yes

Image Flip

90°; 180°; 270°

Exposure Compensation

Yes

Intelligence

General Intelligence

Tripwire; Intrusion

Advanced Intelligence

Fire Detection & Alarm
Cold & Hot Spot Trace
Human & Vehicle Classification

Smoking Detection

Yes

Call Detection

Yes

Video and Audio

Video Compression

H.265; H.264; H.264H; MJPEG

Resolution (Thermal)

Main Stream: 1280 × 960 (1.3M); XVGA (1024 × 768); VGA (640 × 480); 256 × 192 (1280 × 960 by default)
Sub Stream: VGA (640 × 480); 256 × 192 (256 × 192 by default)

Resolution (Visible)

Main Stream: 2336 × 1752; 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576) (2336 × 1752 by default)
Sub Stream: 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288) (352 × 288 by default)

Frame Rate (Thermal)

50 Hz: main stream 1 fps–25 fps (25 fps by default), sub stream 1 fps–25 fps (15 fps by default)
60 Hz: main stream 1 fps–30 fps (30 fps by default), sub stream 1 fps–30 fps (15 fps by default)

Frame Rate (Visible)

Audio Compression

G.711a; G.711mu; PCM

Network

Protocol

HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP

Edge Storage

Micro SD card (256 GB)

Interoperability

ONVIF; CGI

Browser

IE: IE8 and later, and explorers with IE core
Google: 42 and earlier
Firefox: 42 and earlier

User/Host

Security

Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access

Certification

Certifications

CE: EN55032:2015; EN61000-3-2:2014
FCC: CFR 47 FCC Part15 subpart B; ANSI C63.4-2014

Port

Network

1 × 10 M/100 M Ethernet port (RJ-45)

Audio Input

Audio Output

Alarm Input

Alarm Output

RS-485

1 pair

Power

Power Supply

12 VDC, 1.2 A (±20%); PoE

Power Consumption

Basic: < 4.6 W (12 VDC, illuminator off); 5.7 W (PoE)
Max: < 6.8 W (12 VDC, illuminator on, speaker on); 8.3 W (PoE)

Environment

Operating Temperature

–30°C to +60°C (–22°F to +140°F)

Storage Temperature

–30°C to +70°C (–22°F to +158°F)

Operating Humidity

≤ 95%

Protection

IP67; anti-surge 6 kV; anti-electrostatic 6 kV (touched by objects); anti-electrostatic 8 kV (air)

Structure

Product Dimensions

122 mm × 122 mm × 112 mm (4.8" × 4.8" × 4.41")

Packaging Dimensions

155 mm × 155 mm × 135 mm (6.10" × 6.10" × 5.31")

Net Weight

≤ 0.85 kg (1.87 lb)

Gross Weight

≤ 1 kg (2.20 lb)

Heat Detection Distance

Focal Length

Focal Length	Max. Distance
2 mm	25 m
3.5 mm	45 m
7 mm	86 m

Temperature Measurement Range

Min. Distance

Focal Length	2 mm	3.5 mm	7 mm
Min. Distance	0.5 m	1 m	2 m

Max. Distance

Focal Length	2 mm	3.5 mm	7 mm
Max. Distance	2.5 m	5 m	8 m

Sees heat change and reports fire early.

4 MPResolution

256 × 192Thermal Resolution

40 mKThermal Sensitivity (NETD)

30 mIR LED Distance

IP67Protection Grade

12 VDC / PoEPower Supply

Key features

256× 192

Thermal detector resolution

The uncooled VOx detector separates heat differences at every pixel.

40mK

Fine heat difference

The low NETD tells small temperature differences apart.

4MP

Detail on the visible channel

The color sensor adds daytime detail to the thermal image.

30m

Night illumination

The IR illuminator keeps the visible channel working in the dark.

18color palettes

Scene-matched rendering

It switches between palettes such as Whitehot, Blackhot and Ironrow.

6kV

A sealed housing

It blocks dust and water and withstands surges.

IN DAILY USE

Catches fire earlyWhen a hot spot appears it sets off an alarm and drives the strobe light and audio warning.

Tells unusual behavior apartIt recognizes smoking and phone-call behavior on site.

No adjustment after mountingThe fixed-focus lens needs no focus setting once installed.

Thermal

Detector Type

Vanadium Oxide Uncooled FPA

Max. Resolution

256 × 192

Pixel Pitch

12 µm

Spectral Range

8 µm–14 µm

Thermal Sensitivity (NETD)

< 40 mK (@f/1.0, 25 Hz, 300 K)

Focal Length

2 mm, 3.5 mm, 7 mm

Field of View

Focal Length	2 mm	3.5 mm	7 mm
Field of View	H: 87.8°, V: 63.8°	H: 50.6°, V: 37.8°	H: 24°, V: 18°

Close Focus Distance

Focal Length	2 mm	3.5 mm	7 mm
Close Focus Distance	0.3 m (0.98 ft)	0.5 m (1.64 ft)	1.0 m (3.28 ft)

Effective Distance – Human (1.8 m × 0.5 m)

Focal Length	Detect	Recognize	Identify
2 mm	83 m	21 m	10 m
3.5 mm	146 m	36 m	18 m
7 mm	292 m	73 m	36 m

Effective Distance – Vehicle (4.0 m × 1.4 m)

Focal Length	Detect	Recognize	Identify
2 mm	256 m	64 m	32 m
3.5 mm	447 m	112 m	56 m
7 mm	894 m	224 m	112 m

Aperture

F1.0

Digital Detail Enhancement (DDE)

Yes

Digital Zoom

16×

AGC

Auto; Manual

Noise Reduction

2D NR; 3D NR

Image Flip

90°; 180°; 270°

Color Palettes

18 (Whitehot; Blackhot; Ironrow; Icefire; Fusion; Rainbow; Globow; Iconbow1; Iconbow2, etc.)

Fusion Mode

3 (Warm color; Cool color; Ironred)

Visible

Image Sensor

1/2.7" CMOS

Max. Resolution

2336 × 1752

Pixel

4 MP

Electronic Shutter Speed

1/30000 s–1 s

Min. Illumination

Color: 0.05 lux
Black & white: 0.005 lux
0 lux (IR on)

IR Illumination Distance

≥30 m (98.43 ft)

IR Illuminator On/Off Control

Auto; Manual

Focal Length

2 mm, 4 mm, 8 mm

Aperture

Focal Length	2 mm	4 mm	8 mm
Aperture	F2.2	F1.6	F2.0

Field of View

Focal Length	2 mm	4 mm	8 mm
Field of View	H: 94°, V: 72°, D: 116°	H: 71.2°, V: 52°, D: 92.6°	H: 33.4°, V: 25°, D: 41.9°

Focus Control

Fixed

Close Focus Distance

Focal Length	2 mm	4 mm	8 mm
Close Focus Distance	0.3 m (0.98 ft)	1.0 m (3.28 ft)	2.5 m (8.2 ft)

Day/Night

Auto (ICR); Color and B/W

BLC

Yes

WDR

DWDR

HLC

Yes

White Balance

Auto; Manual; Indoor; Outdoor; Tracking; Street lamp; Natural

AGC

Auto; Manual

Noise Reduction

2D NR; 3D NR

S/N Ratio

≥ 55 dB

Region of Interest (RoI)

Yes

Image Flip

90°; 180°; 270°

Exposure Compensation

Yes

Intelligence

General Intelligence

Tripwire; Intrusion

Advanced Intelligence

Fire Detection & Alarm
Cold & Hot Spot Trace
Human & Vehicle Classification

Smoking Detection

Yes

Call Detection

Yes

Video and Audio

Video Compression

H.265; H.264; H.264H; MJPEG

Resolution (Thermal)

Main Stream: 1280 × 960 (1.3M); XVGA (1024 × 768); VGA (640 × 480); 256 × 192 (1280 × 960 by default)
Sub Stream: VGA (640 × 480); 256 × 192 (256 × 192 by default)

Resolution (Visible)

Frame Rate (Thermal)

Frame Rate (Visible)

Audio Compression

G.711a; G.711mu; PCM

Network

Protocol

HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP

Edge Storage

Micro SD card (256 GB)

Interoperability

ONVIF; CGI

Browser

IE: IE8 and later, and explorers with IE core
Google: 42 and earlier
Firefox: 42 and earlier

User/Host

Security

Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access

Certification

Certifications

CE: EN55032:2015; EN61000-3-2:2014
FCC: CFR 47 FCC Part15 subpart B; ANSI C63.4-2014

Port

Network

1 × 10 M/100 M Ethernet port (RJ-45)

Audio Input

Audio Output

Alarm Input

Alarm Output

RS-485

1 pair

Power

Power Supply

12 VDC, 1.2 A (±20%); PoE

Power Consumption

Basic: < 4.6 W (12 VDC, illuminator off); 5.7 W (PoE)
Max: < 6.8 W (12 VDC, illuminator on, speaker on); 8.3 W (PoE)

Environment

Operating Temperature

–30°C to +60°C (–22°F to +140°F)

Storage Temperature

–30°C to +70°C (–22°F to +158°F)

Operating Humidity

≤ 95%

Protection

IP67; anti-surge 6 kV; anti-electrostatic 6 kV (touched by objects); anti-electrostatic 8 kV (air)

Structure

Product Dimensions

122 mm × 122 mm × 112 mm (4.8" × 4.8" × 4.41")

Packaging Dimensions

155 mm × 155 mm × 135 mm (6.10" × 6.10" × 5.31")

Net Weight

≤ 0.85 kg (1.87 lb)

Gross Weight

≤ 1 kg (2.20 lb)

Heat Detection Distance

Focal Length

Focal Length	Max. Distance
2 mm	25 m
3.5 mm	45 m
7 mm	86 m

Temperature Measurement Range

Min. Distance

Focal Length	2 mm	3.5 mm	7 mm
Min. Distance	0.5 m	1 m	2 m

Max. Distance

Focal Length	2 mm	3.5 mm	7 mm
Max. Distance	2.5 m	5 m	8 m

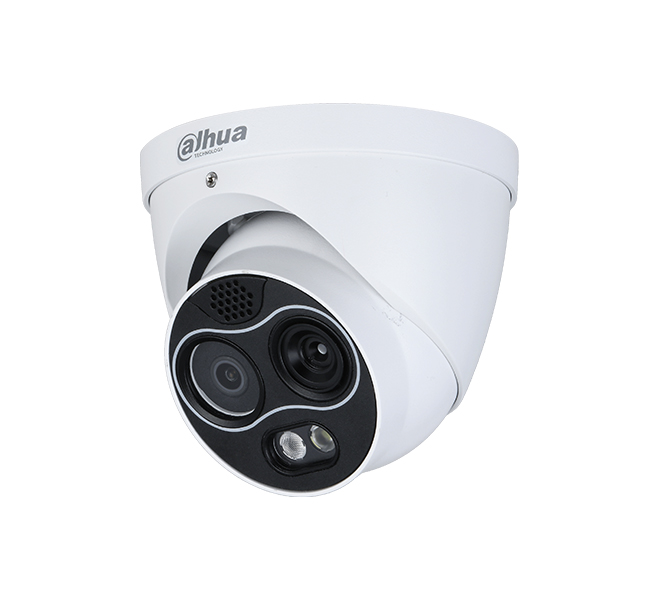

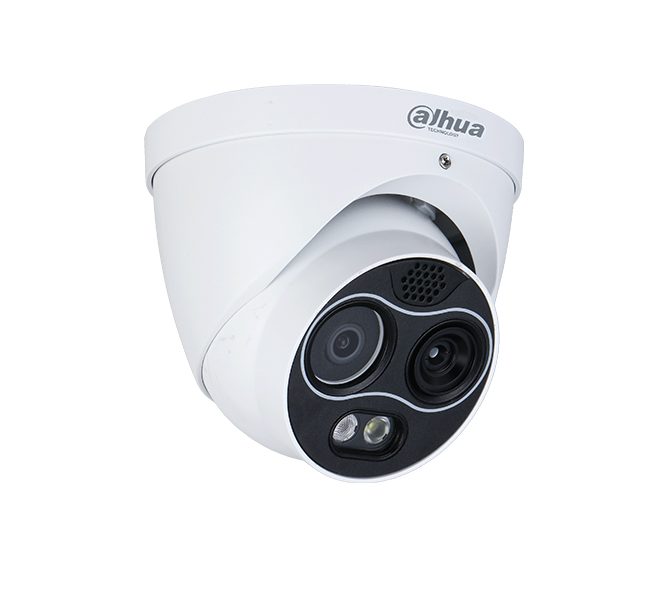

WizSense Thermal Network Eyeball Camera

Datasheet

TPC-DF1241-T-S8

A&E Dökümanları

TPC-DF1241-T-S8

Kullanım Kılavuzu

TPC-DF1241-T

TPC-DF1241-T

TPC-DF1241-T

Teknik Çizim

TPC-DF1241-T

TPC-DF1241-T

Fotoğraf

TPC-DF1241-T

TPC-DF1241-T

TPC-DF1241-T

Similar Products

WizSense Thermal Network Eyeball Camera

WizSense Thermal Network Eyeball Camera

WizSense Thermal Network Eyeball Camera

Datasheet

TPC-DF1241-T-S8

A&E Dökümanları

TPC-DF1241-T-S8

Kullanım Kılavuzu

TPC-DF1241-T

TPC-DF1241-T

TPC-DF1241-T

Teknik Çizim

TPC-DF1241-T

TPC-DF1241-T

Fotoğraf

TPC-DF1241-T

TPC-DF1241-T

TPC-DF1241-T

Similar Products

WizSense Thermal Network Eyeball Camera

WizSense Thermal Network Eyeball Camera
