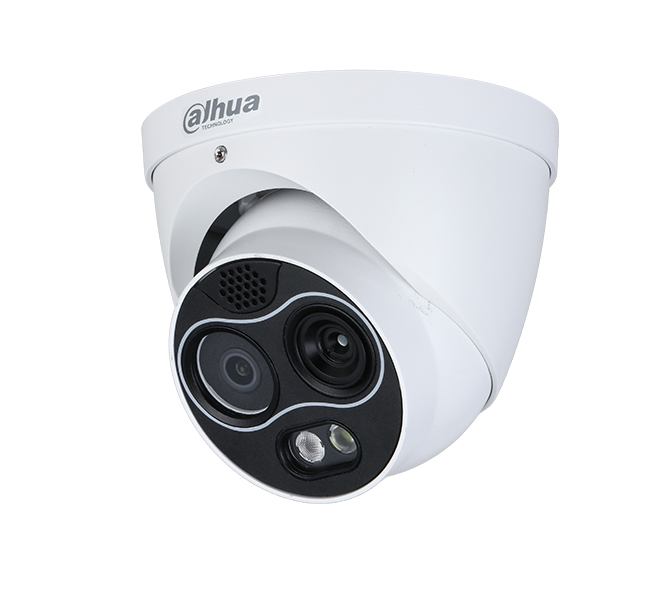

Fuses thermal and color images and picks out the hot spot.

An eyeball camera that pairs an uncooled vanadium oxide thermal detector with a 4 MP visible channel. The athermalized thermal lens needs no focus setting, and the camera tells hot spots, human and vehicle movement apart.

4 MPResolution

256 × 192Thermal Resolution

50 mKThermal Sensitivity (NETD)

30 mIR LED Distance

IP67Protection Grade

12 VDC / PoEPower Supply

Key features

256× 192

Thermal detector resolution

The uncooled VOx detector separates heat differences at every pixel.

50mK

Fine heat difference

The low NETD tells small temperature differences apart.

4MP

Detail on the visible channel

The color sensor adds daytime detail to the thermal image.

30m

Night illumination

The IR illuminator keeps the visible channel working in the dark.

18color palettes

Scene-matched rendering

It switches between palettes such as Whitehot, Blackhot and Ironrow.

13W

Low draw

Even with the LED and heater on, its consumption stays limited.

IN DAILY USE

No focus setting neededThe athermalized thermal lens needs no focus adjustment once installed.

Catches fire earlyWhen a hot spot appears it sets off an alarm and drives the strobe light and audio warning.

Wiring down to one cablePoE carries power and data over the same Ethernet cable.

Thermal

Detector Type

Vanadium Oxide Uncooled FPA

Max. Resolution

256 × 192

Pixel Pitch

12 µm

Spectral Range

8 µm–14 µm

Thermal Sensitivity (NETD)

< 50 mK (@f/1.0, 25 Hz, 300 K)

Thermal Lens

Focal Length	2 mm	3.5 mm	7 mm
Field of View	H: 87.8°, V: 63.8°	H: 50.6°, V: 37.8°	H: 24°, V: 18°
Close Focus Distance	0.3 m (0.98 ft)	0.5 m (1.64 ft)	1.0 m (3.28 ft)
Effective Distance – Human (1.8 m × 0.5 m)	D: 83 m (272 ft) R: 21 m (69 ft) I: 11 m (36 ft)	D: 146 m (479 ft) R: 38 m (125 ft) I: 19 m	D: 292 m (958 ft) R: 75 m (246 ft) I: 38 m (125 ft)
Effective Distance – Vehicle (4.0 m × 1.4 m)	D: 222 m (728 ft) R: 55 m I: 27 m (89 ft)	D: 389 m (1,276 ft) R: 97 m (318 ft) I: 49 m (161 ft)	D: 778 m (2,552 ft) R: 194 m (636 ft) I: 97 m (318 ft)

Aperture

F1.0

Digital Detail Enhancement (DDE)

Yes

Digital Zoom

16×

AGC

Auto; Manual

Noise Reduction

2D NR; 3D NR

Image Flip

90°; 180°; 270°

Color Palettes

18 (Whitehot; Blackhot; Ironrow; Icefire; Fusion; Rainbow; Globow; Iconbow1; Iconbow2, etc.)

Fusion Mode

3 (Warm color; Cool color; Ironred)

Visible

Image Sensor

1/2.7" CMOS

Max. Resolution

2336 × 1752

Pixel

4 MP

Electronic Shutter Speed

1/30000 s–1 s

Min. Illumination

Color: 0.05 lux
Black & white: 0.005 lux
0 lux (IR on)

IR Illumination Distance

≥30 m (98.43 ft)

IR Illuminator On/Off Control

Auto; Manual

Visible Lens

Focal Length	2 mm	4 mm	8 mm
Aperture	F2.2	F1.6	F2.0
Field of View	H: 94°, V: 72°, D: 116°	H: 71.2°, V: 52°, D: 92.6°	H: 33.4°, V: 25°, D: 41.9°
Close Focus Distance	0.3 m (0.98 ft)	1.0 m (3.28 ft)	2.5 m (8.2 ft)

Focus Control

Fixed

Day/Night

Auto (ICR); Color and B/W

BLC

Yes

WDR

DWDR

HLC

Yes

White Balance

Auto; Manual; Indoor; Outdoor; Tracking; Street lamp; Natural

AGC

Auto; Manual

Noise Reduction

2D NR; 3D NR

S/N Ratio

≥ 55 dB

Region of Interest (RoI)

Yes

Image Flip

90°; 180°; 270°

Exposure Compensation

Yes

Intelligence

General Intelligence

Tripwire; Intrusion

Advanced Intelligence

Fire Detection & Alarm
Cold & Hot Spot Trace
Human & Vehicle Classification

Smoking Detection

Yes

Call Detection

Yes

Video and Audio

Video Compression

H.265; H.264M; H.264H; H.264B; MJPEG

Resolution (Thermal)

Main Stream: 1280 × 960; 1024 × 768; 640 × 480; 256 × 192 (default: 1280 × 960)
Sub Stream: 640 × 480; 256 × 192 (default: 256 × 192)

Resolution (Visual)

Main Stream: 2336 × 1752; 1080p; 720p; D1 (default: 2336 × 1752)
Sub Stream: 720p; D1; CIF (default: 352 × 288)

Frame Rate (Thermal)

50 Hz: main stream 1–25 fps (default: 25), sub stream 1–25 fps (default: 15)
60 Hz: main stream 1–30 fps (default: 30), sub stream 1–30 fps (default: 15)

Frame Rate (Visual)

50 Hz: main stream 1–25 fps (default: 25), sub stream 1–25 fps (default: 15)
60 Hz: main stream 1–30 fps (default: 30), sub stream 1–30 fps (default: 15)

Audio Compression

G.711a; G.711mu; PCM

Network

Protocol

HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP

Edge Storage

Micro SD card (256 GB)

Interoperability

ONVIF; CGI

Browser

IE8 and later; explorer with IE core
Google 42 and earlier
Firefox 42 and earlier

User/Host

Up to 10 users

Security

Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access

Certification

Certifications

CE: EN55032:2015; EN61000-3-2:2014
FCC: CFR 47 FCC Part15 Subpart B; ANSI C63.4-2014

Port

Network

1 × RJ-45 (10/100 Mbps Ethernet)

Audio Input

Audio Output

Alarm Input

Alarm Output

RS-485

1 pair

Power

Power Supply

12 VDC, 1.2 A (±20%); PoE

Power Consumption

Basic: < 6.5 W (LED off)
Max: < 13 W (LED on, heater on)

Environment

Operating Temperature

–30°C to +50°C (–22°F to +122°F)

Storage Temperature

–30°C to +70°C (–22°F to +158°F)

Operating Humidity

≤ 95%

Protection

IP67; anti-surge 6 kV; anti-electrostatic 6 kV (touched by objects), 8 kV (air)

Structure

Product Dimensions

122 mm × 122 mm × 112 mm (4.8" × 4.8" × 4.41")

Packaging Dimensions

155 mm × 155 mm × 135 mm (6.10" × 6.10" × 5.31")

Net Weight

≤ 0.85 kg (1.87 lb)

Gross Weight

≤ 1 kg (2.20 lb)

IVS Range

Human (1.8 m × 0.5 m)

Focal Length	2 mm	3.5 mm	7 mm
Range	14 m	24.5 m	49 m

Vehicle (4.0 m × 1.4 m)

Focal Length	2 mm	3.5 mm	7 mm
Range	42 m	72.5 m	146.5 m

Fuses thermal and color images and picks out the hot spot.

4 MPResolution

256 × 192Thermal Resolution

50 mKThermal Sensitivity (NETD)

30 mIR LED Distance

IP67Protection Grade

12 VDC / PoEPower Supply

Key features

256× 192

Thermal detector resolution

The uncooled VOx detector separates heat differences at every pixel.

50mK

Fine heat difference

The low NETD tells small temperature differences apart.

4MP

Detail on the visible channel

The color sensor adds daytime detail to the thermal image.

30m

Night illumination

The IR illuminator keeps the visible channel working in the dark.

18color palettes

Scene-matched rendering

It switches between palettes such as Whitehot, Blackhot and Ironrow.

13W

Low draw

Even with the LED and heater on, its consumption stays limited.

IN DAILY USE

No focus setting neededThe athermalized thermal lens needs no focus adjustment once installed.

Catches fire earlyWhen a hot spot appears it sets off an alarm and drives the strobe light and audio warning.

Wiring down to one cablePoE carries power and data over the same Ethernet cable.

Thermal

Detector Type

Vanadium Oxide Uncooled FPA

Max. Resolution

256 × 192

Pixel Pitch

12 µm

Spectral Range

8 µm–14 µm

Thermal Sensitivity (NETD)

< 50 mK (@f/1.0, 25 Hz, 300 K)

Thermal Lens

Focal Length	2 mm	3.5 mm	7 mm
Field of View	H: 87.8°, V: 63.8°	H: 50.6°, V: 37.8°	H: 24°, V: 18°
Close Focus Distance	0.3 m (0.98 ft)	0.5 m (1.64 ft)	1.0 m (3.28 ft)
Effective Distance – Human (1.8 m × 0.5 m)	D: 83 m (272 ft) R: 21 m (69 ft) I: 11 m (36 ft)	D: 146 m (479 ft) R: 38 m (125 ft) I: 19 m	D: 292 m (958 ft) R: 75 m (246 ft) I: 38 m (125 ft)
Effective Distance – Vehicle (4.0 m × 1.4 m)	D: 222 m (728 ft) R: 55 m I: 27 m (89 ft)	D: 389 m (1,276 ft) R: 97 m (318 ft) I: 49 m (161 ft)	D: 778 m (2,552 ft) R: 194 m (636 ft) I: 97 m (318 ft)

Aperture

F1.0

Digital Detail Enhancement (DDE)

Yes

Digital Zoom

16×

AGC

Auto; Manual

Noise Reduction

2D NR; 3D NR

Image Flip

90°; 180°; 270°

Color Palettes

18 (Whitehot; Blackhot; Ironrow; Icefire; Fusion; Rainbow; Globow; Iconbow1; Iconbow2, etc.)

Fusion Mode

3 (Warm color; Cool color; Ironred)

Visible

Image Sensor

1/2.7" CMOS

Max. Resolution

2336 × 1752

Pixel

4 MP

Electronic Shutter Speed

1/30000 s–1 s

Min. Illumination

Color: 0.05 lux
Black & white: 0.005 lux
0 lux (IR on)

IR Illumination Distance

≥30 m (98.43 ft)

IR Illuminator On/Off Control

Auto; Manual

Visible Lens

Focal Length	2 mm	4 mm	8 mm
Aperture	F2.2	F1.6	F2.0
Field of View	H: 94°, V: 72°, D: 116°	H: 71.2°, V: 52°, D: 92.6°	H: 33.4°, V: 25°, D: 41.9°
Close Focus Distance	0.3 m (0.98 ft)	1.0 m (3.28 ft)	2.5 m (8.2 ft)

Focus Control

Fixed

Day/Night

Auto (ICR); Color and B/W

BLC

Yes

WDR

DWDR

HLC

Yes

White Balance

Auto; Manual; Indoor; Outdoor; Tracking; Street lamp; Natural

AGC

Auto; Manual

Noise Reduction

2D NR; 3D NR

S/N Ratio

≥ 55 dB

Region of Interest (RoI)

Yes

Image Flip

90°; 180°; 270°

Exposure Compensation

Yes

Intelligence

General Intelligence

Tripwire; Intrusion

Advanced Intelligence

Fire Detection & Alarm
Cold & Hot Spot Trace
Human & Vehicle Classification

Smoking Detection

Yes

Call Detection

Yes

Video and Audio

Video Compression

H.265; H.264M; H.264H; H.264B; MJPEG

Resolution (Thermal)

Main Stream: 1280 × 960; 1024 × 768; 640 × 480; 256 × 192 (default: 1280 × 960)
Sub Stream: 640 × 480; 256 × 192 (default: 256 × 192)

Resolution (Visual)

Main Stream: 2336 × 1752; 1080p; 720p; D1 (default: 2336 × 1752)
Sub Stream: 720p; D1; CIF (default: 352 × 288)

Frame Rate (Thermal)

50 Hz: main stream 1–25 fps (default: 25), sub stream 1–25 fps (default: 15)
60 Hz: main stream 1–30 fps (default: 30), sub stream 1–30 fps (default: 15)

Frame Rate (Visual)

50 Hz: main stream 1–25 fps (default: 25), sub stream 1–25 fps (default: 15)
60 Hz: main stream 1–30 fps (default: 30), sub stream 1–30 fps (default: 15)

Audio Compression

G.711a; G.711mu; PCM

Network

Protocol

HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP

Edge Storage

Micro SD card (256 GB)

Interoperability

ONVIF; CGI

Browser

IE8 and later; explorer with IE core
Google 42 and earlier
Firefox 42 and earlier

User/Host

Up to 10 users

Security

Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access

Certification

Certifications

CE: EN55032:2015; EN61000-3-2:2014
FCC: CFR 47 FCC Part15 Subpart B; ANSI C63.4-2014

Port

Network

1 × RJ-45 (10/100 Mbps Ethernet)

Audio Input

Audio Output

Alarm Input

Alarm Output

RS-485

1 pair

Power

Power Supply

12 VDC, 1.2 A (±20%); PoE

Power Consumption

Basic: < 6.5 W (LED off)
Max: < 13 W (LED on, heater on)

Environment

Operating Temperature

–30°C to +50°C (–22°F to +122°F)

Storage Temperature

–30°C to +70°C (–22°F to +158°F)

Operating Humidity

≤ 95%

Protection

IP67; anti-surge 6 kV; anti-electrostatic 6 kV (touched by objects), 8 kV (air)

Structure

Product Dimensions

122 mm × 122 mm × 112 mm (4.8" × 4.8" × 4.41")

Packaging Dimensions

155 mm × 155 mm × 135 mm (6.10" × 6.10" × 5.31")

Net Weight

≤ 0.85 kg (1.87 lb)

Gross Weight

≤ 1 kg (2.20 lb)

IVS Range

Human (1.8 m × 0.5 m)

Focal Length	2 mm	3.5 mm	7 mm
Range	14 m	24.5 m	49 m

Vehicle (4.0 m × 1.4 m)

Focal Length	2 mm	3.5 mm	7 mm
Range	42 m	72.5 m	146.5 m

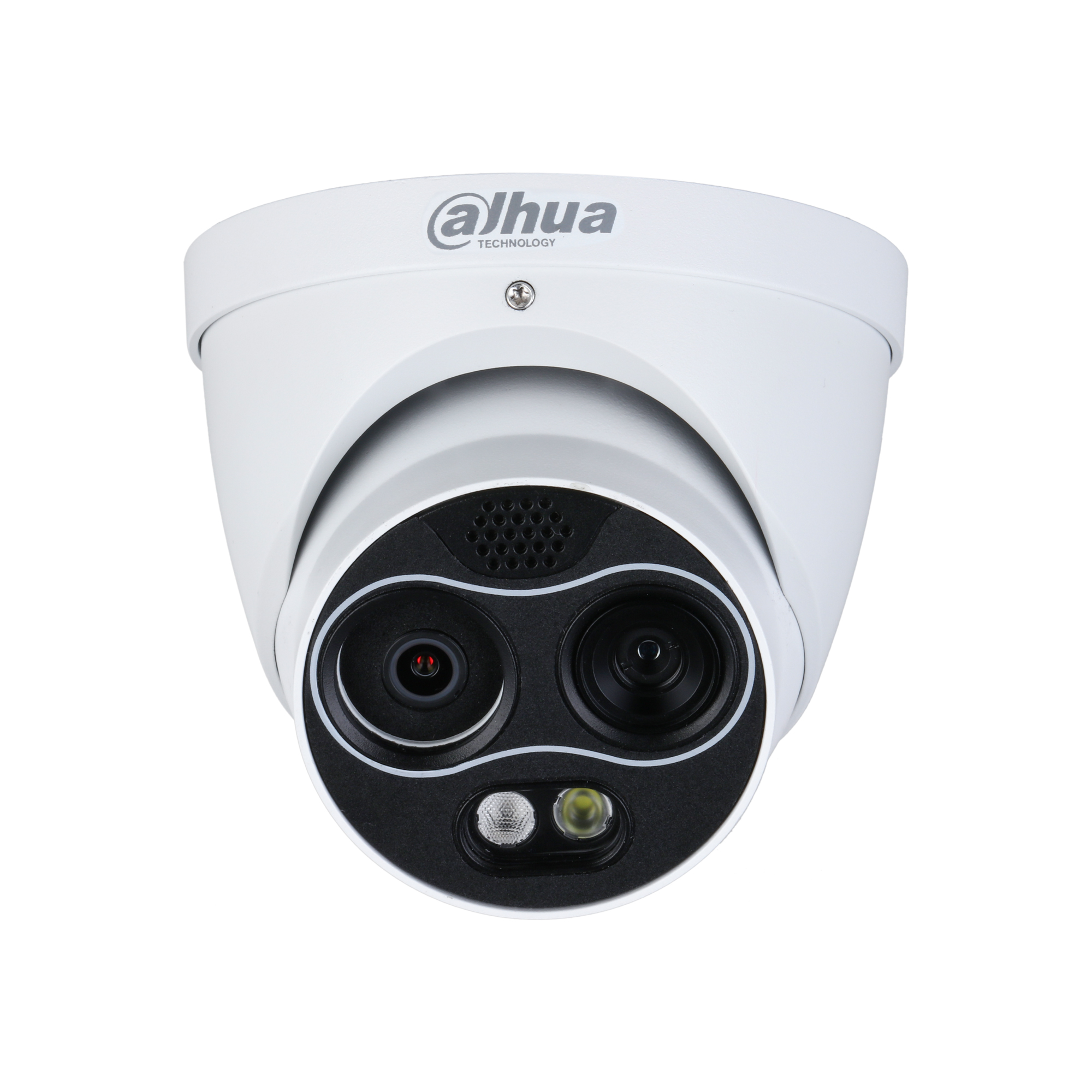

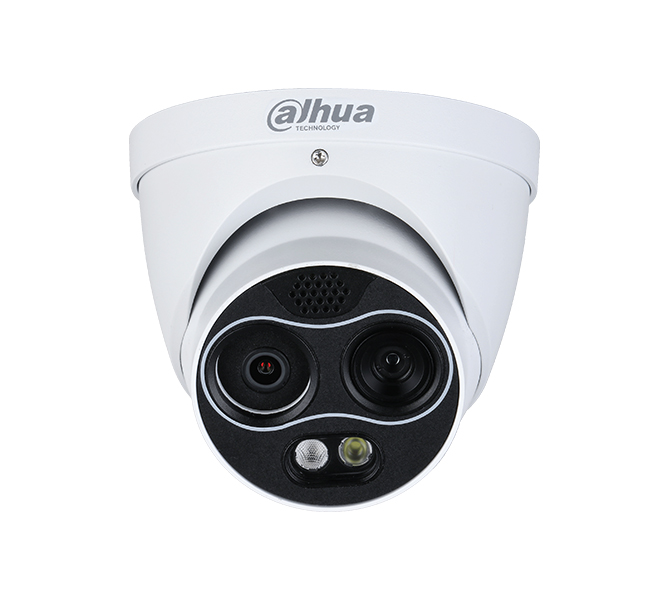

WizSense Thermal Network Eyeball Camera
