Holds the loudspeaker line firmly on the panel with its latch lock

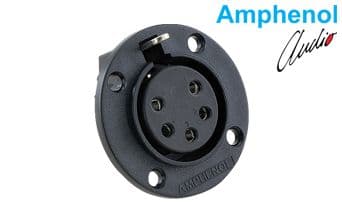

A flanged loudspeaker connector with female socket contacts that mounts to a panel in audio and lighting systems. The keyed body forces mating in a single orientation and the latch lock keeps the connection in place.
5pin count
Femalecontact gender
Chassismounting type
20 Arated current
IP40protection grade
Key features
TerminationThe solder cup contacts accept wire gauges up to 12 AWG.
Locking and keyingThe latch lock retains the plug and the keyed structure prevents mating in the wrong orientation. The body is unshielded.
Body and contactsThe modified polyphenylene ether (PPE) body comes in black and the insulator uses polybutylene terephthalate (PBT). The brass contacts carry tin plating.
Environment and lifeIt carries IP40 protection grade, operates between -25 °C and +75 °C and endures 1000 mating cycles.
Current and complianceIt carries a 20 A rated current, meets the UL94 V-0 flame rating and complies with RoHS.
Usage areasAudio systems·Stage lighting
