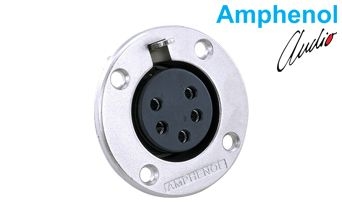

Stock Code: EP-5-13-P
| General Characteristics | |
|---|---|
| Part Number | EP-5-13P |
| Series | EP Series Speaker Connector |
| Type | Female chassis (panel) mount connector, round flange, metal shell |
| Number of Contacts | 5 |
| Contact Type | Machined contacts |
| Termination | Solder |
| Wire Gauge (stranded wire) | 12 AWG |
| Finish | Satin Nickel |
| Applications | Radio and TV broadcasting; professional studios; sound reinforcement and PA systems; musicians and DJs; special applications |
| Electrical Characteristics | |
| Service Voltage (RMS) | 200 V (not suitable for domestic applications above 50 V) |
| Test Voltage (AC RMS) | 1600 V |
| Current Carrying Capacity | 20 A |
| Typical Contact Resistance | ≤ 3 mΩ |
| Insulation Resistance | ≥ 1000 MΩ |
| Mechanical and Climatic Characteristics | |
| Protection Class | IP40 |
| Operating Temperature | -25°C to +75°C (-13°F to +167°F) |
| Mechanical Operations | 1000 mating cycles |
| Weight | 54 g (0.119 lb) — approximate |
| Materials | |
| Connector Shell | Diecast zinc alloy |
| Shell Finish | Satin Nickel |
| Insulators | UL94V-0 PBT resin |
| Female Contact (machined, solder) Material / Plating | Brass / Bright tin |
| Flammability Rating | UL94V-0 |
| Environmental | Complies with EU RoHS 2 Directive 2011/65/EU |
| Dimensions | |
| Flange Diameter | ø50.8 mm (ø2") |
| Flange Thickness | 3.5 mm (0.138") |
| Depth Behind Panel | 36.5 mm (1.438") |
| Overall Height | 38.3 mm (1.508") |
| Mounting Hole Spacing | 29.2 mm × 29.2 mm (1.148" × 1.148") |
| Panel Cutout (EP 13) | |
| Cutout Diameter | ø33.5 mm (ø1.319") |
| Mounting Holes | 4 × ø4.4 mm (ø0.171") |
| Hole Spacing | 29.2 mm × 29.2 mm (1.148" × 1.150") |
| Key Slot Width | 8.5 mm (0.335") |
| Overall Cutout Height | 40.3 mm (1.585") |
