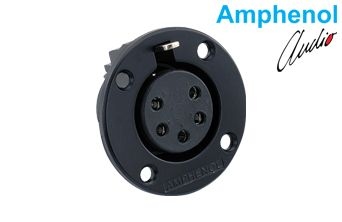

Stock Code: EP-5-13PB
| General | |
|---|---|
| Part Number | EP-5-13PB |
| Series | EP Series |
| Product Type | Metal loudspeaker connector, chassis (panel) mount |
| No. of Positions | 5 |
| Gender | Female (socket) |
| Mounting | Chassis / panel mount |
| Mechanical | |
| Housing Material | Diecast zinc alloy |
| Finish | Black |
| Contact Type | Machined |
| Termination | Solder |
| Max. Wire Gauge | 12 AWG |
| Mating Cycle Durability | 1000 |
| Electrical | |
| Current Carrying Capacity | 20 A |
| Environmental | |
| IP Rating | IP40 |
| Operating Temperature | -25°C ~ +75°C (-13°F ~ +167°F) |
| Flammability Rating | UL94V-0 |
| Environmental Compliance | Complies with EU RoHS 2 Directive 2011/65/EU |
| Dimensions | |
| Flange Diameter | ø51.3 mm |
| Flange Thickness | 3.50 mm |
| Depth Behind Flange | 25.4 mm |
| Panel Cut-out (Hole Diameter) | ø33.0 mm |
| Keyway Width | 8.50 mm |
| Mounting Holes | 4 × ø4.30 mm |
| Mounting Hole Spacing | 29.10 × 29.10 mm (TYP) |
| Applications | |
| Typical Applications | Radio and TV broadcasting; professional studios; sound reinforcement and PA systems; musicians and DJs; special applications |
