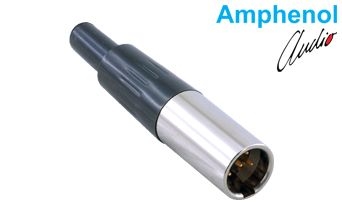

    Connector Mini XLR Plug Male 5 Pin
    Amphenol

    Connector Mini XLR Plug Male 5 Pin

    Stock Code: AG5M

    Options

    3 options
    Pin Count5 Pin3
    Currently viewing: AG5M · 5 Pin
    Builds a five-contact Mini XLR plug at the cable end.
    A male cable connector from the XLR / Mini XLR series that terminates 5-pole audio and signal lines at the cable end. In broadcast, studio and stage installations it joins thin-gauge cables to their female counterpart.
    5Pin Count
    MaleGender
    Cable connectorProduct Type
    4 ARated Current
    50 VRated Voltage
    Key features
    Connector TypeWorks as the male cable plug of the XLR / Mini XLR series.
    PlatingNickel plating covers the shell surface.
    Contact TypeMachined contacts carry the signal.
    Max. Wire GaugeAccepts conductors up to 0.5 mm².
    Operating TemperatureWorks across the -30°C ~ +80°C range.
    In the mated condition the Protection Grade is IP00, so the connector suits protected indoor use.
    General
    Part NumberAG5M
    BrandAmphenol
    SeriesXLR / Mini XLR
    DescriptionMini XLR male cable connector (plug), 5 pole
    Connector TypeMale cable connector (plug)
    Number of Positions5
    Electrical
    Rated Voltage50 V
    Rated Current (40 °C)4 A
    Max. Wire Gauge0.5 mm²
    Mechanical / Environmental
    Ingress Protection (mated)IP00
    Operating Temperature-30 °C ~ +80 °C
    Applications
    Typical ApplicationsRadio and TV broadcasting; professional studios; sound reinforcement and PA; musicians and DJs; special applications

    Teknik Çizim

    AG5M

    pdf9/24/2025
