Opens a five-contact Mini XLR outlet on the panel.

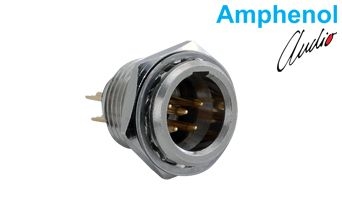

A male chassis connector from the Mini XLR G Type™ series that carries a 5-pole audio and signal connection on equipment panels. Rear side nut panel mounting fits studio, stage and broadcast hardware, and the part is comparable to the Switchcraft TB5M.
5Pin Count
MaleGender
Chassis connectorProduct Type
4 ARated Current
50 VRated Voltage
Key features
Connector TypeUses the Mini XLR G Type™ interface on the panel side.
PlatingNickel covers the brass shell and gold covers the contacts.
Contact TypeMachined contacts carry the signal and a PPS insert holds them in place.
Mounting and TerminationFits rear side nut panel mounting and uses solder cup termination.
Max. Wire GaugeAccepts conductors up to 0.5 mm².
Operating TemperatureWorks across the -30°C ~ +80°C range.
In the mated condition the Protection Grade is IP00, so the connector suits protected indoor use. The product is RoHS compliant.
