Brings a Mini XLR line to the panel on 6 contacts.

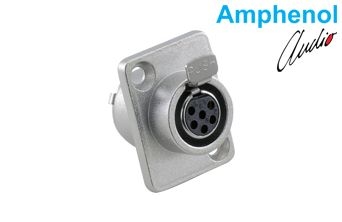

This female Mini XLR chassis connector seats on the panel and solders its terminals straight to the circuit board. The nickel plated die-cast shell and the front push latch suit the frequently used panel connections of broadcast and studio equipment.
Push latchThe PUSH latch on the front face releases the mating plug.
PCB solder terminalsContact pins seat on the board; the recommended layout uses 6 × Ø1.4 mm contact holes and 1 × Ø1.6 mm additional pin hole.
Nickel plated die-cast shellThe die-cast shell is nickel plated and the contacts are stamped.
Defined panel cutoutThe panel needs a Ø14.2 mm center hole and 2 × Ø2.8 mm screw holes spaced 17.1 mm × 11.4 mm.
Series pole optionsThe same series covers 3, 4, 5 and 6 pole models.
RoHS complianceComplies with EU RoHS regulation 2002/95/EC.
