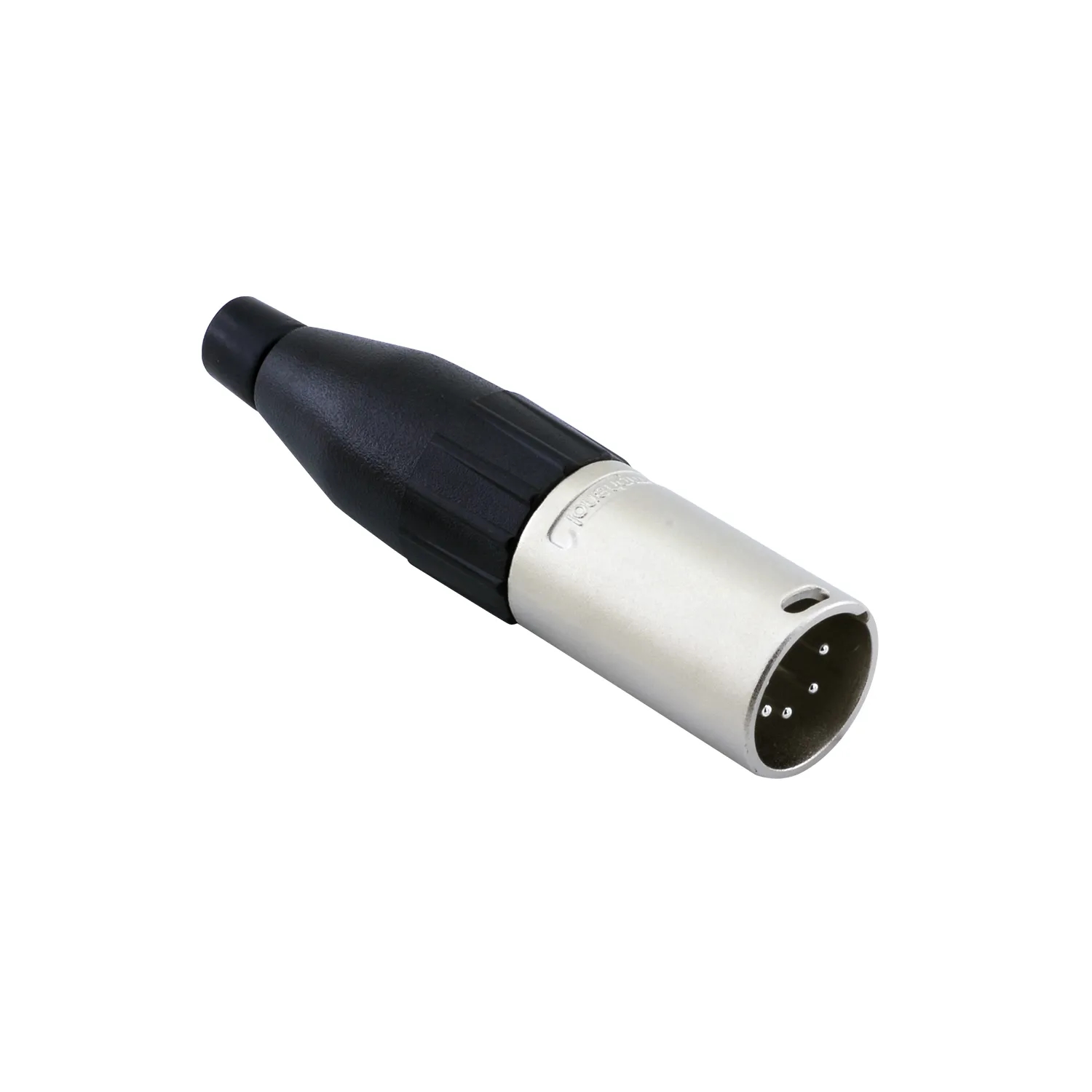

Stock Code: AC5M
| General Characteristics | |||||
|---|---|---|---|---|---|
| Number of Contacts | 3 | 4 | 5 | 6A | 7 |
| AC Series Contact Arrangements (front view of pin inserts) | Please refer to the original datasheet for the diagrams. | ||||
| Termination | Solder | ||||
| Max. Wire Gauge – Stranded wire: Solder | 14AWG | 16AWG | 18AWG | 20AWG | |
| Flammability rating of insulator plastics and housings | UL94V-0 | ||||
| Environmental | Complies with EU RoHS 2 Directive 2011/65/EU | ||||
| Electrical Characteristics | |||||
| Service Voltage RMS | 133V 1) | ||||
| Test Voltage AC RMS | 1400V | ||||
| Current Carrying Capacity: Solder | 15A | 10A | 7.5A | 5A | |
| Typical Contact Resistance | ≤3mΩ | ||||
| Insulation Resistance | ≥1GΩ | ||||
| Climatic Characteristics | |||||
| Protection Class | IP40 | ||||
| Operating Temperature | -25°C to +75°C (-13°F to +167°F) | ||||
| Mechanical Characteristics | |||||
| Insertion and Withdrawal Force | 10N - 30N | ||||
| Weight – Metal 2) | 36g (0.080lb) | 37g (0.081lb) | 38g (0.083lb) | ||
| Weight – Thermoplastic 2) | 18g (0.039lb) | 19g (0.041lb) | 20g (0.044lb) | ||
| Typical Cable Retention Force | 22Kg to 44Kg (50lb to 100lb) - dependent on cable material and diameter. | ||||
| Cable O.D. Range – JAWS clamp (Standard Solder) | 3mm to 6.5mm (0.118” to 0.255”) | ||||
| Cable O.D. Range – JAWS clamp (Large Solder) | 6.5mm to 8mm (0.255” to 0.314”) | ||||
| Mechanical Operations | 1000 mating cycles | ||||
| Materials | |||||
| Connector shell - Metal shell finish | Diecast Zinc Alloy; Satin nickel or Black polyester | ||||
| Connector shell - Thermoplastic shell finish | Thermoplastic, UL94V-0 Modified PPE Resin, Black | ||||
| Insulators | UL94V-0 PBT Resin or Modified PPE Resin | ||||
| Boot / Backshell finish | UL94V-0 Modified PPE Resin or Machined Brass, Black; other colours available. | ||||
| Cable clamp (JAWS) | UL94V-0 Modified PPO Resin (Black) | ||||
