Terminates a 54 line heavy duty cable in a single receptacle.

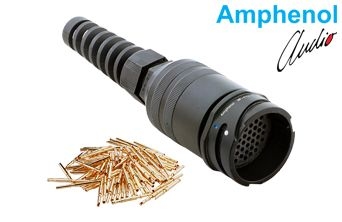

This cable connecting receptacle with pin contacts gathers 54 lines into one shell. It takes both solder and crimp termination, and the contacts ship with the connector.
Heavy duty cable receptacleThe pin contact shell terminates the cable directly; contacts ship in the package.
Solder and crimpConnects 16 AWG - 20 AWG wire by solder or crimp.
IP67 protectionSealed to IP67 against dust and water when mated.
Gold plated contactsThe contacts are gold plated and stand 2000 mating cycles.
Wide temperature rangeOperates from -55 °C to +125 °C.
RoHS complianceComplies with EU RoHS 2 Directive 2011/65/EU.
