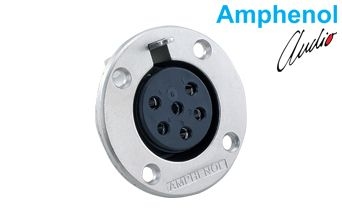

Stock Code: EP-6-13P
| General Specifications | |
|---|---|
| Part Number | EP-6-13P |
| Series | EP Series |
| Description | 6 pole female metal loudspeaker connector; chassis (panel) mount, machined contacts, nickel finish |
| No. of Positions | 6 |
| Gender | Female (socket) |
| Mounting Type | Chassis / Panel mount |
| Electrical Specifications | |
| Current Carrying Capacity | 20 A |
| Contact Type | Machined |
| Termination | Solder |
| Max. Wire Gauge | 12 AWG |
| Mechanical and Material | |
| Housing Material | Diecast zinc alloy |
| Finish | Nickel |
| Mating Cycle Durability | 1000 |
| Flange Diameter | Ø51.3 mm |
| Panel Cut-out Diameter | Ø33.0 mm |
| Mounting Holes | 4 × Ø4.30 mm |
| Mounting Hole Spacing | 29.10 mm × 29.10 mm (typ.) |
| Environmental Specifications | |
| IP Rating | IP40 |
| Operating Temperature | -25°C ~ +75°C (-13°F ~ +167°F) |
| Flammability Rating | UL94V-0 |
| Environmental | Complies with EU RoHS 2 Directive 2011/65/EU |
| Applications | |
| Applications | Radio and TV broadcasting; professional studios; sound reinforcement & PA; musicians and DJs; special applications |
