Brings a 6 pole loudspeaker connection out of the cabinet panel

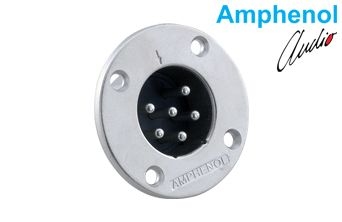

A 6 pole male chassis connector for loudspeaker and amplifier cabinets. It seats on the panel surface, and machined contacts end in solder termination that accepts wire up to 12 AWG.
6Number of contacts
20 ACurrent carrying capacity
IP40Protection Grade
12 AWGMax. wire gauge
1000Mating cycles
51.3 mmFlange diameter
Key features
Panel mountingThe panel cut-out measures 33.0 mm in diameter, with 4.30 mm mounting holes on 29.10 mm spacing.
DimensionsThe flange measures 51.3 mm in diameter and the overall length reaches 32 mm as a reference value.
Contact designMachined contacts end in solder termination and carry 20 A.
DurabilityIt withstands up to 1000 mating cycles and meets the UL94V-0 flammability rating.
Operating conditionsIt carries an IP40 rating and works from -25°C to +75°C.
ComplianceThe connector complies with EU RoHS 2 Directive 2011/65/EU.
The mounting hole diameter varies with the screw size used.
