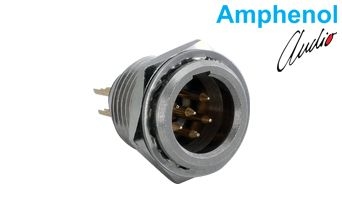

Brings a male Mini XLR connection to the equipment chassis.
This male Mini XLR chassis connector seats on the panel and links its terminals to the circuit board or to a solder bucket. Machined contacts and nickel plating suit the frequently used panel connections of broadcast and studio equipment.
6Number of contacts
MalePlug Type
Chassis / panelMounting Type
NickelPlating
50 VRated voltage
1.2 ARated current (40 °C)
Key features
Machined contactsMachined contacts hold contact through 2000 mating cycles.
Two termination optionsSolders its terminals to the printed circuit board or wires them through a solder bucket.
Wire gaugeTerminates wire up to AWG 28 - 0.38 mm².
Nickel plated shellThe shell material is nickel plated bronze and zinc.
Operating temperatureOperates from -30 °C to +80 °C.
ComplianceMeets the EU RoHS 2 Directive and carries a UL94V-HB flammability rating.
Protection Grade when mated is IP00.
