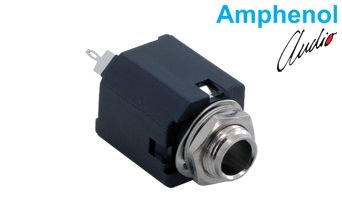

Stock Code: ACJM-MN-2S
| General Specifications | |
|---|---|
| Product Type | 6.35 mm (1/4") phone jack socket (female) |
| Model | ACJM-MN-2S |
| Signal Configuration | Mono |
| Number of Contacts | 3 (terminals: 1, 2, 3) |
| Mounting Type | Panel (chassis) mount and PCB through-hole mount |
| Termination | PCB solder pins |
| Applications | Radio and TV broadcasting; professional studios; sound reinforcement and PA systems; musicians and DJs; special applications |
| Mechanical Specifications | |
| Panel Cutout Diameter | Ø9.5 mm |
| Body Dimensions | 15.7 × 15.7 mm |
| Overall Length | 34.5 mm (reference) |
| PCB Hole Diameters | Ø1.40 mm and Ø2.00 mm (typical) |
| PCB Hole Spacing | 6.38 mm / 4.67 mm / 2.40 mm / 0.56 mm |
| Compliance | |
| RoHS | Compliant (EU 2002/95/EC) |
