Terminates thick mono cable in a right-angle nickel shell

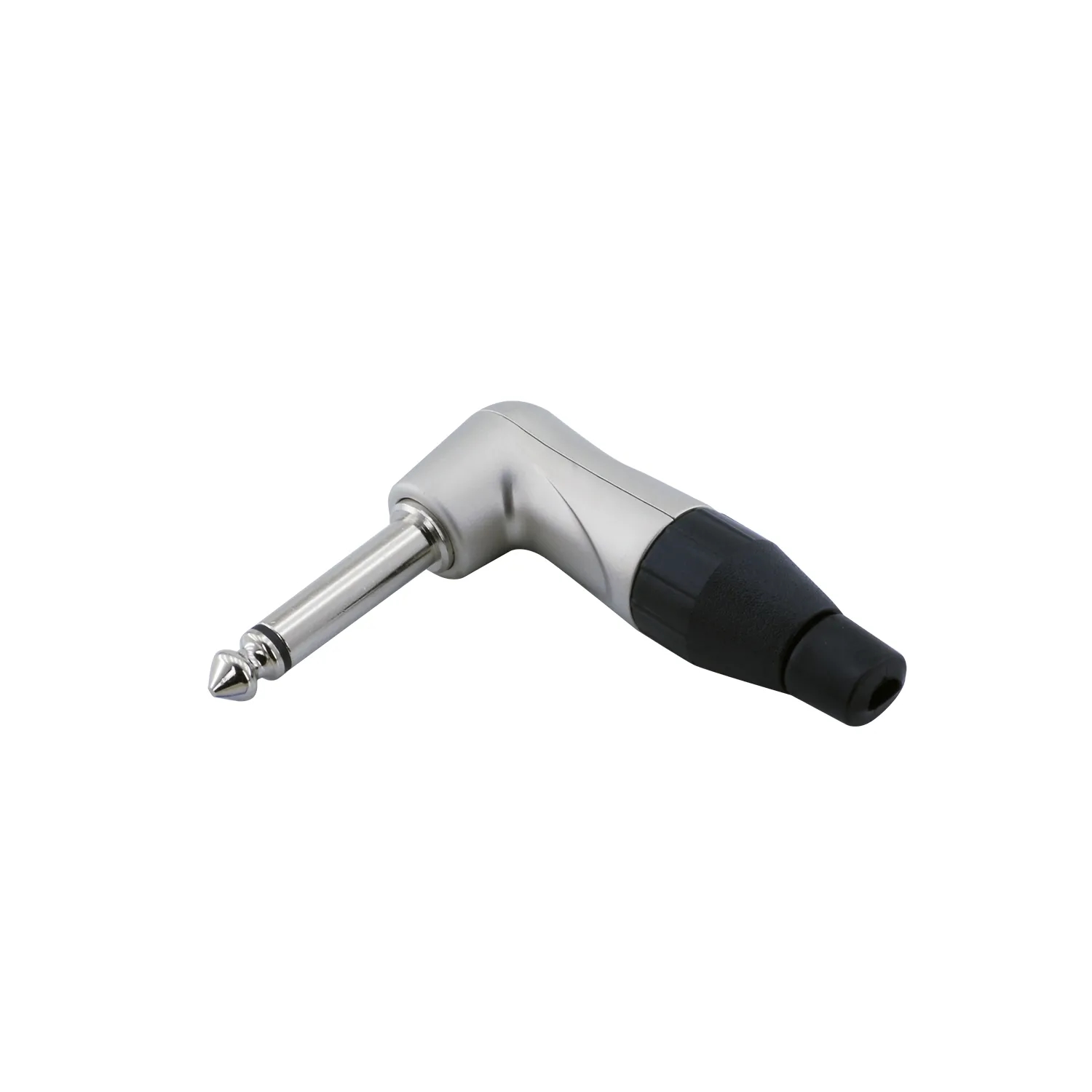

A right-angle 6.3 mm mono phone plug. It comes with a nickel shell and nickel-plated contacts, and the purple large-jaw clamp grips cable of 5.5–6.5 mm outer diameter.
6.3 mmjack size (1/4")
Monoaudio channel
90°exit direction
Nickelcontact finish
Nickelshell finish
5.5–6.5 mmcable outer diameter
Key features
Large-jaw clampThe purple large jaw grips cable of 5.5–6.5 mm outer diameter.
Shell and rear housingThe shell has a nickel finish and the rear housing is thermoplastic.
Part number structureThe TM2R series code takes the suffixes B (black shell), J (large jaw) and AU (gold contacts).
RoHS complianceIt complies with directive EU 2002/95/EC.
Usage areasRadio and TV broadcasting·Professional studios·Sound reinforcement and PA systems·Musicians and DJs·Special applications
