Connects a mono audio cable to a 6.3 mm jack input

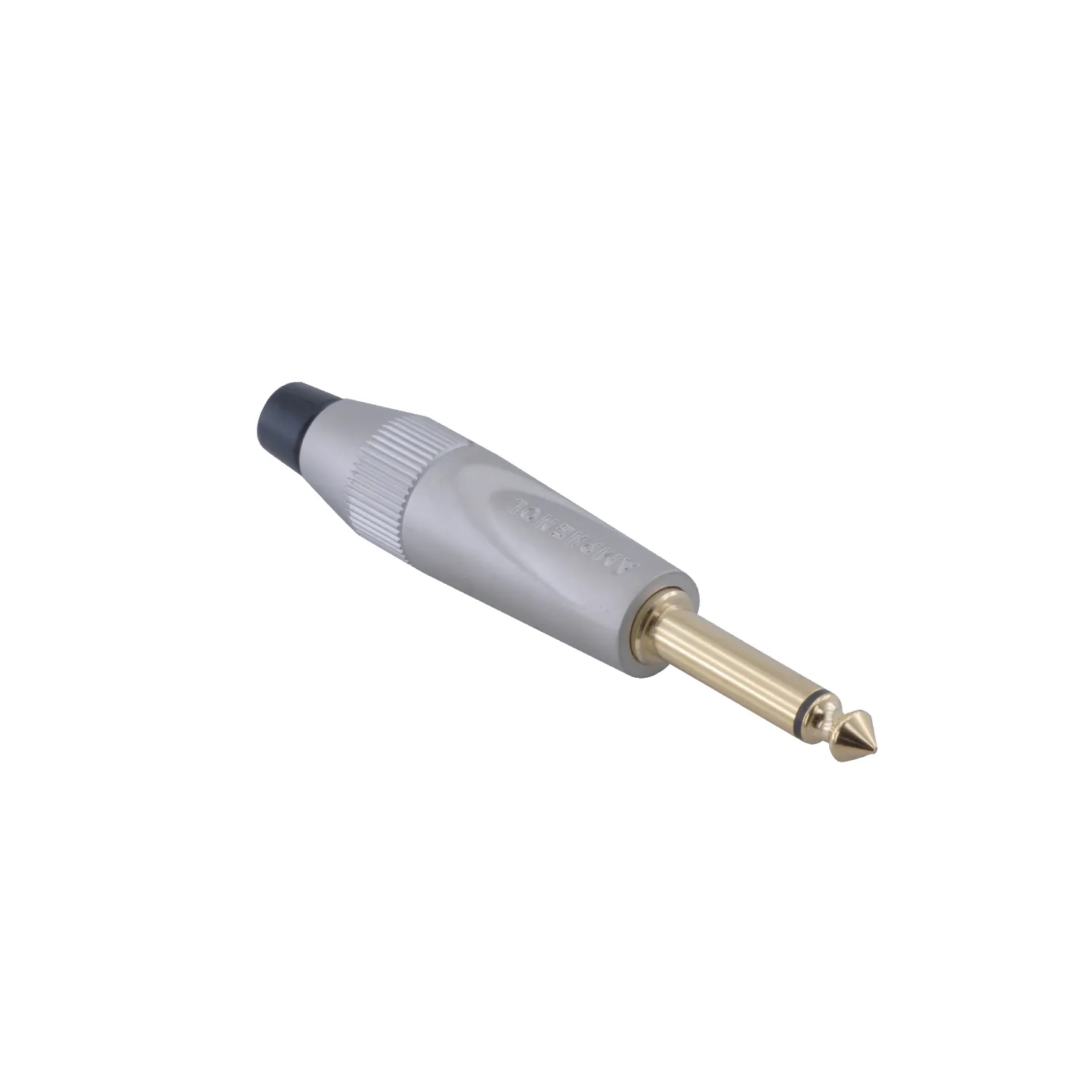

A straight 6.3 mm mono phone plug with a metal rear shell. It carries two gold-plated contacts, and a jaws-style cable clamp holds the cable firmly inside the plug.
6.3 mmjack size (1/4")
Monoaudio channel
Straightexit direction
Goldcontact finish
2contact count
10 Arated current (40 °C)
Key features
Metal rear shellThe rear shell is metal and closes around the contact assembly.
Jaws-style cable clampThe jaws of the clamp grip the cable inside the plug body.
Operating temperatureThe plug works between -25 °C and +75 °C.
RoHS complianceIt complies with directive 2002/95/EC.
Usage areasRadio and TV broadcasting·Professional studios·Sound reinforcement and PA systems·Musicians and DJs·Special applications
