Terminates studio and broadcast cables with a 6.3 mm mono jack end.

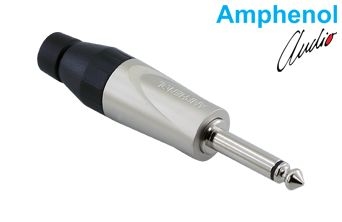

This mono phone plug uses a jumbo die-cast shell and carries a single audio channel over tip and sleeve contacts. The jumbo backshell and jumbo cable clamp hold the cable firmly in the shell. It fits professional audio lines from radio and TV broadcasting to studios and PA systems.
6.3 mmJack Size
MonoAudio Channel
MalePlug Type
NickelShell Finish
NickelContact Finish
Key features
Contact configurationTip and sleeve contacts carry the mono signal on a single line.
Jumbo shellThe die-cast jumbo shell and jumbo backshell enclose the solder area.
Cable clampThe jumbo cable clamp grips the cable and keeps strain off the solder joints.
Nickel platingShell and contacts are nickel plated, and the plating protects the mating surface.
RoHS complianceIt meets the material limits of the EU RoHS directive.
The colored grommet is an optional item and the manufacturer confirms availability.
