Terminates a stereo audio line while taking the cable exit to the side.

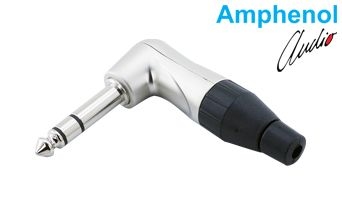

A 3-contact stereo jack plug soldered to the cable end. Its right-angle (90°) body takes the cable exit to the side, and the large jaw clamp secures thick cable to the housing.
Right-Angle BodyIt takes the cable exit to the side of the housing.
Large Jaw ClampThe purple large jaw grips cable with 5.5 mm – 6.5 mm outer diameter.
Alternative ClampThe black standard jaw fits cable with 3.0 mm – 5.5 mm outer diameter.
Solder TerminationBrass contacts carry the wire through a solder joint.
Mating DurabilityThe contacts withstand 1000 insertion cycles.
RoHS ComplianceThe product complies with the RoHS 2002/95/EC directive.
