Name: 6.3mm Stereo Male Jack
Brand: Amphenol
SKU: ACPS-GN-AU

Carries the stereo line as tip, ring and sleeve in a single plug

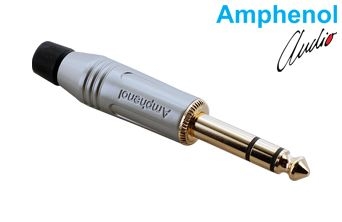

A 6.3 mm stereo phone plug with a diecast shell. The tip, ring and sleeve contacts have a gold finish and the shell a satin nickel finish, while a flexible grommet supports the cable where it leaves the plug.

6.3 mmjack size (1/4")

Stereoaudio channel

Goldcontact finish

Nickelshell finish

79 mmoverall length (reference)

Key features

TRS contact layoutIt carries three contacts: tip, ring and sleeve.

Gold-plated contactsTip, ring and sleeve all carry a gold finish, and the shell is satin nickel.

DimensionsPlug diameter Ø 6.32 mm, plug length 30.60 mm at most, backshell diameter Ø 13.8 mm and a reference overall length of 79 mm.

Three-part assemblyIt consists of an insert assembly, a backshell assembly and a PVC insulation tube.

Codes in the seriesA nickel or black shell combined with nickel or gold contacts makes up four separate part numbers.

Usage areasRadio and TV broadcasting·Professional studios·Sound reinforcement and PA systems·Musicians and DJs·Special applications

General

Product Type

1/4" stereo phone plug (male)

Contact Configuration

Tip, Ring and Sleeve (TRS / stereo)

Reference Part No.

55010217-001

Manufacturer

Amphenol Australia Pty. Ltd.

Applications

Radio and TV broadcasting, professional studios, sound reinforcement and PA systems, musicians and DJs, special applications

Material and Plating

Shell Finish

Nickel

Contact Finish

Gold (tip, ring and sleeve)

Insulation

PVC insulation tube

Mechanical Specifications

Plug Diameter

Ø 6.32 mm

Plug Length

30.60 mm (max.)

Backshell Diameter

Ø 13.8 mm

Overall Length (reference)

79 mm

Construction

Insert assembly + backshell assembly + PVC insulation tube

Series Variants

ACPS-GN

Nickel shell / nickel contacts

ACPS-GN-AU (this product)

Nickel shell / gold contacts

ACPS-GB

Black shell / nickel contacts

ACPS-GB-AU

Black shell / gold contacts
