Stock Code: JS3P
| General Specifications | |
|---|---|
| Brand | Amphenol |
| Part Number | JS3P |

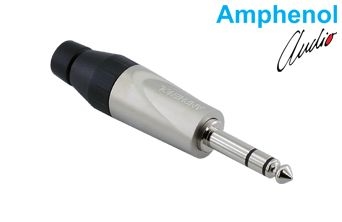

| Product Type | 1/4" (6.3 mm) Stereo Jumbo Phone Plug |
| Description | 1/4" Jumbo Stereo Phone Connector, thermoplastic backshell, satin finish |
| No. of Positions | 3 (Tip, Ring and Sleeve) |
| Electrical Specifications | |
| Current Carrying Capacity | 10 A (depends on mating connector and cable) |
| Termination | Solder |
| Max. Wire Gauge | 18 AWG - 1 mm² |
| Mechanical Specifications and Materials | |
| Housing Material | Diecast zinc alloy (EZDA No.3) |
| Backshell | Thermoplastic |
| Finish | Satin |
| Mating Cycle Durability | 1000 |
| Environmental Specifications | |
| IP Rating | IP40 |
| Operating Temperature | -25°C ~ +75°C (-13°F ~ +167°F) |
| Flammability Rating | UL94V-0 or UL94-HB |
| Environmental Compliance | Complies with EU RoHS 2 Directive 2011/65/EU |
| Applications | |
| Main Application Areas | Radio and TV broadcasting Professional studios Sound reinforcement and PA systems Musicians and DJs Custom applications |
