Connects a stereo audio line to a 6.3 mm jack input with gold-plated contacts.

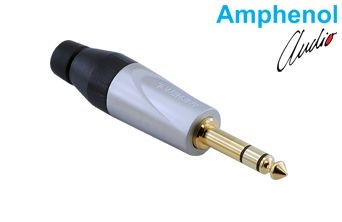

This stereo phone plug uses a jumbo die-cast shell and carries 3 contacts: tip, ring and sleeve. Gold-plated contacts sit inside the nickel-plated shell. A jumbo stereo insert, backshell assembly and jumbo cable clamp complete the plug.
6.3 mmJack Size
StereoAudio Channel
MalePlug Type
3Contact Count
NickelShell Finish
GoldContact Finish
Key features
Stereo contact configurationTip, ring and sleeve contacts keep the two stereo channels apart.
Gold-plated contactsThe tip, ring and sleeve contacts are gold plated, and the plating protects the mating surface.
Jumbo die-cast shellThe nickel-plated jumbo die-cast shell encloses the insert and the solder area.
Cable clampThe jumbo cable clamp grips the cable and keeps strain off the solder joints.
Parts listThe manufacturer lists the backshell assembly, cable clamp, die-cast shell and stereo insert under separate part numbers.
RoHS complianceIt meets the material limits of the EU RoHS directive.
The colored grommet is an optional item and the manufacturer confirms availability.
