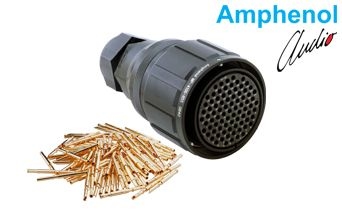

    85 Multipin Connector
    Amphenol

    85 Multipin Connector

    Stock Code: MP-4106-85S

    Options

    2 options
    Pin Count852
    Currently viewing: MP-4106-85S · 85
    IP CODE 67
    Brings 85 audio and lighting lines together in a single plug.
    This straight cable plug with socket contacts gathers multi-line audio and lighting connections into one shell. The aluminum alloy shell, black finish and gold plated contacts stand up to frequent mating. The package holds a PG thread cable gland and a PG adaptor.
    85Number of contacts
    13 ACurrent carrying capacity
    IP67Protection Grade (when mated)
    PG29Cable gland size
    72.4 mmMax. diameter
    137 mmLength
    Key features
    Straight cable plugSocket contacts terminate 16 AWG - 20 AWG wire by solder or crimp.
    Gold plated contactsAll 85 contacts are gold plated and hold contact through 2000 mating cycles.
    IP67 protectionSealed to IP67 against dust and water when mated.
    Aluminum alloy shellThe body and adaptor are aluminum alloy with a black coating; the cable gland is black polyamide.
    Wide temperature rangeOperates from -55 °C to +125 °C.
    RoHS complianceComplies with EU RoHS 2 Directive 2011/65/EU.
    General
    Part NumberMP-4106-85S
    Product TypeStraight cable plug (with socket contacts)
    Number of Contacts85
    Contact TypeSocket contacts
    Mechanical Specifications
    Cable Gland SizePG29
    Max. Diameter (Ø A)72.4 mm
    Length (B, ref.)137 mm
    Roller PinYes
    Cable GlandCable gland in PG thread
    PG AdaptorYes
    Material and Finish
    Connector Shell and AdaptorAluminium alloy
    PG Cable GlandPolyamide, black
    FinishBlack coating
    ContactsGold plated

    Teknik Çizim

    MP-4106-85S

    pdf9/24/2025
