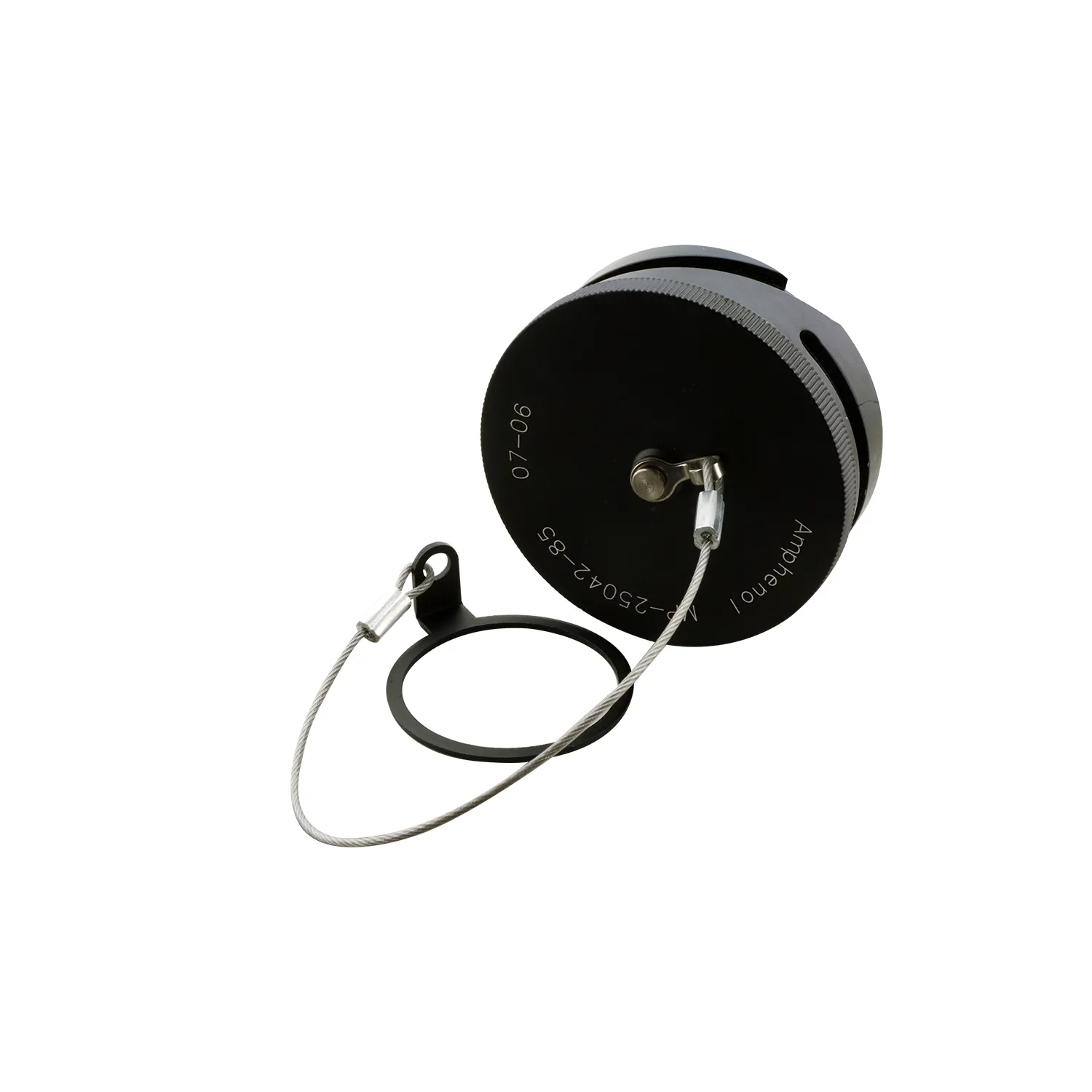

Stock Code: MP-25042-85S
| General Characteristics | |
|---|---|
| Number of Contacts | 13 / 19 / 25 / 37 / 54 / 85 / 150 |
| Number of Channels | 4 / 6 / 8 / 12 / 16 / 28 / 48 |
| Termination | 13–85 pin: Solder / Crimp "Combo" 150 pin: Crimp |
| Wire Gauge - Stranded Wire | 13–85 pin: 16AWG - 20AWG 150 pin: 18AWG |
| Environmental | Complies with EU RoHS 2 Directive 2011/65/EU |
| Electrical Characteristics | |
| Operating Voltage at Sea level - DC Operating Voltage at Sea level - AC |
250 V* 200 V* |
| Test Voltage (AC RMS) | 1000 V |
| Current Carrying Capacity | 13–85 pin: 13 A 150 pin: 7.5 A |
| Typical Contact Resistance | 13–85 pin: 3.46 mΩ 150 pin: 11.25 mΩ |
| Insulation Resistance | 5000 MΩ |
| Climatic Characteristics | |
| Protection Class | IP67 (when mated) |
| Operating Temperature | -55°C to +125°C (-67°F to +257°F) |
| Mechanical Characteristics | |
| Cable Retention | PG Gland |
| Mechanical Operations | 2000 mating cycles |
| Materials | |
| Connector / Shell Finish | Aluminium Alloy / Black |
| Insert | Synthetic Insert to MIL-R-3065 |
| Male pin contact / Plating | Brass / Gold plated |
| Female socket contact / Plating | Brass / Gold plated |
| Clamping Characteristics | |
| PG Gland | 11 / 13.5 / 16 / 21 / 29 / 36 |
| Cable Clamping range mm (inches) | 4-10 (0.15"- 0.39") 5-12 (0.19"- 0.47") 9-14 (0.35"- 0.55") 13-18 (0.51"- 0.70") 14-25 (0.55"- 0.98") 19-32 (0.74"- 1.25") |
