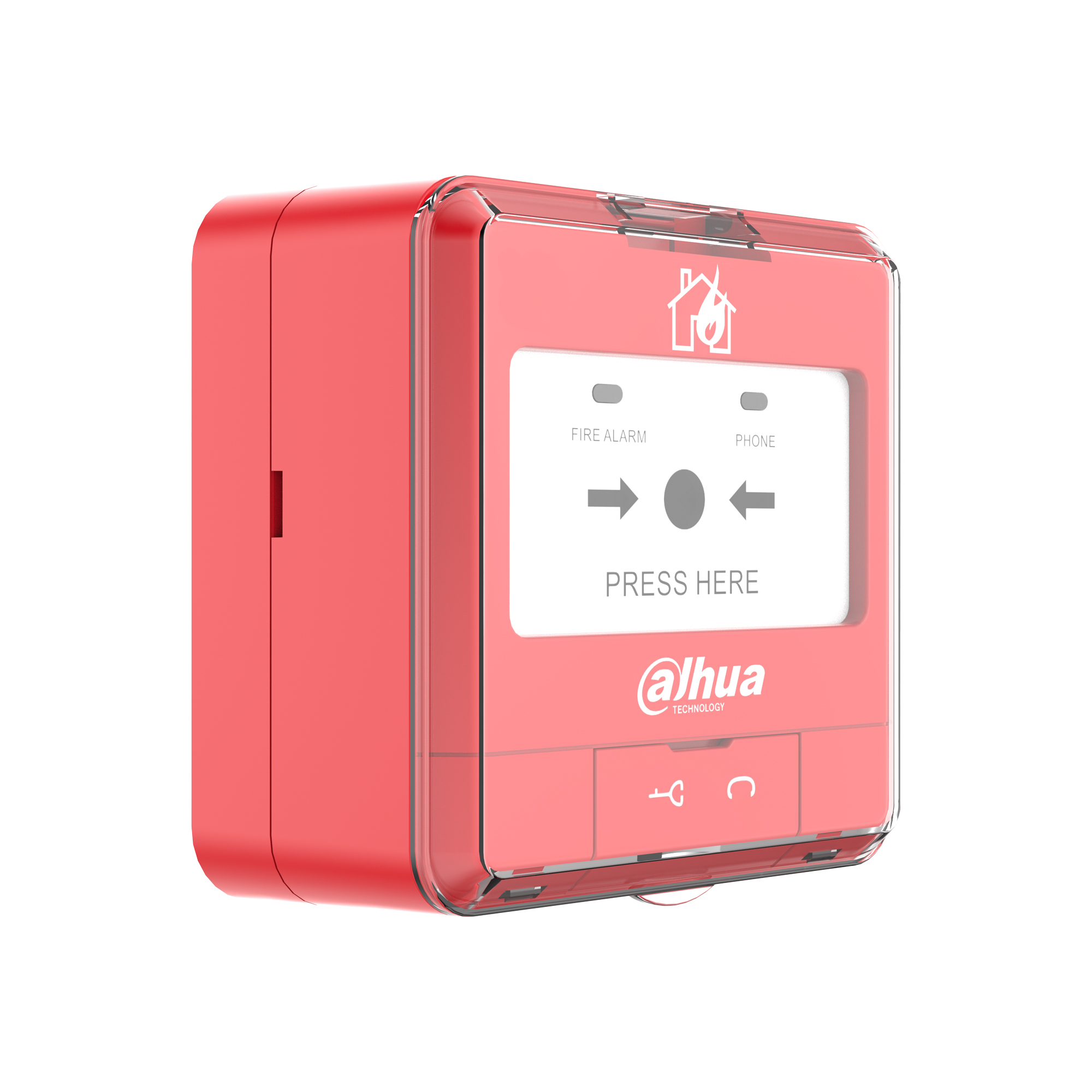

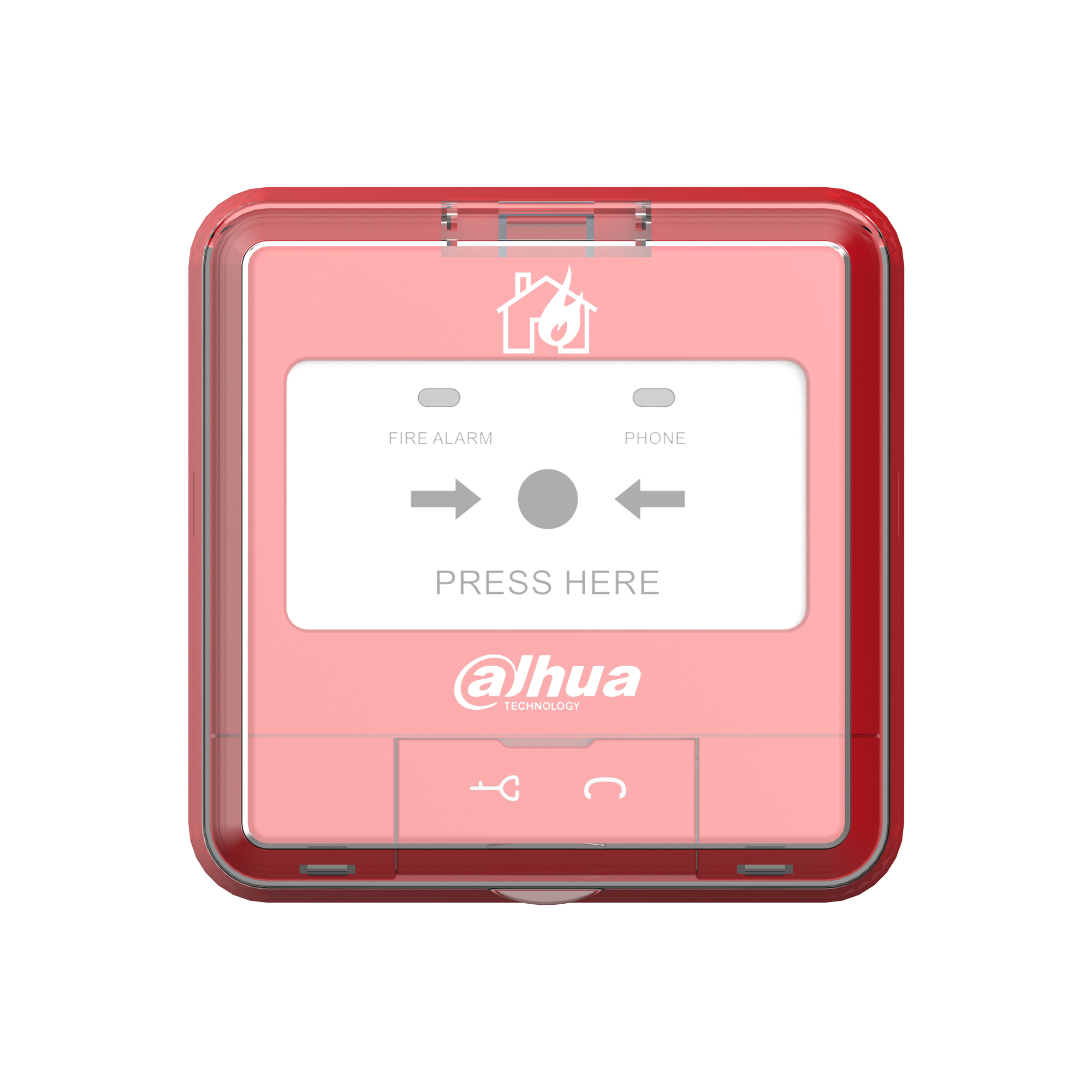

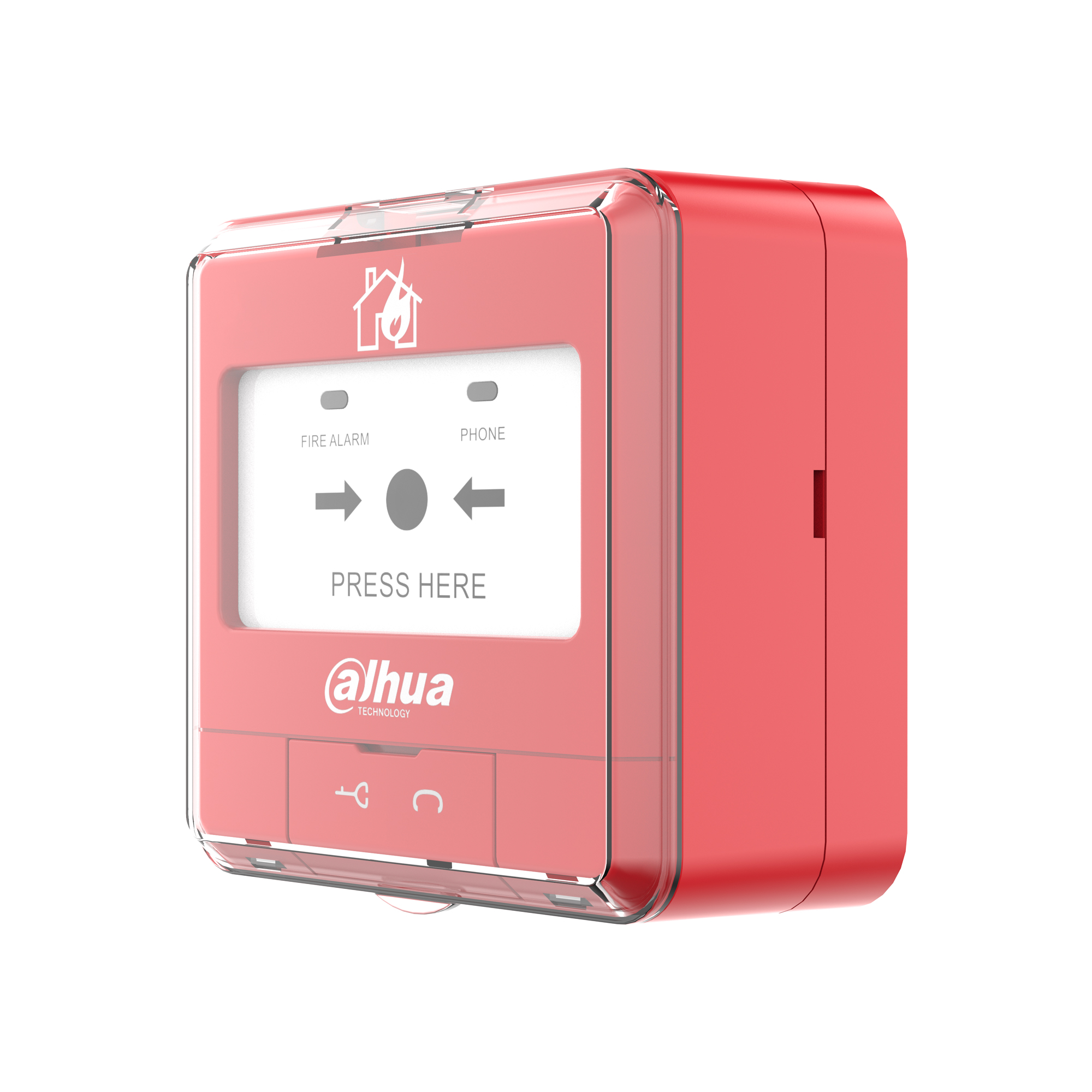

Addressable call point that triggers a fire alarm by hand

A manual call point that joins an addressable fire alarm system over a two-wire bus. The person who presses the cover starts the alarm; the call point reports to the panel under its own address and closes an independent contact output.

DC 24 VWorking voltage

1–254Address range

1500 mCommunication distance

-10°C ~ +55°COperating Temperature

90 mm × 90 mm × 44 mmDimensions (with base)

136 gWeight

Key features

Two-wire, polarity-free wiringIt joins the bus without regard to polarity and removes the risk of reversed connections.

Very low currentMonitoring current stays at 350 µA and alarm current at 400 µA, so it loads the loop budget lightly.

Independent contact outputA pair of normally open contacts triggers an external device at DC 30 V / 100 mA.

AddressingAn electrical encoder assigns an address between 1 and 254, so the panel identifies each call point.

Cover against accidental contactThe transparent cover prevents an accidental touch and a needless fire alarm.

EN54-11 complianceThe design meets the EN54-11 standard.

Technical Specification

Working Voltage

DC 24V

Current

Monitoring current: ≤ 350 μA
Alarm current: ≤ 400 μA

Contacts Capacity

DC 30V / 100 mA

Indicator - Fire Alarm

Red indicator flashes slowly during polling, flashes quickly during malfunction, and remains lit during alarm

Indicator - Phone

Red indicator flashes during polling and communication

Wiring

Two-wire, polarity-free

Addressing Method

Electrical encoder

Address Range

1–254

Communication Distance

1500 m (4921.26 ft)

Operating Temperature

–10°C ~ +55°C (+14°F to +131°F)

Storage Temperature

–20°C ~ +65°C (–4°F to +149°F)

Operating Humidity

≤ 95% RH (no condensation)

Color

Red

Dimensions (with base)

90 mm × 90 mm × 44 mm (3.54" × 3.54" × 1.73")

Weight (with base)

136 g (0.30 lb)

Compliance Standard

EN54-11
