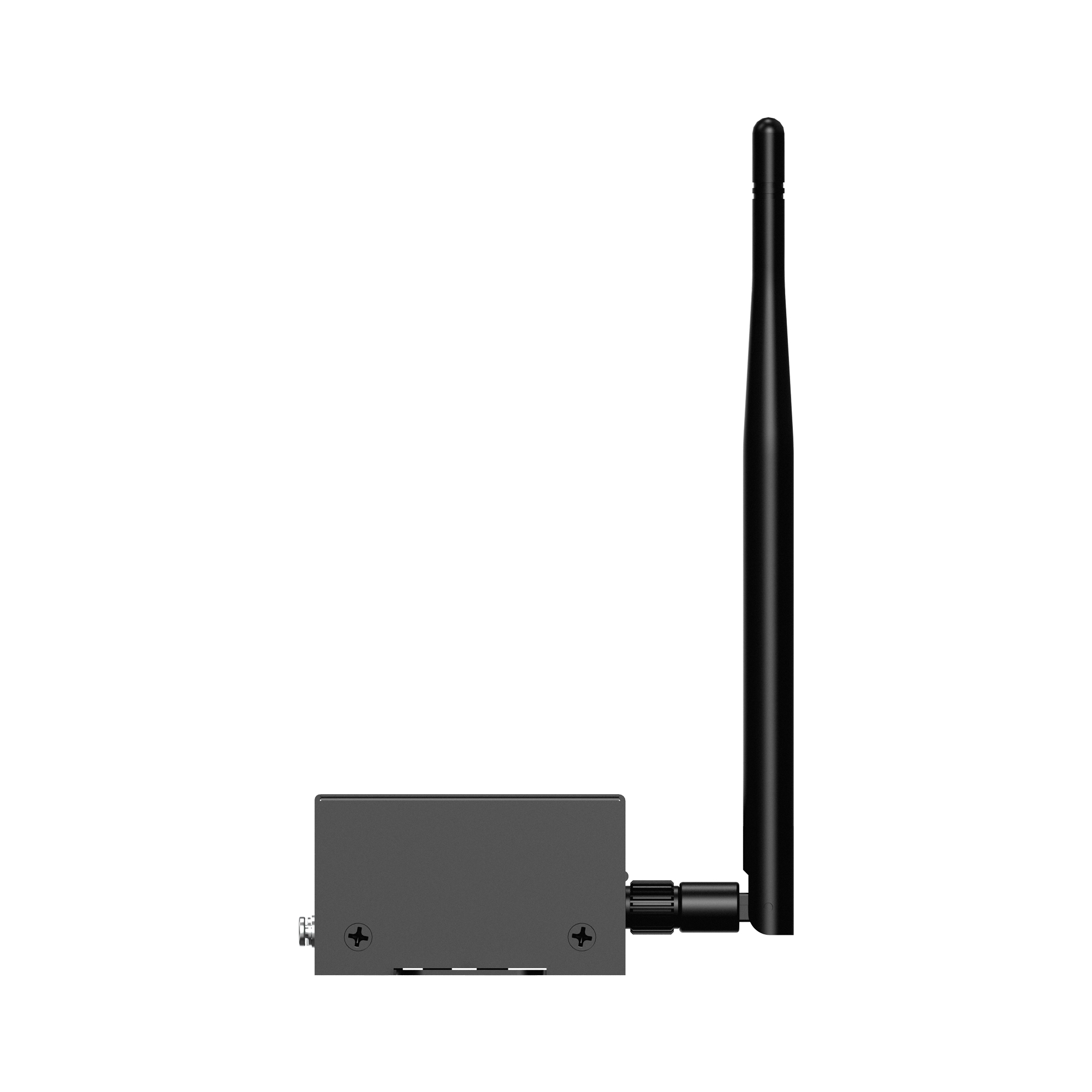

Bridges wireless detectors to a wired alarm panel.

An expansion module that carries wireless peripherals working in the 868 MHz band to a wired control panel. It has 2 channels of dry contact input and 2 channels of relay output onboard, and pairs with up to 16 wireless devices. It runs on 12 VDC or standard PoE.

2 channelsAlarm input

2 channelsRelay output

16Wireless peripheral capacity

868.0 - 868.6 MHzCarrier frequency

12 VDC / PoEPower supply

1024Offline event cache

Key features

Wireless capacityA single module recognizes 16 wireless peripherals, of which at most 6 are sirens and the rest are detectors and keyfobs.

Zone loopsRecognizes NO/NC, 1EOL, 2EOL, and 3EOL zone loop types and works with 2.7 K, 4.7 K, and 6.8 K EOLR values.

Relay to the panelConverts data from wireless peripherals into TCP/IP network data and sends it to the wired control panel.

Frequency and encryptionCommunicates in the 868.0 MHz - 868.6 MHz band and uses AES128 encryption.

When the link dropsStores up to 1024 events while the panel connection is lost, detects case tampering, and shows signal strength on the web page.

InstallationJoins the network over a 10 Mbps / 100 Mbps Ethernet port; the 126.0 mm × 57.0 mm × 33.2 mm electro-galvanized sheet case fits into the panel.

Technical Specifications

Port

Alarm Input

2-channel dry contact input onboard; Zone loops: NO/NC, 1EOL, 2EOL, 3EOL; 3 EOLR values: 2.7 K, 4.7 K and 6.8 K

Alarm Output

2-channel relay output onboard (≤30 VDC, 1 A, resistive load only)

Wireless Peripheral

Supports up to 16 wireless peripherals (max. 6 sirens, detectors, and keyfobs included)

Network Port

10 Mbps/100 Mbps self-adaptive Ethernet port, standard PoE

Function

Indicator Light

3 (Power: Red, Wireless: Green, Pairing: Green)

Button

2 (Pairing button and factory reset button)

Offline Cache

Max. 1024 buffer data

Signal Strength

Detects wireless signal strength via alarm controller webpage

Tamper

Case tamper detection

Wireless

Carrier Frequency

868.0 MHz–868.6 MHz

Communication Distance

Up to 1,000 m (3,280.84 ft) in open space

Encryption Mode

AES128

General

Power Supply

12 VDC/PoE (802.3af)

Operating Temp.

–10 °C to +55 °C (+14 °F to +131 °F)

Dimensions

126.0 mm × 57.0 mm × 33.2 mm

Casing Material

Electro-galvanized sheet
