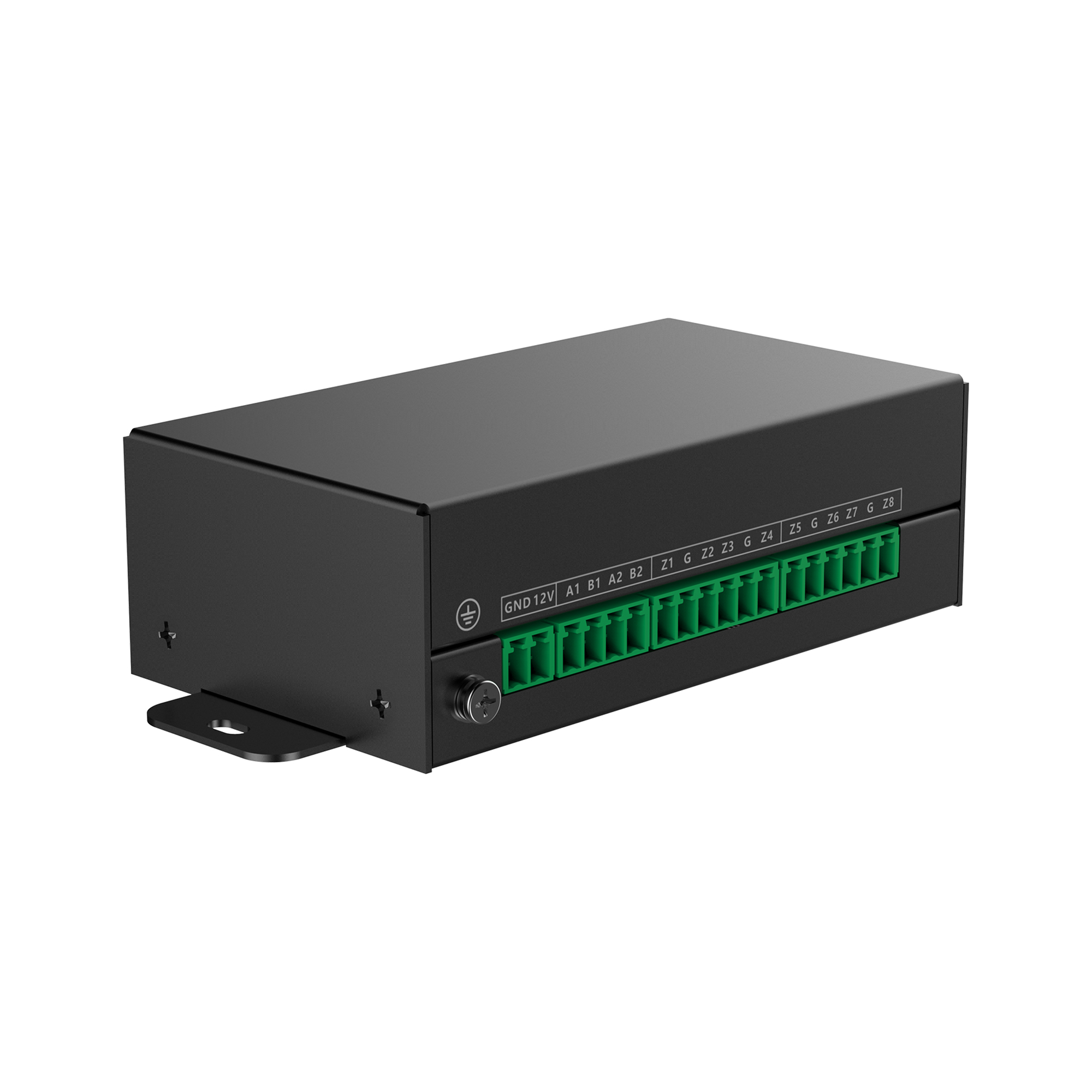

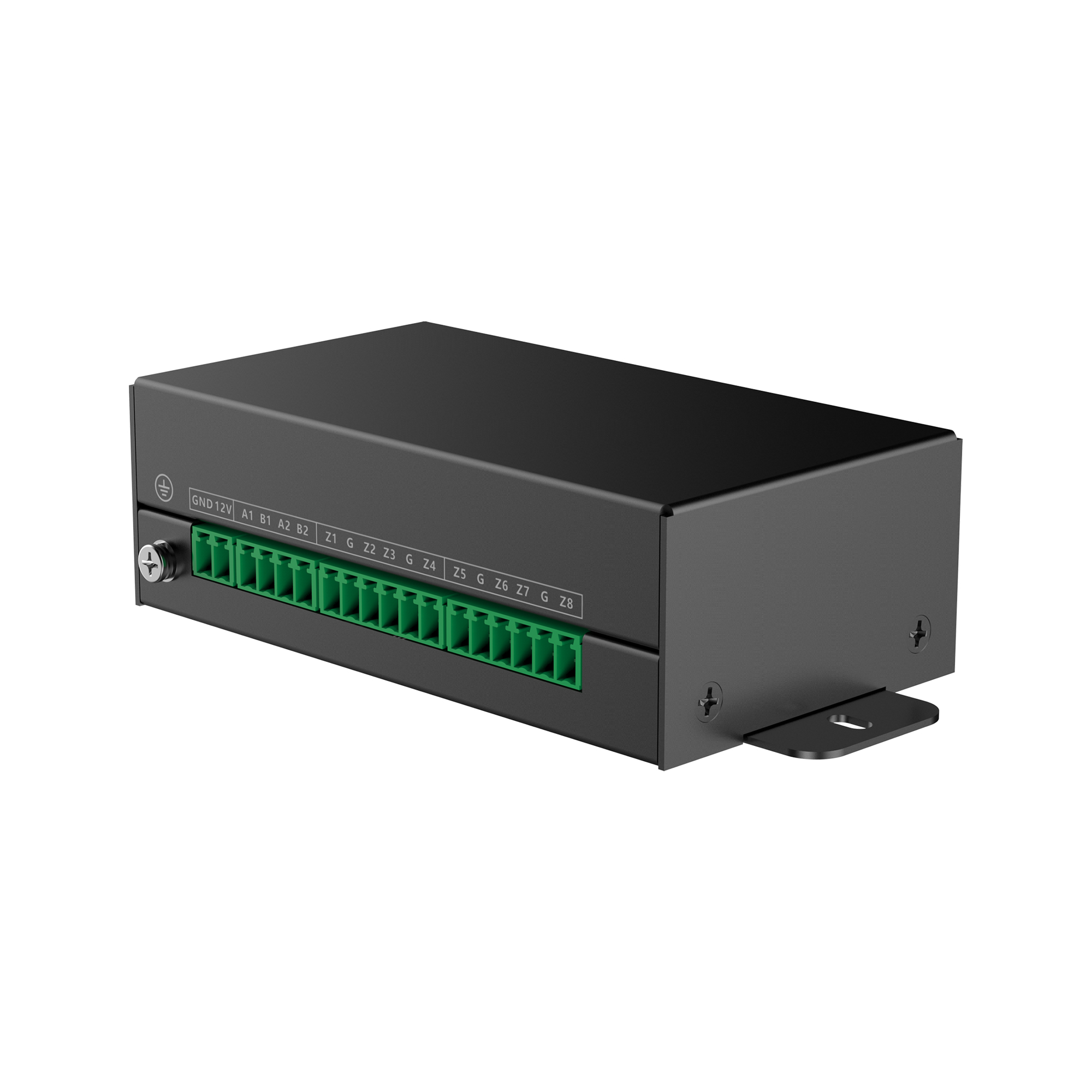

Adds 8 zone inputs and 2 relay outputs to a wired alarm panel.

An expansion module that connects to an alarm control panel. It carries 8 channels of digital input and 2 channels of relay output, and reaches alarm keyboards and other I/O modules over its RS-485 lines. It accepts standard PoE or 12 VDC power and works in indoor panels.

8 channelsAlarm input

2 channelsRelay output

2-channel RS-485Serial communication

12 VDC / PoEPower supply

1024Offline event cache

-10 °C to +55 °COperating Temperature

Key features

Zone loop typesRecognizes 0EOL, 1EOL, 2EOL, and 3EOL loops and works with 2.7 K, 4.7 K, and 6.8 K EOLR values.

Network connectionJoins the network over a 10 Mbps / 100 Mbps self-adaptive Ethernet port and accepts standard PoE power.

RS-485 linesReaches alarm keyboards on A1/B1 and expansion I/O modules on A2/B2, and recognizes up to 4 keyboards and 4 modules.

Offline recordingHolds up to 1024 alarm records in local memory when the panel connection drops.

Tamper and maintenanceDetects case tampering, reports power status with a red indicator light, and supports remote updates.

HousingThe 126.0 mm × 57.0 mm × 33.2 mm electro-galvanized sheet case fits indoor panels and draws 0.1 A.

Technical Specifications

Port

Alarm Input

8-channel digital input

Alarm Output

2-channel local relay output (≤30 VDC, 1 A, resistive load only)

Network Port

10 Mbps/100 Mbps self-adaptive Ethernet port, standard PoE

RS-485

Supports 2-channel RS-485 ports (A1/B1 for keyboards, A2/B2 for expansion modules)

Function

Indicator Light

1, red power supply indicator

Button

1, for restoring the device to its factory settings

Offline Cache

Max. 1024 offline data

Remote Update

Yes

Tamper

Case tamper detection

Technical

Scenario

Indoors

Operating Current

<0.1 A

General

Power Supply

12 VDC/PoE (802.3af)

Operating Temperature

–10 °C to +55 °C (+14 °F to +122 °F)

Dimensions

126.0 mm × 57.0 mm × 33.2 mm (4.96" × 2.24" × 1.31")

Weight

Net: 230 g (0.51 lb) / Gross: 386 g (0.85 lb)

Casing Material

Electro-galvanized sheet
