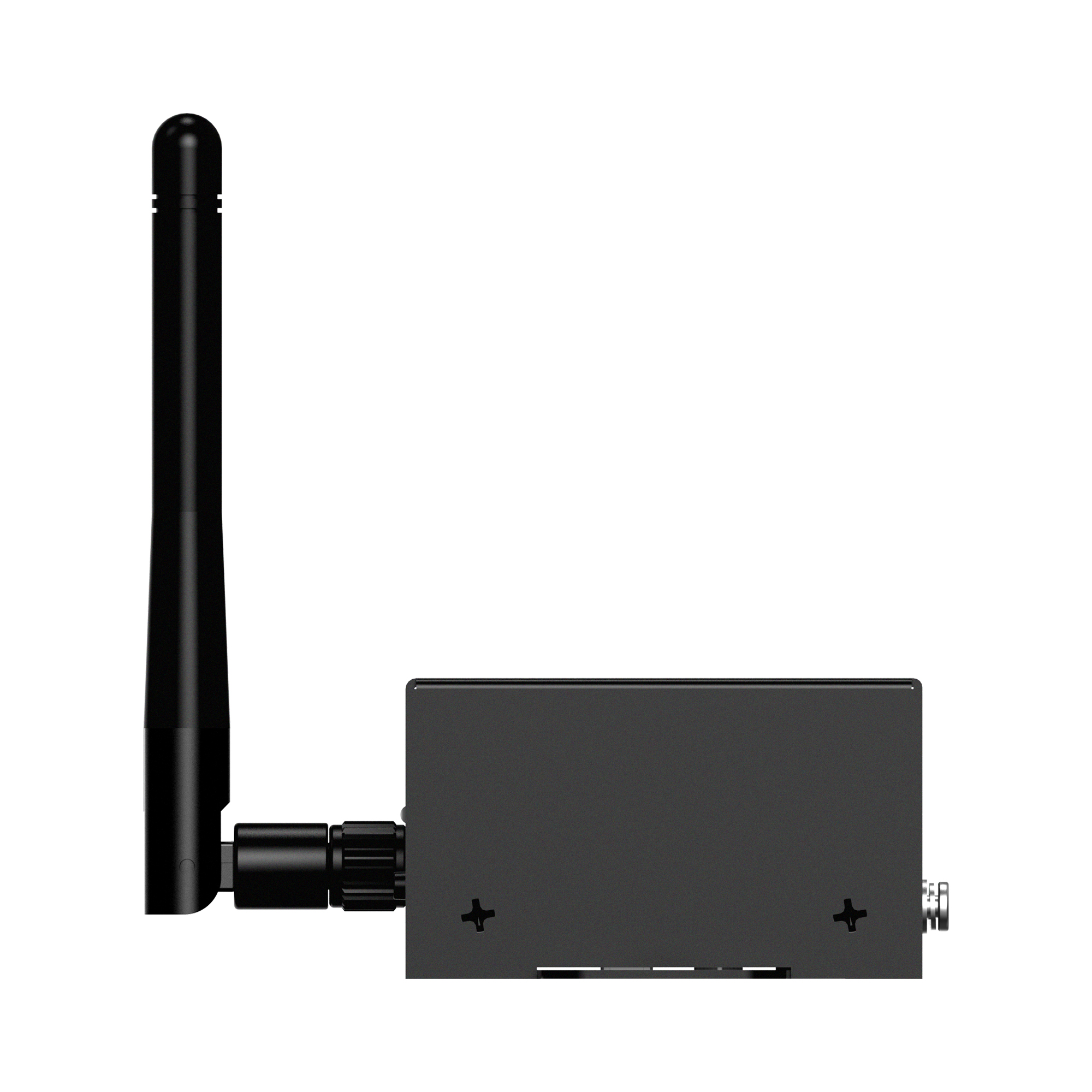

Carries wireless peripherals to a wired alarm panel.

An expansion module that links wireless detectors, sirens, and keyfobs working in the 433.1 MHz - 434.6 MHz band to a wired control panel. It has 2 channels of dry contact input and 2 channels of relay output onboard, and pairs with up to 16 wireless devices. It runs on 12 VDC or standard PoE.

2 channelsAlarm input

2 channelsRelay output

16Wireless peripheral capacity

433.1 - 434.6 MHzCarrier frequency

2 kmOpen-space range

12 VDC / PoEPower supply

Key features

Wireless capacityA single module recognizes 16 wireless devices; up to 6 sirens, door and IR detectors, panic buttons, and keyfobs count toward that number.

RangeCommunicates up to 2 km away in open space and uses frequency hopping.

Zone loopsRecognizes NO/NC, 1EOL, 2EOL, and 3EOL zone loop types and works with 2.7 K, 4.7 K, and 6.8 K EOLR values.

Relay to the panelConverts data from wireless peripherals into TCP/IP network data and sends it to the wired control panel.

Secure linkCommunicates two-way and uses AES128 encryption.

Link and installationStores up to 1024 events when the link drops; the 126.0 mm × 57.0 mm × 33.2 mm electro-galvanized sheet case fits into the panel.

Technical Specifications

Port

Alarm Input

2-channel dry contact input onboard; Zone loops: NO/NC, 1EOL, 2EOL, 3EOL; 3 EOLR values: 2.7 K, 4.7 K and 6.8 K

Alarm Output

2-channel relay output onboard (≤30 VDC, 1 A, resistive load only)

Wireless Peripheral

Supports up to 16 wireless peripherals, including sirens (max. 6), detectors (door, IR, panic button), and keyfobs.

Network Port

10 Mbps / 100 Mbps self-adaptive Ethernet port, standard PoE

Function

Indicator Light

3× (Power supply: Red, Wireless: Green, Pairing: Green)

Button

2× (Pairing button and factory reset button)

Offline Cache

Max. 1024 event buffers

Tamper / Signal

Case tamper detection; Wireless signal strength detection via webpage

Wireless

Frequency / Distance

433.1 MHz – 434.6 MHz; Up to 2 km (6561.68 ft) in open space

Communication

Two-way communication, AES128 encryption, Frequency hopping

General

Power Supply

12 VDC / PoE (802.3af)

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Dimensions

126.0 mm × 57.0 mm × 33.2 mm

Casing Material

Electro-galvanized sheet
