Adds 8 inputs and 2 outputs to an alarm panel over RS-485.

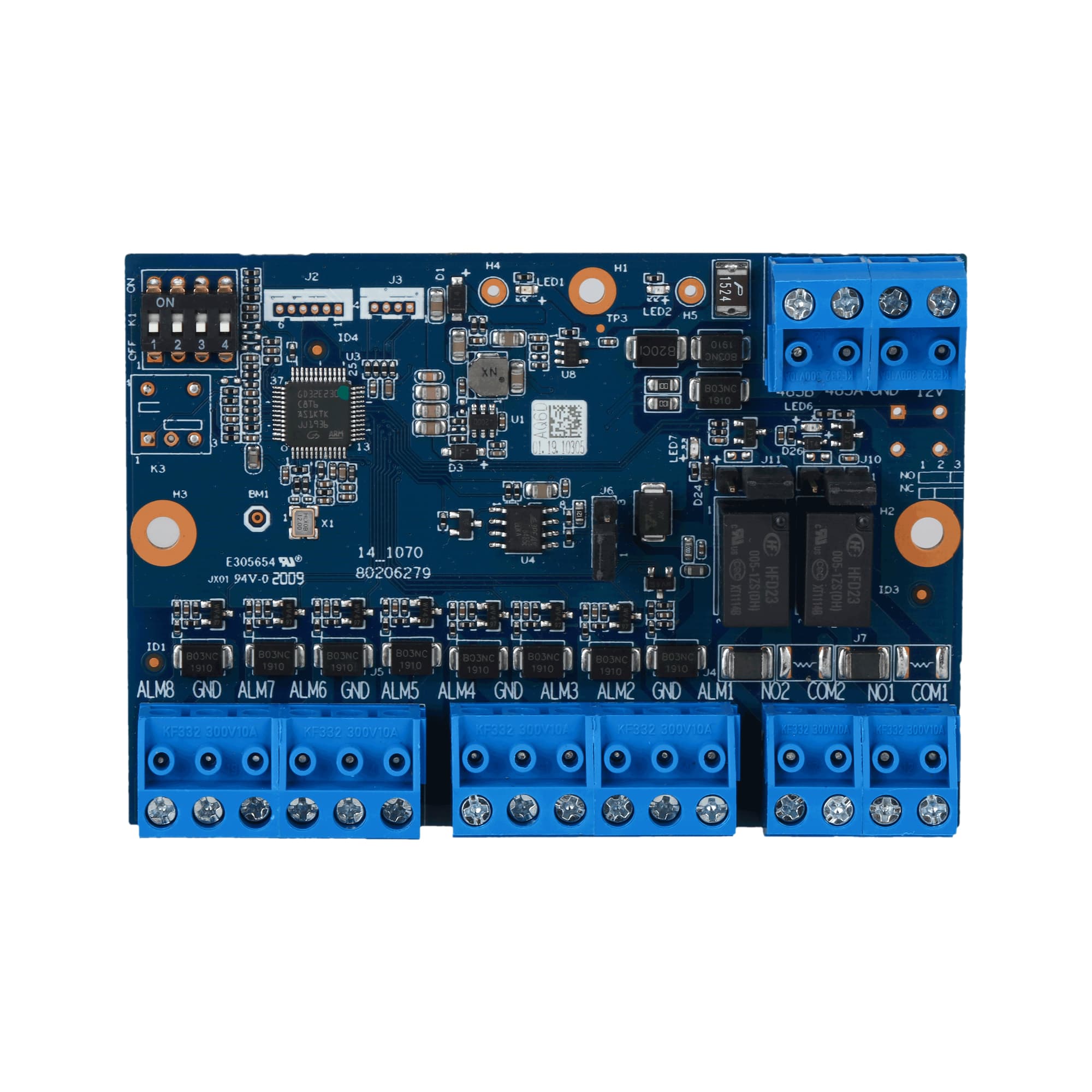

An input expansion module that connects to the alarm control panel over an RS-485 line. It carries 8 channels of alarm input and 2 channels of alarm output and takes its address from a DIP switch. It runs on 12 VDC and consumes 1.2 W.

8 channelsAlarm input

2 channelsAlarm output

RS-485Communication

30 VDC / 500 mAOutput capacity

12 VDCPower supply

-10 °C to +55 °COperating Temperature

Key features

Inputs and outputsCarries 8 channels of alarm input and 2 channels of alarm output; the outputs handle a 30 VDC / 500 mA load.

Zone terminationsRecognizes NC, NO, 1EOL, 2EOL, and 3EOL terminations and works with 2K7, 4K7, and 6K8 EOLR values.

AddressingA DIP switch sets the address, using 0-15 on the ARC9 and ARC2 series and 1-8 on the ARC3008.

Output modeA jumper switches the alarm output between NO and NC.

RS-485 lineRuns a link up to 300 m long on RVV2 × 1.5 cable.

Power and environmentConsumes 1.2 W at 12 VDC and works between -10 °C and +55 °C at 10%-90% relative humidity.

Technical Specification

Port

Alarm Input

Alarm Output

Communication (RS-485)

1, up to 300 m (984.25 ft), RVV2×1.5 cable

Device Address

0–15 (ARC9 series, ARC2 series); 1–8 (ARC3008)

Zone Terminations

NC, NO, 1EOL, 2EOL, 3EOL, INERTIAL (ARC3008), IMPULSE (ARC3008)

EOLR

2K7, 4K7, 6K8

Alarm Output Mode

Switch between NO and NC with jumper

Output Capacity

30 VDC / 500 mA

Update

Remote update by client software

General

Power Supply

12 VDC

Power Consumption

1.2 W

Operating Temperature

-10°C ~ +55°C (+14°F ~ +131°F)

Operating Humidity

10% ~ 90% (RH)

Product Dimensions

90.0 mm × 62.0 mm × 12.6 mm (3.54" × 2.44" × 0.5") (L × W × H)

Net Weight

≤ 1 kg (2.20 lb)
