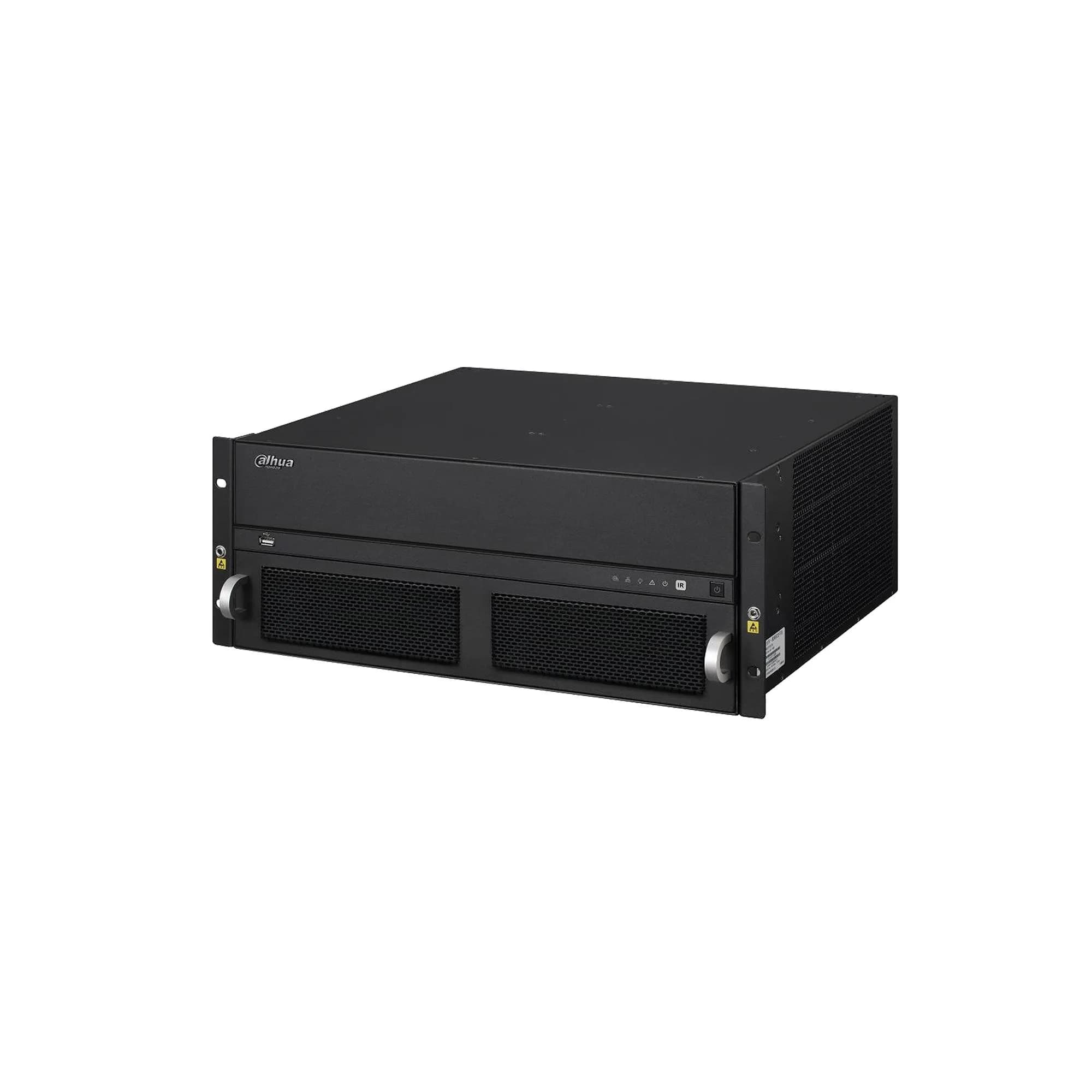

Stock Code: DSS7016DR-S2
| System | |
|---|---|
| Main Processor | Intel Core i5, 64 bits 4 Core Processor |
| Operating System | Embedded Linux |
| Memory | 8 GB DDR3 |
| Motherboard | Embedded Board (support 7×24 operation) |
| Case | Hot-dipped galvanized sheet steel (1.2 mm), high-precise aluminum alloy slide, patented pull-out rack design |
| Power Supply | Redundant Power Supply |
| Interface | |
| Network Port | 4 RJ-45 Ports (10/100/1000 Mbps) |
| Ethernet Port | 4 Ethernet Ports Joint Working or 4 Independent 1000 Mbps Ethernet Ports |
| RS232 | Reserved |
| USB | Front panel: 2 × USB 2.0, Rear panel: 2 × USB 2.0 |
| HDMI | 2 HDMI (one as network config, another as spare) |
| VGA | 1 VGA (as network config) |
| Video Management | |
| Number of Connected Cameras Per Server | 500 IP devices and 2000 channels |
| ONVIF Device | 100 |
| Auto-Register | 500 devices, 2000 channels |
| Mobile DVR Devices | 200 IP, 800 channels |
| Clients Per System | 200 Online Users |
| Numbers of Users | Unlimited |
| Numbers of Roles | 100 |
| Bandwidth of Video Input per Server | 700 Mbps |
| Bandwidth of Video Output per Server | 700 Mbps |
| Alarm Inputs | 80/s (Average), 200/s (Peak) |
| Storage | |
| HDD Installation | Built-in 1 × 1 TB HDD (3.5") for system; supports up to 15 HDDs (3.5") for video or picture storage (max. 4 TB HDD) |
| Storage | Up to 200 TB per server |
| HDD Mode | Single, RAID 0/1/5/6/10 |
| Bandwidth of Video Storage per Server | 700 Mbps |
| Other | |
| Front Cover | Support Hot-swap |
| Display | 7-inch HD LCD (1920 × 1080, 1280 × 1024, 1024 × 768) |
| Power | 10 W ~ 200 W (with HDD) |
| Working Environment Temperature | 0°C ~ 50°C |
| Working Environment Humidity | 5% ~ 90% (non-condensation) |
| Storage Environment Temperature | -20°C ~ +70°C |
| Storage Environment Humidity | 5% ~ 90% (non-condensation) |
| Working Altitude | -60 m ~ 3000 m |
| Weight (Without Package) | 20 kg |
| Dimension | 3U, 526 mm × 485 mm × 135 mm |
