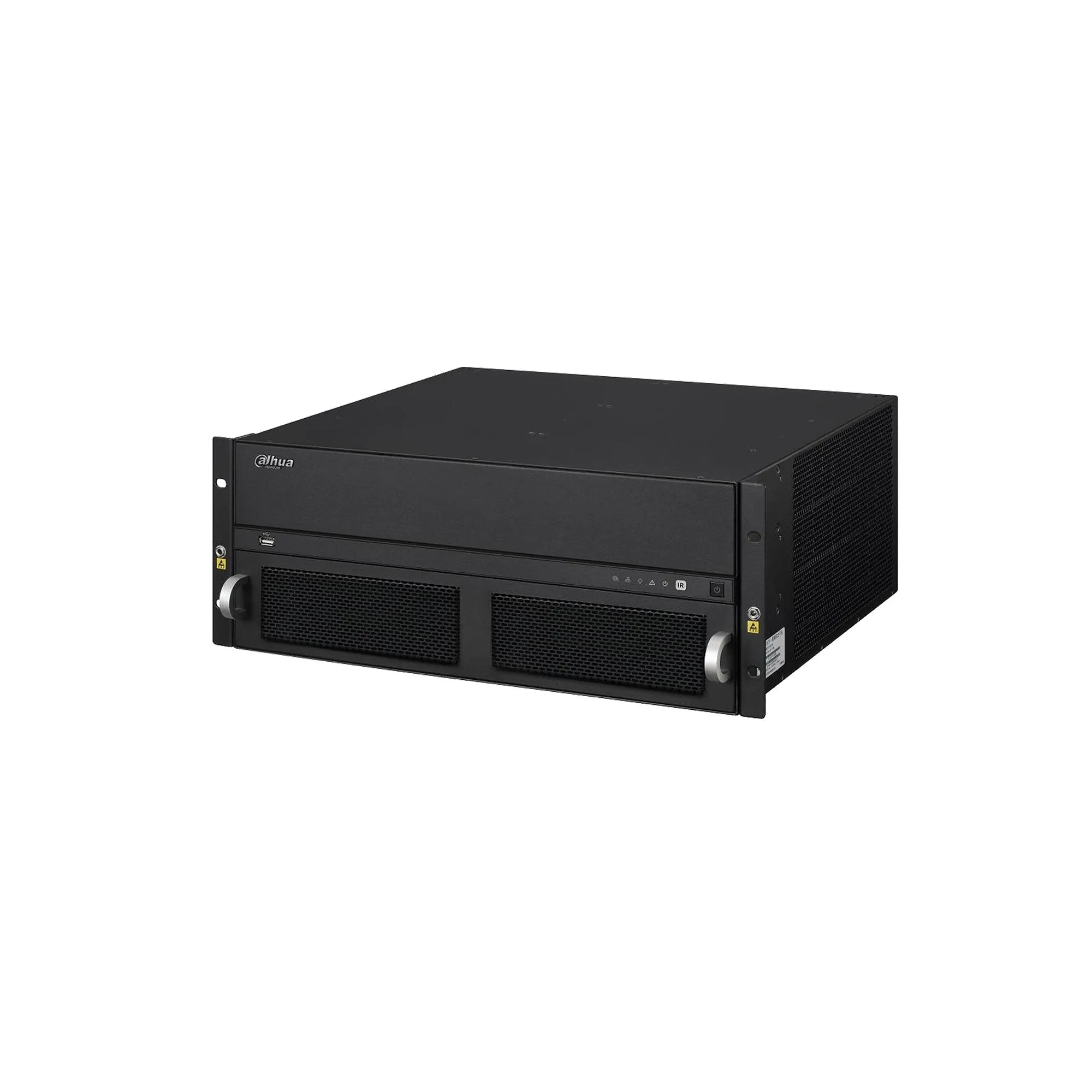

| System Parameter |
|---|
| Main Processor | Quad-core embedded microprocessor |
| Operating System | Embedded LINUX |
| Bus | PCI-E |
| Slot | 12 (2 Main Control Board Slot, 10 Video and Audio Function Board) |
| Mainframe | Power module (redundant power optional), main control board, control board, PCI-E bus rear panel, smart temperature controlled fan |
| Video Input Card | Max. 10 |
| Video Output Card | Max. 10 |
| Video Input |
|---|
| VIC0201UH-M70 (HDMI) | | Interface | 2ch HDMI1.4 support HDCP | | Access Capability | 2ch@4K, downward compatibility |
|
| VEC0404HH-M70 (HDMI) | | Interface | 4ch HDMI | | Encoding Format | H.264 / MPEG4 | | Encoding Capability | 4CH@1080P, support resolution: 1080P/720P/UXGA/SXGA+/SXGA/XGA/SVGA/VGA |
|
| VEC0404HD-M70 (DVI) | | Interface | 4ch DVI-I (HDMI & VGA with convertor) | | Encoding Format | H.264 / MPEG4 | | Encoding Capability | 4CH@1080P, support resolution: 1080P/720P/UXGA/SXGA+/SXGA/XGA/SVGA/VGA |
|
| Video Output |
|---|
| VDC0605H-M70 (HDMI) | | Decoding Capability | 2CH@32MP (25fps) / 8CH@12MP (15fps) / 8CH@4K (25fps) / 32CH@1080P / 72CH@720P / 128CH@D1 | | Interface | 6ch HDMI (Interfaces 2/3/5/6 support 4K resolution, others support 1080P) | | Output Resolution | 4096×2160 @ 24fps, 3840×2160 @ 30fps, 1920×1080 @ 60fps, 1280×1024 @ 60fps, 1280×720 @ 60fps, 1024×768 @ 60fps | | Split | 1/4/6/8/9/16/25/36, free split |
|
| Video-Wall |
|---|
| Decoding Card Video-Wall Splicing | Support video-wall splicing (max 60 LCD display units) |
| Video-Wall | Support Splicing/Zoom/Merge/Roam/Overlay |
| Video Input | HDMI / DVI |
| Video Output | HDMI |
| Audio Output | HDMI (embedded) |
| Control Mode | WEB / Local GUI / Video Platform / Network Keyboard / iPad |
| Network |
|---|
| Interface | 6 RJ-45 ports (10/100/1000M); 2 in mainboard and 4 in control board |
| Serial Port | 4 RS232 ports (4 RJ45), for console and control; 1 RS485 port |
| USB | 3 USB 2.0, 1 USB 3.0 |
| Environmental |
|---|
| Power Supply | 100~240V AC, 50/60Hz |
| Power Consumption | ≤600W |
| Working Environment | -10°C ~ +50°C / 10~90%RH / 86~106 kPa |
| Dimension | 4U, 482.6 × 437.0 × 177.0 mm (19.0 × 17.2 × 7.0 inch) (W×D×H) |
| Weight | ≤25 kg (full configured) |
