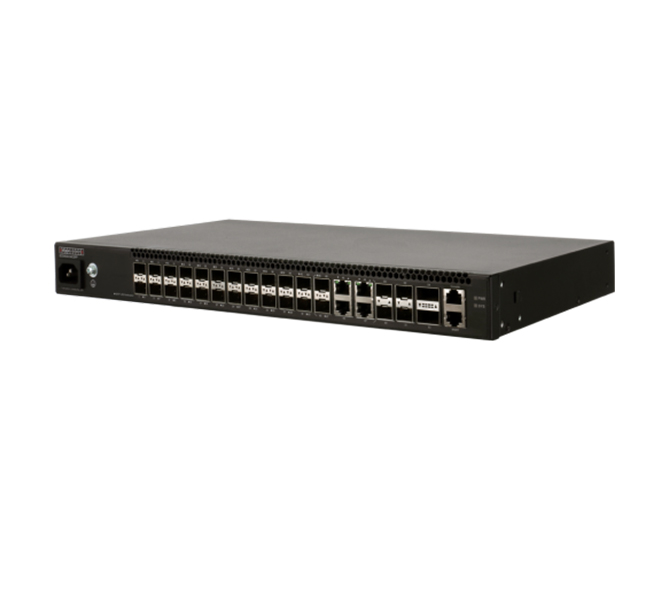

Stock Code: ECS4530-54CSFP
| General Information | |
|---|---|
| Product Model | ECS4530-54CSFP |
| Product Name | L2+/L3 Lite Gigabit Ethernet CSFP Switch with 4 10G and 2 20G Uplinks |
| Brand | Edgecore |
| Layer | L2+/L3 Lite |
| Network Specifications | |
| GE CSFP Ports | 24 |
| GE Combo Ports (RJ-45/CSFP) | 4 RJ-45 / 2 CSFP |
| SFP+ 10 Gigabit Uplink Ports | 4 |
| 20G QSFP+ Uplink Ports | 2 |
| GE Out of Band Management Port | 1 |
| RJ-45 Console Port | 1 |
| Switching Capacity | 256 Gbps |
| Forwarding Rate | 190.48 Mpps |
| Flash Memory | 2 GB |
| DRAM | 2 GB |
| MAC Address Table | 16 K |
| Jumbo Frames | 10 KB |
| Auto-negotiation, Auto-MDI/MDIX | Yes |
| VLAN | • Supports 4K VLAN • Port-based VLAN • IEEE 802.1Q VLAN • GVRP • VLAN Trunking • IEEE 802.1v Protocol-based VLAN • IP Subnet-based VLAN • MAC-based VLAN • Voice VLAN • Guest VLAN |
| Redundancy Protocols | • IEEE 802.1D Spanning Tree Protocol (STP) • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), 64 instances • ITU-T G.8032 Ethernet Ring Protection (sub 50 msec convergence) • BPDU Guard, BPDU filtering, Root Guard, BPDU transparent • Loopback detection • MLAG |
| Link Aggregation | • Static Trunk • IEEE 802.3ad Link Aggregation Control Protocol (LACP) • Trunk groups: 26, up to 8 GE / 4 10G ports per group • Load Balancing: SA+DA, SA, DA, SIP+DIP, SIP, DIP |
| Multicast Control | • IGMP v1/v2/v3 snooping • IGMP Proxy reporting • IGMP Filtering • IGMP Throttling • IGMP Immediate Leave • IGMP Querier • IGMP Authentication • MVR (Multicast VLAN Registration) - supports 5 multicast VLANs • MLD Snooping v1/v2 |
| QoS Features | • Priority Queues: 8 hardware queues per port • Traffic classification: IEEE 802.1p CoS, IP Precedence, DSCP, MAC/IP ACL • Traffic Scheduling: Strict Priority, Weighted Round Robin, Strict + WRR • Single/Two rate Three color marker • Ingress and egress policy map • Rate Limiting (Ingress and Egress, per port base): GE 64 Kbps ~ 1,000 Mbps, 10G 64 Kbps ~ 10,000 Mbps, 20G 64 Kbps ~ 20,000 Mbps • Auto Traffic Control |
| Flow Control | • IEEE 802.3x for full-duplex mode • Back-Pressure for half-duplex mode |
| IPv6 Features | • IPv4/IPv6 Dual Protocol stack • IPv6 Neighbor Discovery • Stateless auto-configuration • Ping, Telnet, HTTP, SNMP, SSH, Syslog, SNTP, TFTP over IPv6 • IPv6 DNS Resolver • RA Guard • IPv6 ND Snooping • IPv6 Source Guard • DHCPv6 snooping, DHCPv6 option 37, DHCPv6 client |
| Routing | • IPv4 Static Route • IPv6 Static Route |
| L2 VPN | • Q-in-Q • VLAN Translation • L2 Protocol tunneling (xSTP, LACP, LLDP, CDP, VTP & PVST+) • CDP/PVST+ Filtering |
| OAM | IEEE 802.3ah Link |
| Diagnostics | |
| Diagnostic Features | • Digital Diagnostic Monitoring (DDM) on 1G CSFP and 10G SFP+ ports • Cable Diagnostic • Event/Error Log • Syslog • sFlow v4, v5 • RMON (groups 1, 2, 3 and 9) • Port mirroring / ACL/MAC/VLAN Mirroring • Remote port mirror (RSPAN) |
| Management and Security | |
| Management Interfaces | • CLI via console port or Telnet • Web management • SNMP v1, v2c, v3 |
| Firmware & Configuration Management | • Firmware upgrade via TFTP/HTTP/FTP server • Multiple configuration files • Configuration file upload/download via TFTP/HTTP/FTP server • DHCP client for IP address assignment • DHCP dynamic provision option 66, 67 • SNTP / NTP / DNS / SMTP • Supports LLDP (802.1ab) |
| Security Features | • Port security • IEEE 802.1X port based and MAC based authentication • Dynamic VLAN Assignment, Auto QoS • MAC authentication • Web authentication • L2/L3/L4 Access Control Lists (ACL) • IPv6 ACL • ARP access control list • DHCP Snooping, DHCP Option 82, DHCP Option 82 Relay • IP Source Guard • PPPoE IA • Dynamic ARP Inspection (DAI) • Denial of Service protection • Login Security • Traffic Segmentation / Private VLAN • Management Interface Access Filtering (SNMP, WEB, Telnet) • SSH (v2.0) for security Telnet • SSL for HTTPS • SNMPv3 |
| Authentication | • RADIUS authentication, accounting and authorization • TACACS+ authentication, accounting and authorization |
| Power Supply | |
| Power Supply | 100-240 V AC, 50/60 Hz |
| Max. System Power Consumption | 150 W |
| Mechanical Specifications | |
| Rack Space | 19" |
| Dimensions and Weight | |
| Dimensions (W × D × H) | 44 × 22 × 4.4 cm |
| Weight | 3 kg |
| Environmental Conditions | |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | -40 °C to 70 °C |
| Operating Humidity | 10% to 90% (non-condensing) |
| Storage Humidity | 10% to 90% (non-condensing) |
| Certifications | |
| Safety | • UL (CSA 22.2 NO 60950-1 & UL60950-1) • CB (IEC60950-1) |
| Electromagnetic Compatibility | • CE Mark • FCC Class A • VCCI |
| Environmental Regulation Compliance | • WEEE • RoHS |
| Certifications | • FCC Class A • CE |
