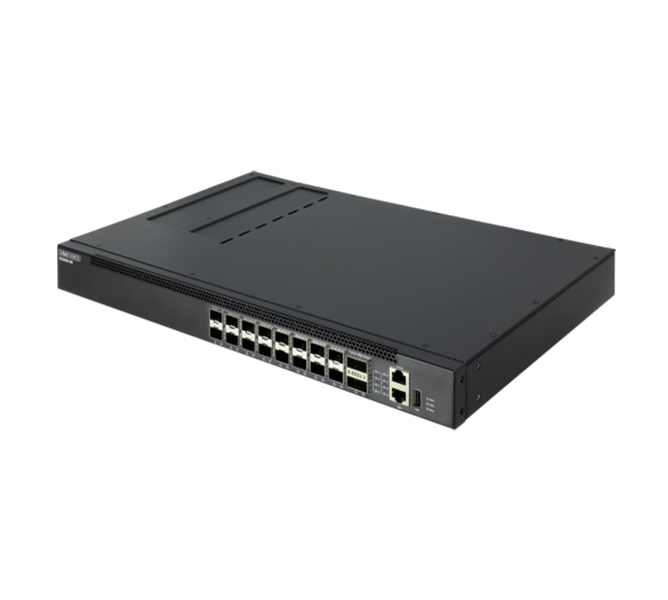

Stock Code: ECS5520-18X
| General | |
|---|---|
| Product Model | ECS5520-18X |
| Ports | |
| 10G SFP+ Ports | 16 |
| 10GBASE-T Ports | 0 |
| 40G QSFP+ Ports | 2 |
| GE Out-of-Band Management Port | 1 |
| RJ-45 Console Port | 1 |
| USB Port | 1 |
| Performance | |
| Switching Capacity | 480 Gbps |
| Forwarding Rate | 357.12 Mpps |
| Flash Memory | 1 GB NAND, 32 MB SPI NOR |
| DRAM | 2 GB |
| MAC Address Table Size | 64K (shared with L2, multicast and L3 table) |
| Jumbo Frames | 10 KB |
| Auto-negotiation, Auto-MDI/MDIX (Copper Port) | Auto-MDI/MDIX (copper port) only |
| Mechanical | |
| Rack Space | 19" |
| Dimensions (W × D × H) | 43.84 × 28 × 4.34 cm |
| Weight | 3.9 kg |
| Power Supply | |
| AC Power Supply Module (100-240 VAC, 50/60 Hz) | 1 (optional 2nd power module for redundancy) |
| DC Power Module (-36 ~ -72 VDC) | Yes (optional) |
| Max. System Power Consumption | 88.16 W |
| Dying Gasp | No |
| Environmental Specifications | |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity (non-condensing) | 5% to 95% |
| Storage Humidity (non-condensing) | 5% to 95% |
| Environmental Regulation Compliance: WEEE | Yes |
| Environmental Regulation Compliance: RoHS | Yes |
| Certifications | |
| FCC Class A | Yes |
| CE | Yes |
| Safety Compliance: CB | Yes |
| Safety Compliance: UL | Yes |
| Safety Approvals | UL (CSA 22.2 NO 60950-1 & UL60950-1); CB (IEC60950-1) |
| Electromagnetic Compatibility | CE Mark; FCC Class A; CISPR Class A; VCCI Class A; BSMI |
| L2 Features | |
| Fiber Interfaces | Dual-speed (1G and 10G) fiber interfaces |
| SFP+ Port Support | IEEE 802.3ae (10GBASE-SR/LR/ZR/ER); 10G DAC/AOC; IEEE 802.3z (1000BASE-SX/LX/LHX/ZX); Digital Diagnostic Monitoring (DDM) on 10G SFP+ ports only |
| 40G Interface | 40G QSFP+ fiber interface |
| Flow Control | IEEE 802.3x for full duplex mode; Back-Pressure for half duplex mode |
| Jumbo Frames | 10 KB |
| Storm Control | Broadcast / multicast / unknown unicast storm control |
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP); IEEE 802.1w Rapid Spanning Tree Protocol (RSTP); IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), 64 instances; BPDU Guard; BPDU filtering; Root Guard; loopback detection |
| Loopback Detection | Non-Spanning Tree loopback detection |
| Ethernet Ring Protection | ITU-T G.8032 Ethernet Ring Protection; sub 50 msec convergence; revertive operation mode; multiple-ring network |
| VLANs | Supports 4K VLANs; port-based VLANs; IEEE 802.1Q VLANs; GVRP; VLAN trunking; IEEE 802.1v protocol-based VLANs; IP subnet-based VLANs; MAC-based VLANs; traffic segmentation |
| L2 Virtual Private VLAN | Q-in-Q; L2 protocol tunneling (xSTP, CDP, VTP & PVST+); CDP/PVST+ filtering |
| Link Aggregation | Static trunk; IEEE 802.3ad Link Aggregation Control Protocol; 12 trunk groups, up to 8 10G / 2 40G ports per group; load balancing: SA+DA, SA, DA, SIP+DIP, SIP, DIP |
| MLAG | Yes |
| IGMP Snooping | IGMP v1/v2/v3 snooping; IGMP Proxy Reporting; IGMP Filtering; IGMP Throttling; IGMP Immediate Leave; IGMP Querier |
| MVR (Multicast VLAN Registration) | Supports 5 multicast VLANs |
| Port Mirroring | Port mirroring; remote port mirror (RSPAN) |
| QoS Features | |
| Priority Queues | 8 hardware queues per port |
| Traffic Classification | IEEE 802.1p CoS; IP Precedence; DSCP; MAC access control list (source/destination MAC, Ether type, priority ID / VLAN ID); IP standard access control list (source IP); IP extended access control list (source/destination IP, protocol, TCP/UDP port number) |
| Traffic Scheduling | Strict priority; Weighted Round Robin (WRR); Strict + WRR |
| Color Marking | Single / two rate three color marker |
| Policy Maps | Ingress policy map; egress policy map |
| Rate Limiting | Ingress and egress, per port base; 10G: resolution 64 Kbps ~ 10,000 Mbps |
| Auto Traffic Control | Yes |
| Security | |
| User Security for Enterprise | IEEE 802.1X port based and MAC based authentication; dynamic VLAN assignment, auto QoS; MAC authentication; Web authentication; Voice VLAN; Guest VLAN |
| User Security for ISP/MSO | DHCP Snooping; DHCP Option 82; IP Source Guard; PPPoE IA; L2/L3/L4 access control list; MAC access control list (source/destination MAC, Ether type, priority ID / VLAN ID); IP standard access control list (source IP); IP extended access control list (source/destination IP, protocol, TCP/UDP port number); IPv6 ACL |
| Network Security | Port security; Dynamic ARP Inspection (DAI); Denial of Service protection; CPU Guard; CPU/memory threshold and alarm |
| Management Security | Login security; RADIUS authentication, accounting and authorization; TACACS+ authentication, accounting and authorization; management interface access filtering (SNMP, Web, Telnet); SSH (v2.0) for secure Telnet; SSL for HTTPS; SNMPv3 |
| Routing | |
| Static Routing | IPv4 static route; IPv6 static route |
| IPv6 Features | |
| Protocol Stack | IPv4/IPv6 dual protocol stack |
| IPv6 Address Types | Unicast |
| Neighbor Discovery | Duplicate address; address resolution; unreachable neighbor detection |
| Configuration | Stateless auto-configuration; manual configuration |
| IPv6 Service Support | Remote IPv6 ping; IPv6 Telnet; IPv6 DNS Resolver; HTTP over IPv6; SNMP over IPv6; SSH over IPv6; IPv6 Syslog; IPv6 SNTP; IPv6 TFTP |
| IPv6 Security | RA Guard; IPv6 ND Snooping; MLD Snooping v1/v2; IPv6 Source Guard; DHCPv6 Snooping |
| Management | |
| Switch Management | CLI via console port or Telnet/SSH; Web management; SNMP v1, v2c, v3 |
| Firmware and Configuration | Firmware upgrade via TFTP/HTTP/FTP; multiple configuration files; configuration file upload/download via TFTP/HTTP/FTP server |
| RMON | Groups 1, 2, 3 and 9 |
| DHCP | DHCP client for IP address assignment; DHCP dynamic provision Option 66, 67 |
| Other Management Features | SNTP; event/error log; Syslog; SMTP; supports LLDP (802.1ab); sFlow v4, v5 |
| OAM | |
| OAM | IEEE 802.3ah link |
