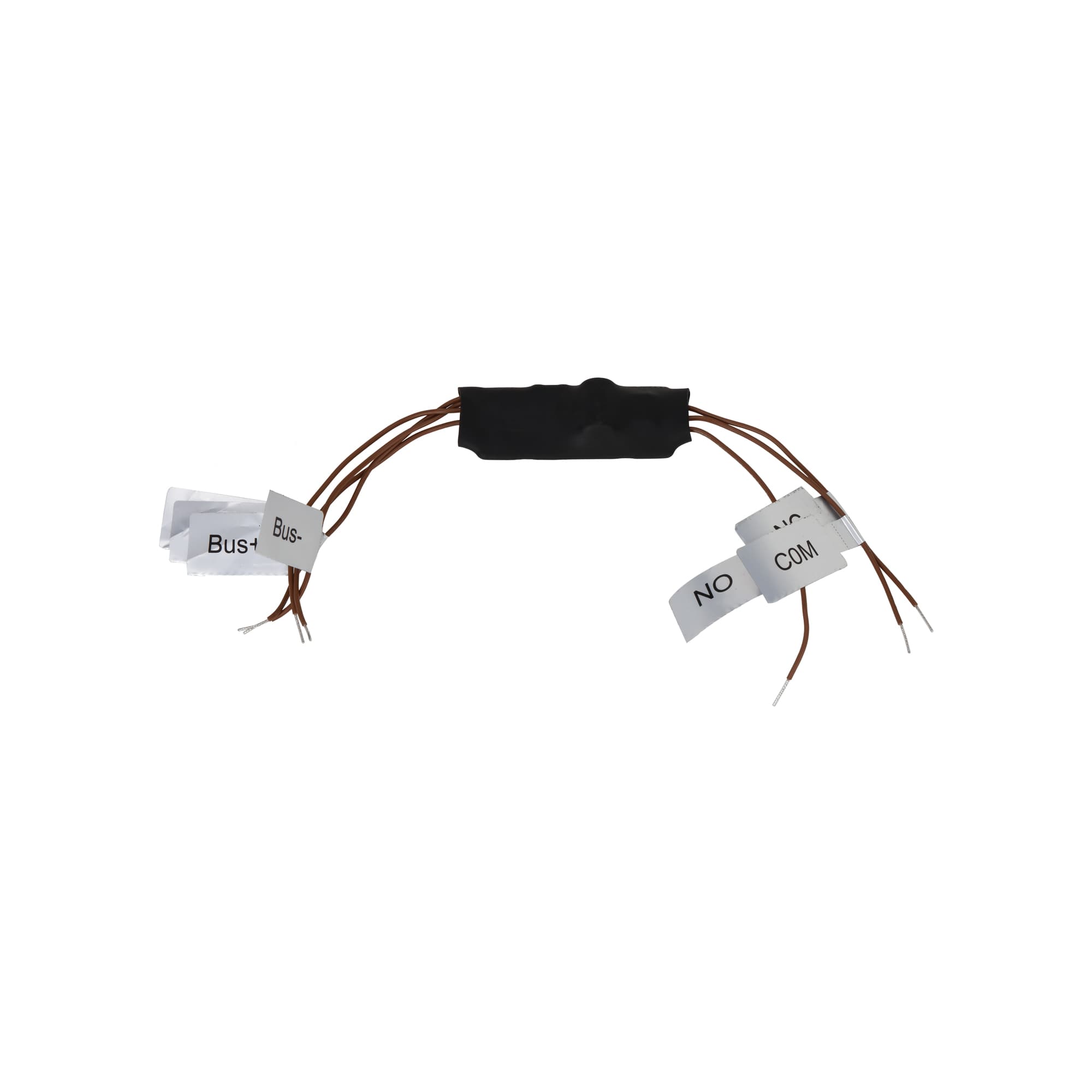

Adds 1 alarm input and 1 relay output to the M-Bus line.
An M-Bus expansion module that gives the alarm control panel both an input and an output. It carries 1 input and 1 relay output and communicates with the panel at 9600 bps. It runs a line up to 2.4 km long on RVV2 × 1.5 cable.
Input and outputAdds 1 alarm input and 1 relay output to the panel.
M-Bus lineConnects to the panel over the M-Bus protocol and moves data at 9600 bps.
Cable distanceReaches up to 2.4 km over RVV2 × 1.5 cable.
AddressingCarries an addressable code that separates it from other modules on the same line.
CompatibilityWorks with the ARC9016C-V3 alarm control panel.
Size and environmentThe 60.0 mm × 25.0 mm × 13.0 mm body operates between -10 °C and +55 °C.
