Adds 8 zones and 1 alarm output to an alarm panel.

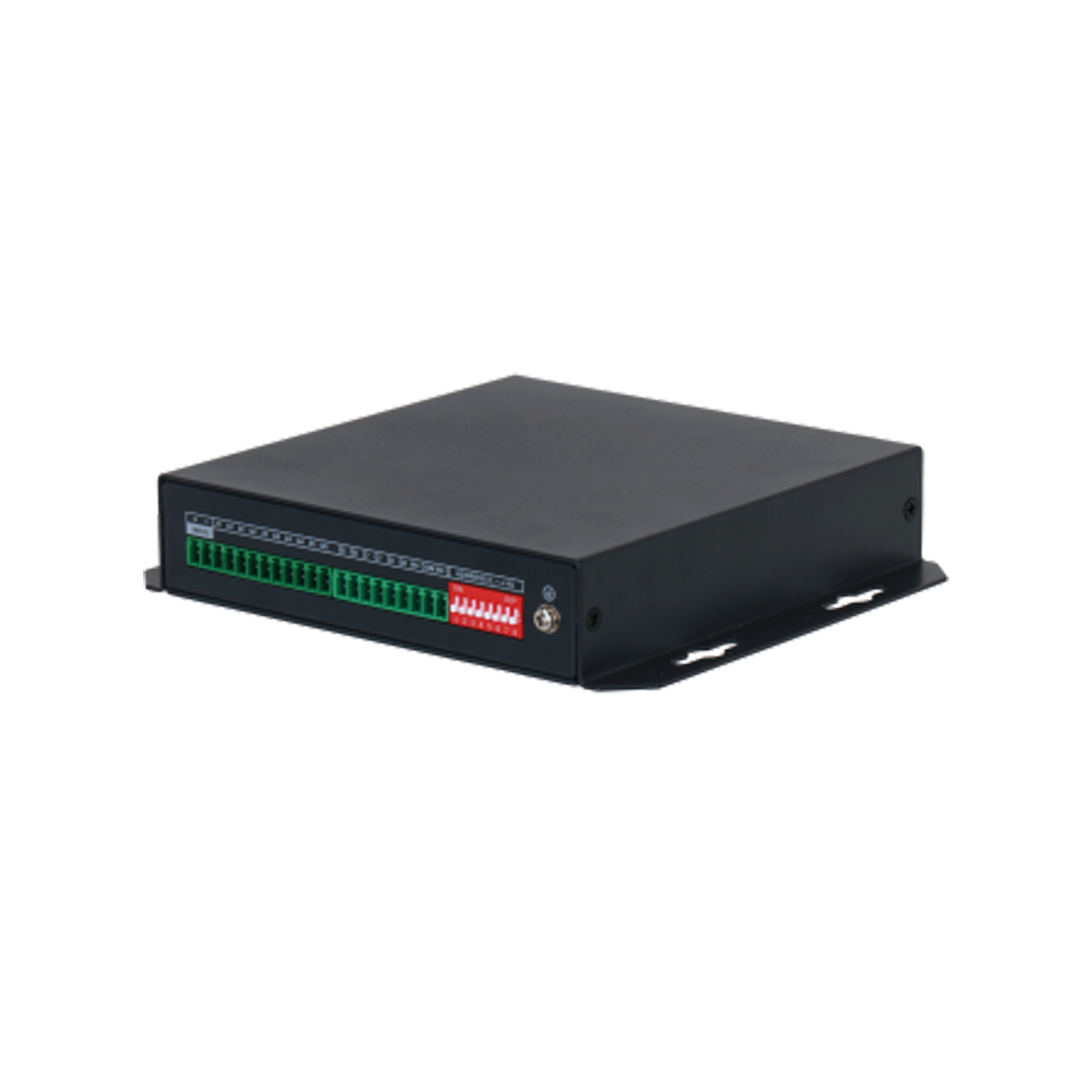

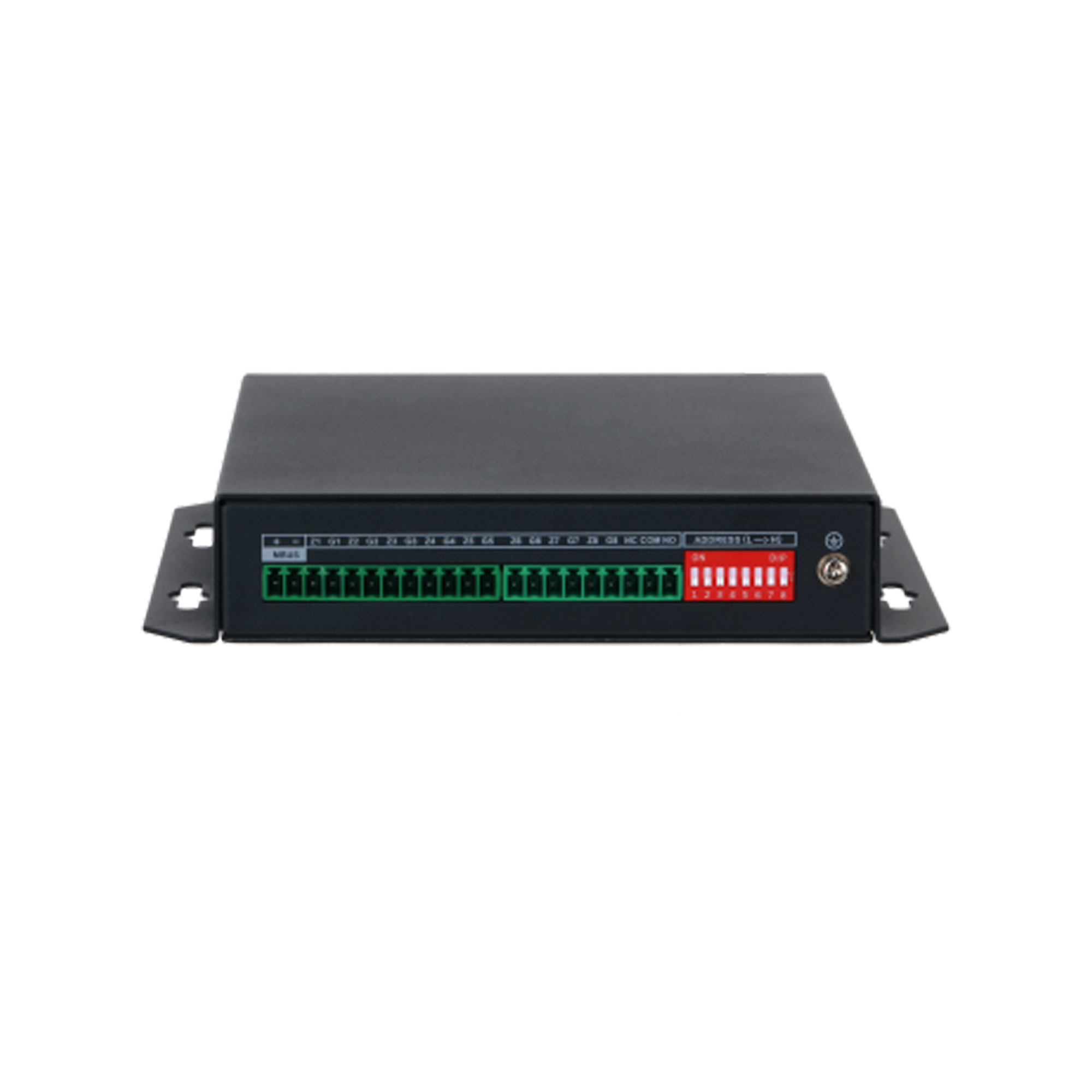

A wall-mounted M-Bus zone expansion module. It adds 8 zones and 1 alarm output channel to the alarm control panel, runs on 12 VDC, and consumes 2 W.
8 zonesZone expansion
1 channelAlarm output
M-BusCommunication Protocol
9600 bpsBaud Rate
12 VDCPower supply
Wall mountMounting Type
Key features
Zones and outputAdds 8 extra zones and 1 alarm output channel to the alarm control panel.
M-Bus lineConnects to the panel over the M-Bus protocol and moves data at 9600 bps.
PowerRuns on a 12 VDC supply voltage and consumes 2 W.
CompatibilityWorks with the ARC9016C-V3 alarm control panel.
InstallationThe 136 mm × 132 mm × 30 mm body mounts on the wall and weighs 0.6 kg.
